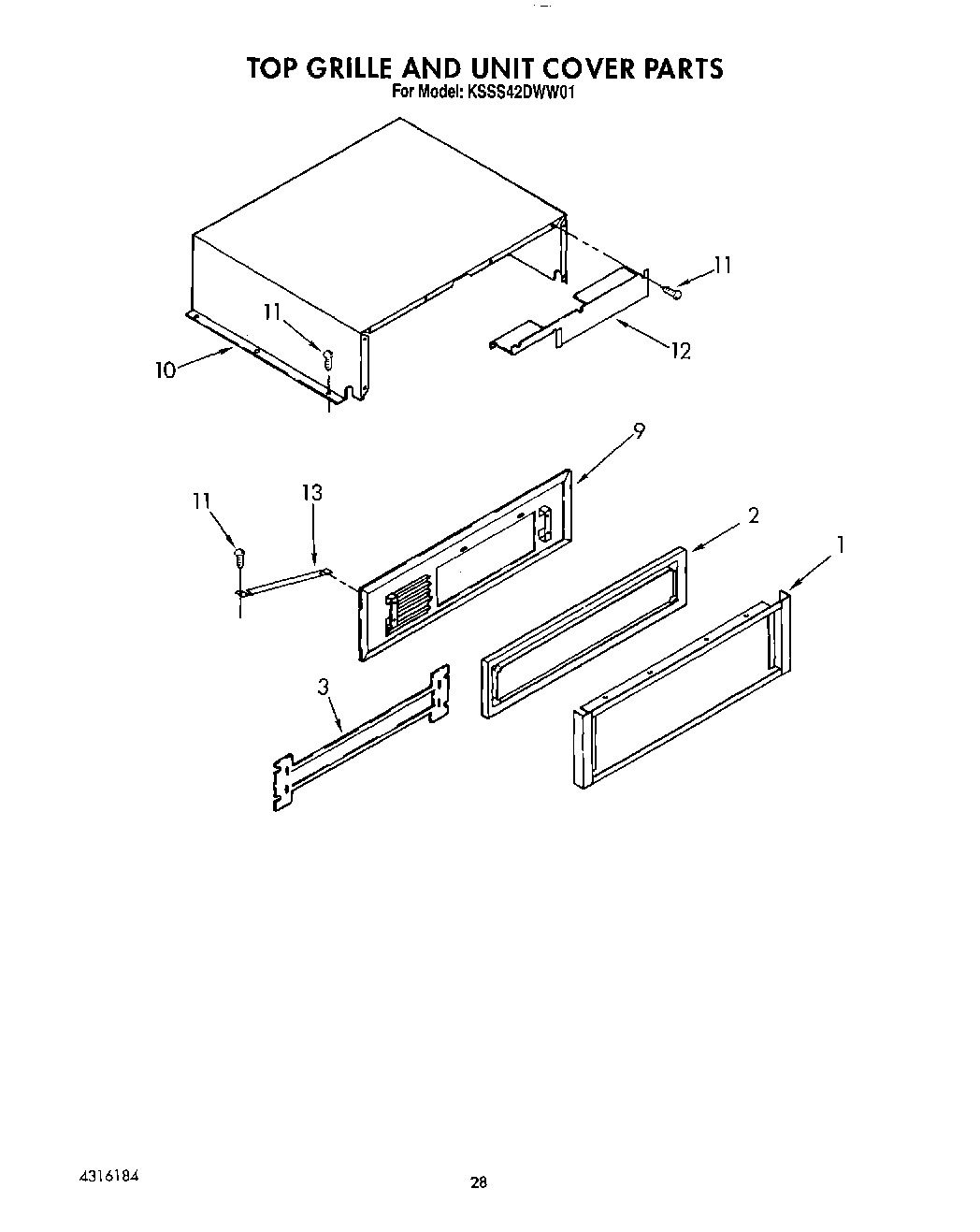

KSSS42DWW01 18 – TOP GRILLE AND UNIT COVER

KSSS42DWW01 18 – TOP GRILLE AND UNIT COVER

Written by

in

KSSS42DWW01 18 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Grille, Frame Assembly
2Decorative Panel Assembly
3Back Up Panel
9Top Grille Assembly
10Cover, Unit
11W11624204 Whirlpool Screw
12Cover, Component Assembly
13Brace, Panel (2)
