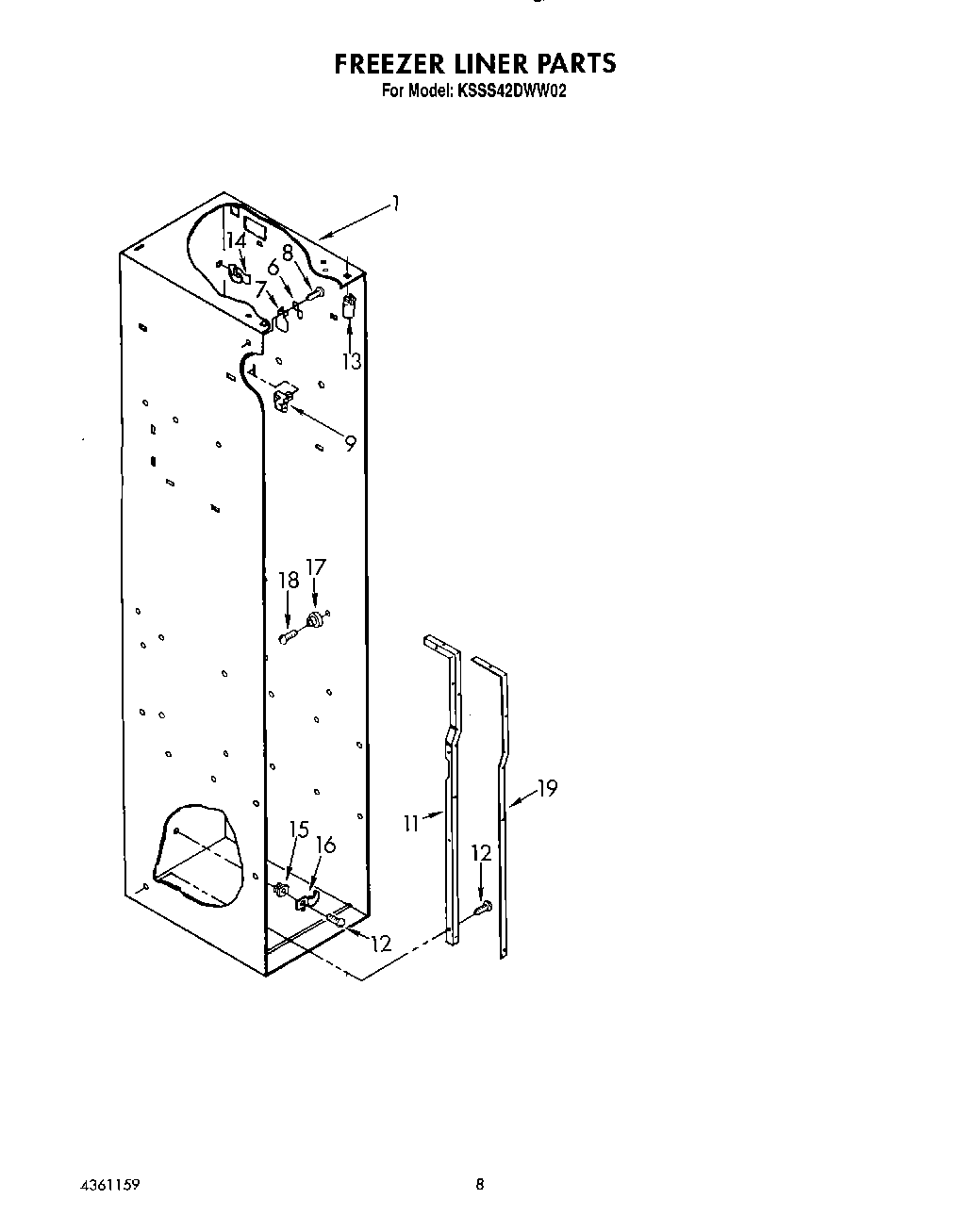

KSSS42DWW02 05 – FREEZER LINER

Written by

Products

Position	Product
1	Liner (Not A Serviceable Part)
6	Support Clip
7	Grommet, Screw (2)
8	SCREW
9	Support, Stud
11	Rail, Evaporator Cover (Right Side)
11	Rail, Evaporator Cover (Left Side)
12	W11624204 Whirlpool Screw
13	Spacer, Control Panel (3)
14	2215823 Whirlpool Refrigerator Clip
15	Grommet
16	1112260 Whirlpool EV Support
17	Stud
18	Screw
19	Gasket, Evaporator Cover (2)
