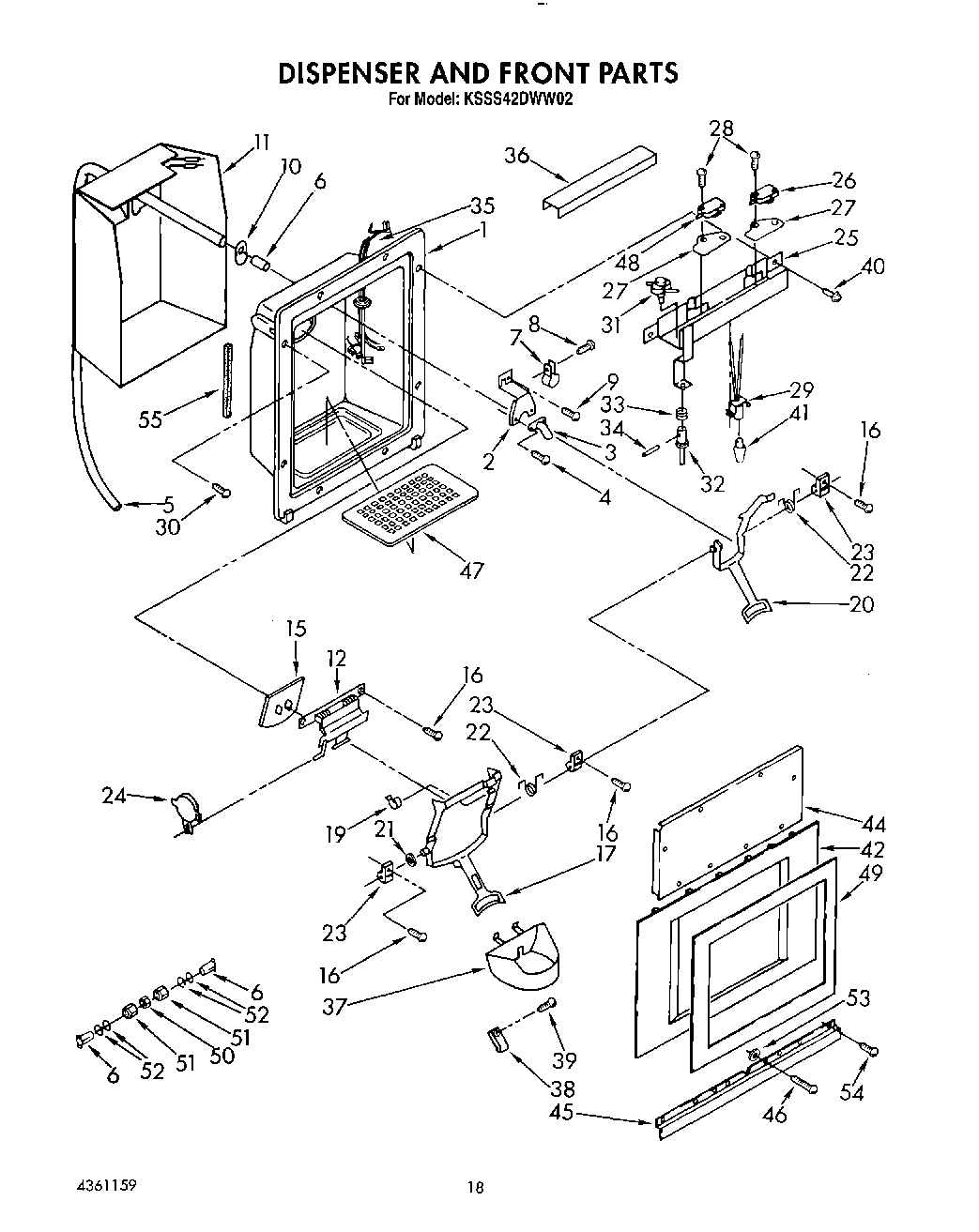

KSSS42DWW02 13 – DISPENSER AND FRONT

Products

Position	Product
1	Housing, Dispenser
2	Bracket, Water
3	WP4388152 Whirlpool Refrigerator Fitting
4	WP965173 Whirlpool Dishwasher Screw
5	W10823511 Whirlpool Refrigerator Water Tube
6	4387491 Whirlpool Refrigerator Insert
7	WP488878 Whirlpool Refrigerator Tube Clamp
8	WP488787 Whirlpool Refrigerator Screw
9	Screw, 8-18 x 3/4
10	Grommet
11	Heater, Ice Dispenser
12	Door Mechanism Assembly (Includes Item 9)
15	Door, Ice
16	WP3400906 Whirlpool Refrigerator Screw
17	Lever Assembly, Ice Dispenser (White)
19	Clip, Bearing (2)
20	Lever Assembly, Water Dispenser (White)
21	Washer
22	Spring, Lever (2)
23	Bearing, Lever (3)
24	WP1120581 Whirlpool Refrigerator Mechanism
25	Bracket, Control
26	Switch
27	Insulator, Switch (2)
28	Screw, 4-40 x 1
29	Socket, Lamp
30	WP489128 Whirlpool Refrigerator Screw
31	Switch, Light
32	Plunger, Extension
33	Spring, Plunger
34	Pin, Retainer
35	Wiring Harness, Door
36	Shield, Wiring
37	Guide, Ice (White)
38	Stop, Glass (White)
39	Screw
41	WP22002263 Whirlpool Dryer 10W Light Bulb
42	Front Cover, Housing
44	Cover, Dispenser Opening
45	Trim, Front (2)
46	WP488729 Whirlpool Refrigerator Door Screw
47	Grille, Overflow (White)
48	Switch (2)
49	Overlay, Cover
50	WP4211117 Whirlpool Refrigerator Connector
51	WP245183 Whirlpool Nut
52	``O`` Ring Seal (4)
53	W10903204 Whirlpool Refrigerator Washer
54	W10759522 Whirlpool Screw
55	Seal
