KSSS42DWX00 10 – FREEZER SHELF

KSSS42DWX00 10 – FREEZER SHELF

Written by

in

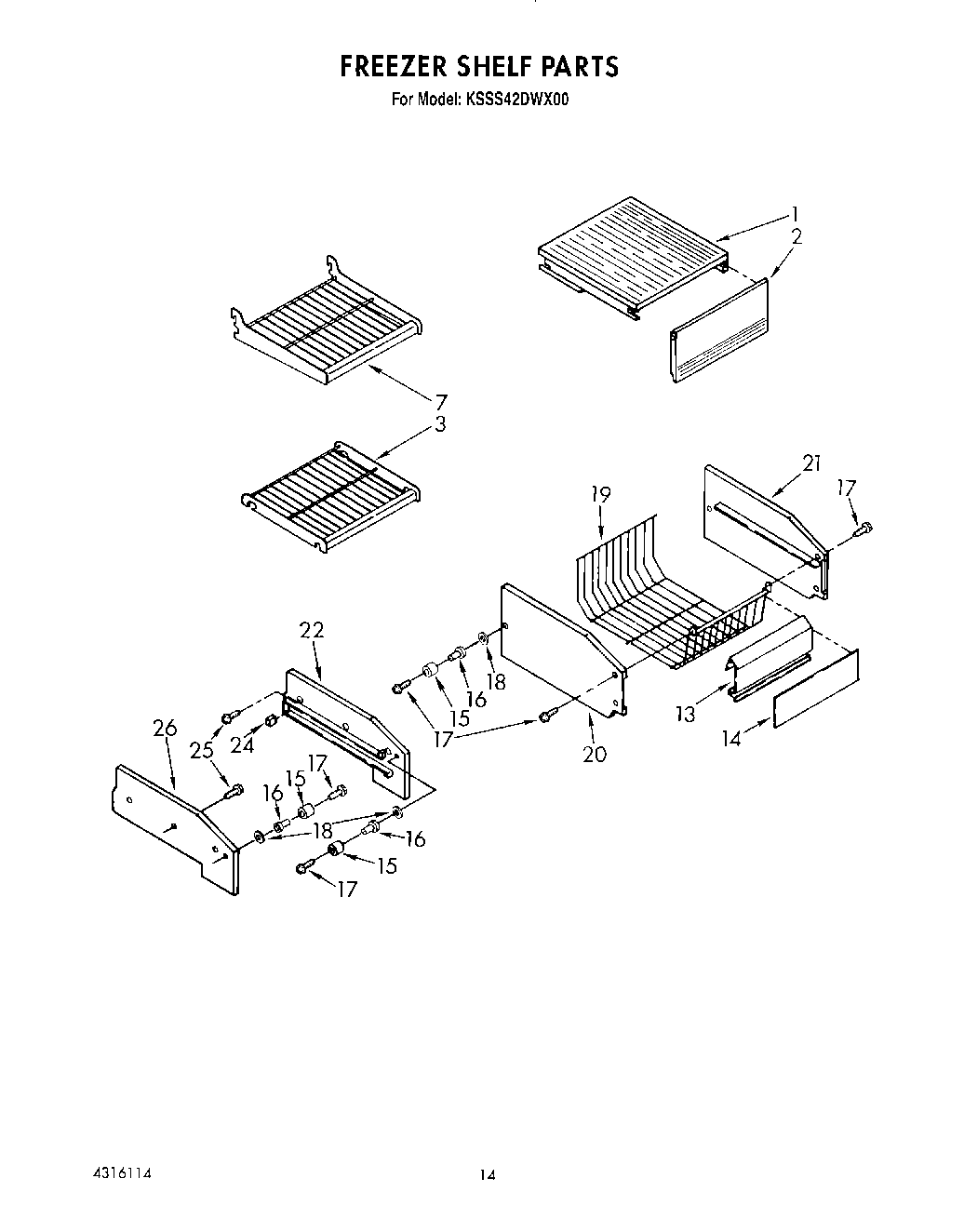

KSSS42DWX00 10 – FREEZER SHELF

Products

PositionProduct
1Solid Shelf
2Front, Ice Compartment
3Shelf, Deep
7Shelf, Cantilever
13Front, Basket
14Overlay, Front
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
18Washer
19Basket (Small)
20Side, Basket (Left Side)
21Side, Basket (Right Side)
22Basket Spacer, Right Side (2)
24Roller Stop
25W11624204 Whirlpool Screw
26Basket Spacer, Left Side (2)
