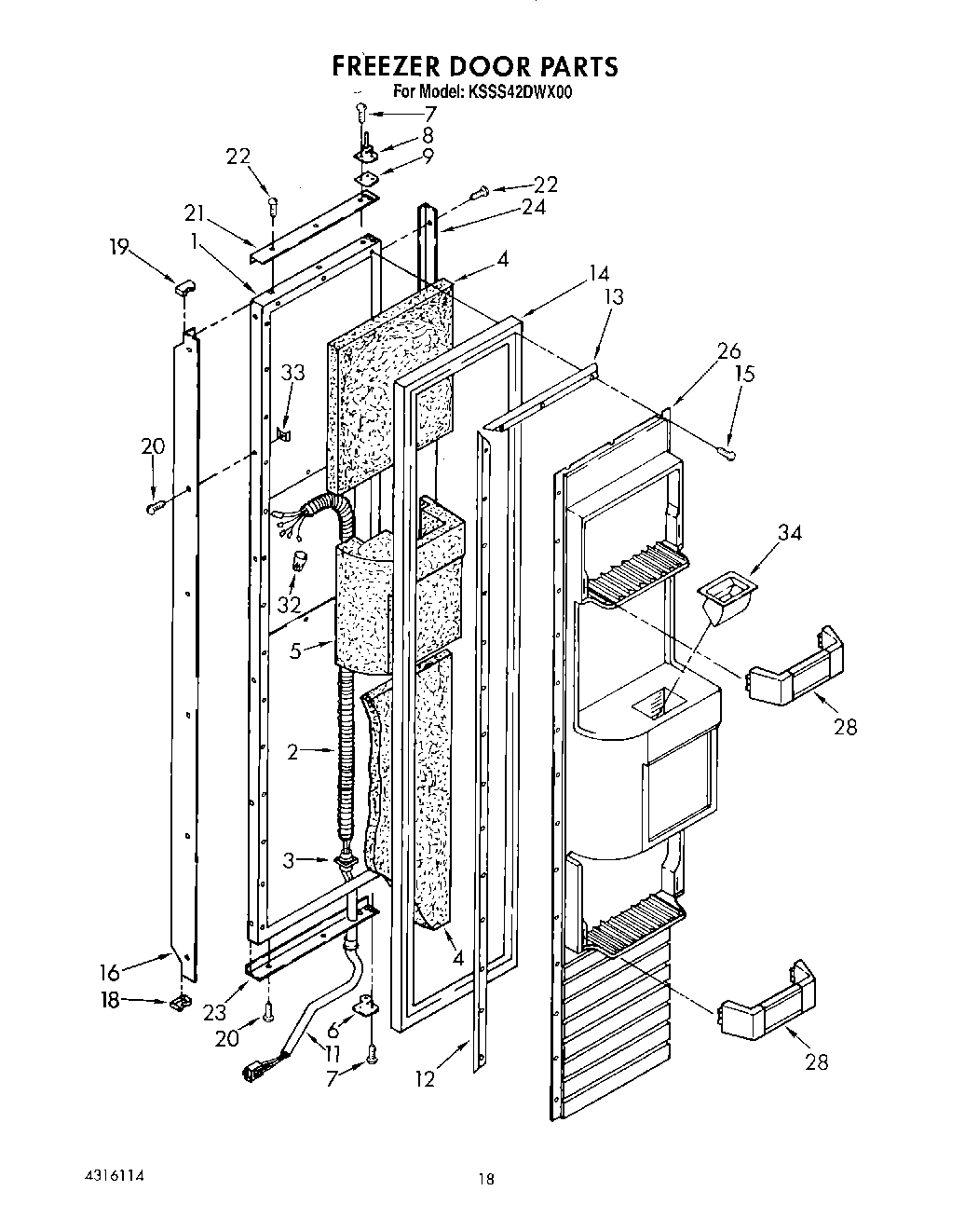

KSSS42DWX00 12 – FREEZER DOOR

Products

PositionProduct
1Exterior Door Panel, Freezer (Also Order Item 4)
2Tube, Wiring
3Retainer, Tube
4WPL 876029
5Insulation, Dispenser
6Hinge, Bottom L.S.
7W11474472 Whirlpool Screw
8Hinge, Top L.S.
9Spacer
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188496A Whirlpool Refrigerator Door Gasket
15WP489069 Whirlpool Compactor Screw
16Handle, Door
18End Cap (Bottom)
19End Cap (Top)
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top)
22Screw, 6-32 x 1/2
23Trim (Bottom)
24Trim (Side)
26Panel, Interior Door
28WP2003128 Whirlpool Shelf Bin
32Wire Connector
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
