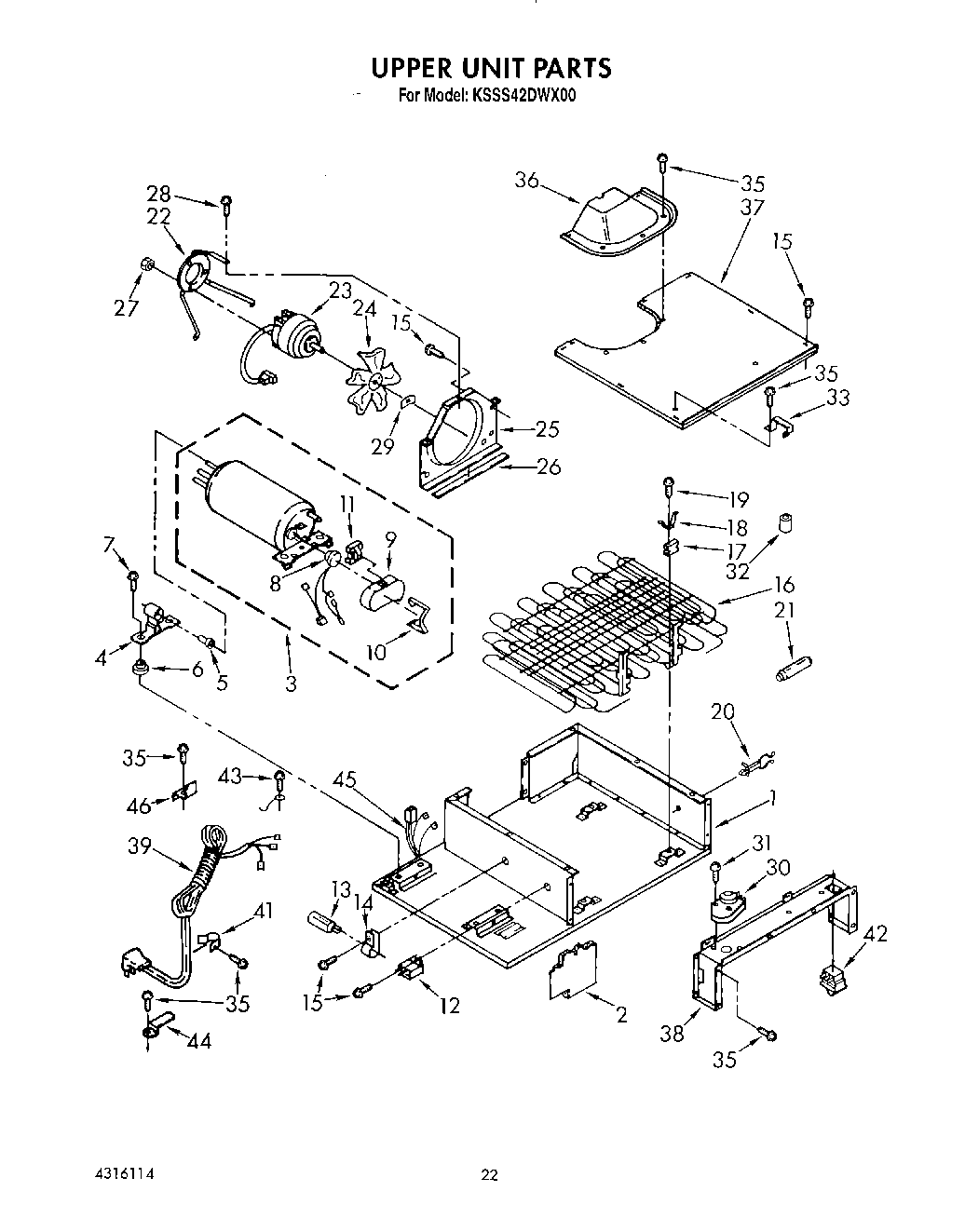

KSSS42DWX00 14 – UPPER UNIT, LIT/OPTIONAL

KSSS42DWX00 14 – UPPER UNIT, LIT/OPTIONAL

Written by

in

KSSS42DWX00 14 – UPPER UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT628107
	WPL LIT1113589
	WPL LIT2000144
	WPL LIT1113586
	WPL LIT2000492
	WPL LIT4316114
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	876765 Whirlpool Primary Mounting Kit Refrigerator
3	Compressor (Includes Items 8, 9, 10 & 11) (Also Order 876765 Tube Kit)
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload
9	Terminal Cover
10	Strap, Cover
11	Relay, (For Service Compressor Only)
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Capacitor, Start
14	Tube Clamp
15	Screw, 8 x 1/2 (3)
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
29	WP486692 Whirlpool Refrigerator Nut
30	Defrost Timer, (10 Hr.)
31	WP3388228 Whirlpool Screw
32	Sleeve, Condenser
33	Clamp, Tube (2)
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
39	Cord, Service
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	Wiring Harness, Unit Compartment
46	Top Grille Trim Kit (7-1/2“)
46	VALVE, ACCESS (5/8“)
46	978026 Whirlpool Refrigerator Primary Valve
46	Front Panel Kit (Almond)
46	Front Panel Kit (Stainless Steel)
46	Front Panel Kit (Black)
46	978027 Whirlpool Refrigerator Primary Valve
46	978030 Whirlpool Refrigerator Valve
46	Front Panel Kit (White)
46	WP978025 Whirlpool Refrigerator Valve
46	Stop
46	VALVE, ACCESS (1/2“)
46	876764 Whirlpool Refrigerator Primary Valve
46	Black Acrylic Static Cleaner
46	Top Grille Trim Kit (8“)
