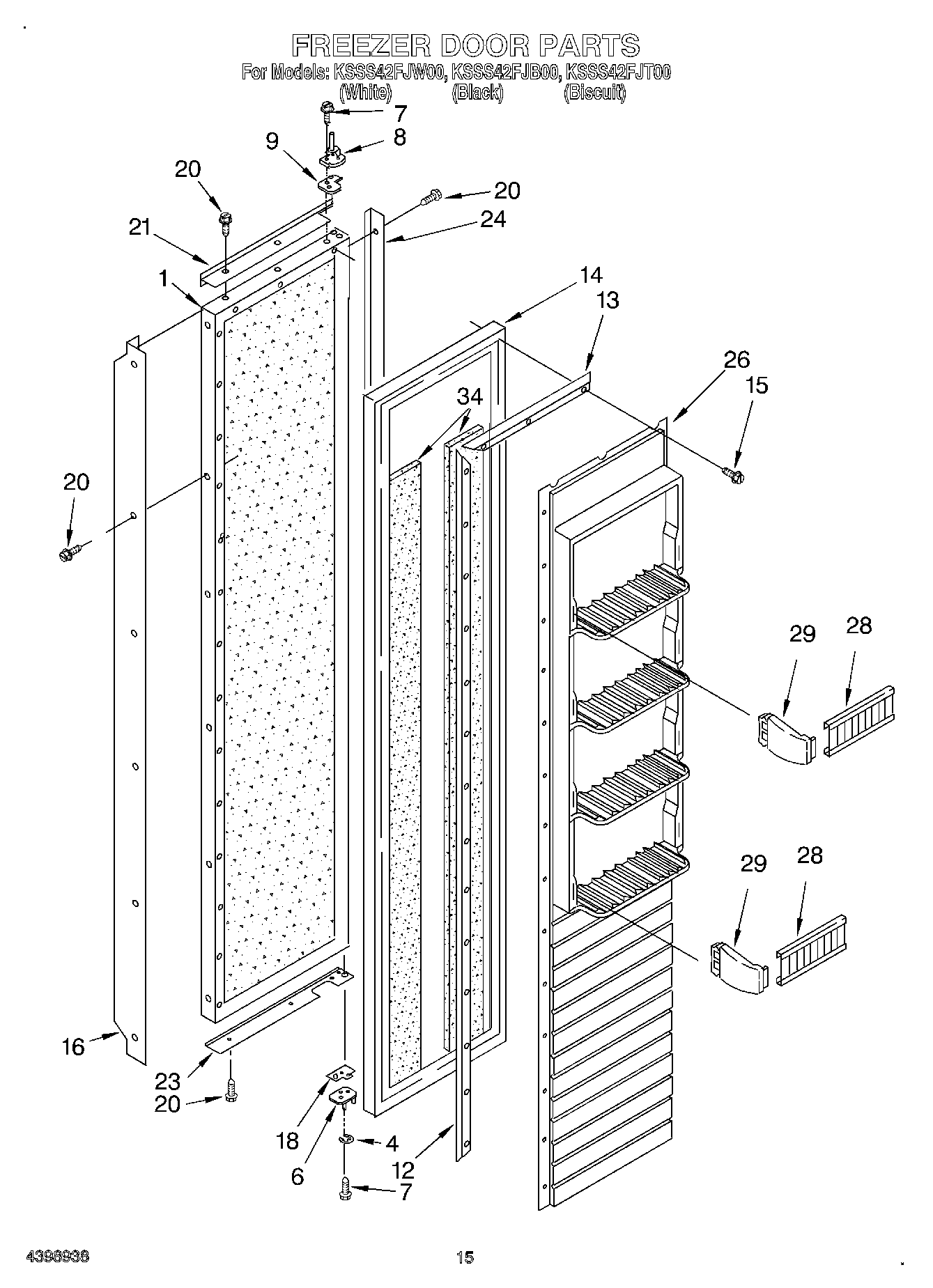

KSSS42FJB00 11 – FREEZER DOOR

KSSS42FJB00 11 – FREEZER DOOR

Written by

in

KSSS42FJB00 11 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
4Retaining Ring, Door-Closure
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer-Hinge, Top
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188318A Whirlpool Refrigerator Door Gasket
15W11624204 Whirlpool Screw
16Handle, Door (Black)
16Handle, Door (Biscuit)
16Handle, Door (White)
18Door, Spacer
20Screw (White)
20Screw (Biscuit)
20Screw
21Trim (Top) (White)
21Trim (Top) (Biscuit)
21Trim (Top) (Black)
23Trim (Bottom) (Black)
23Trim (Bottom) (Biscuit)
23Trim (Bottom) (White)
24Trim (Side) (White)
24Trim (Side) (Biscuit)
24Trim (Side) (Black)
26Panel, Interior Door
28Shelf Bin
29Trim, End Cap (Right Side)
29Trim, Endcap (Left Side)
34Seal
