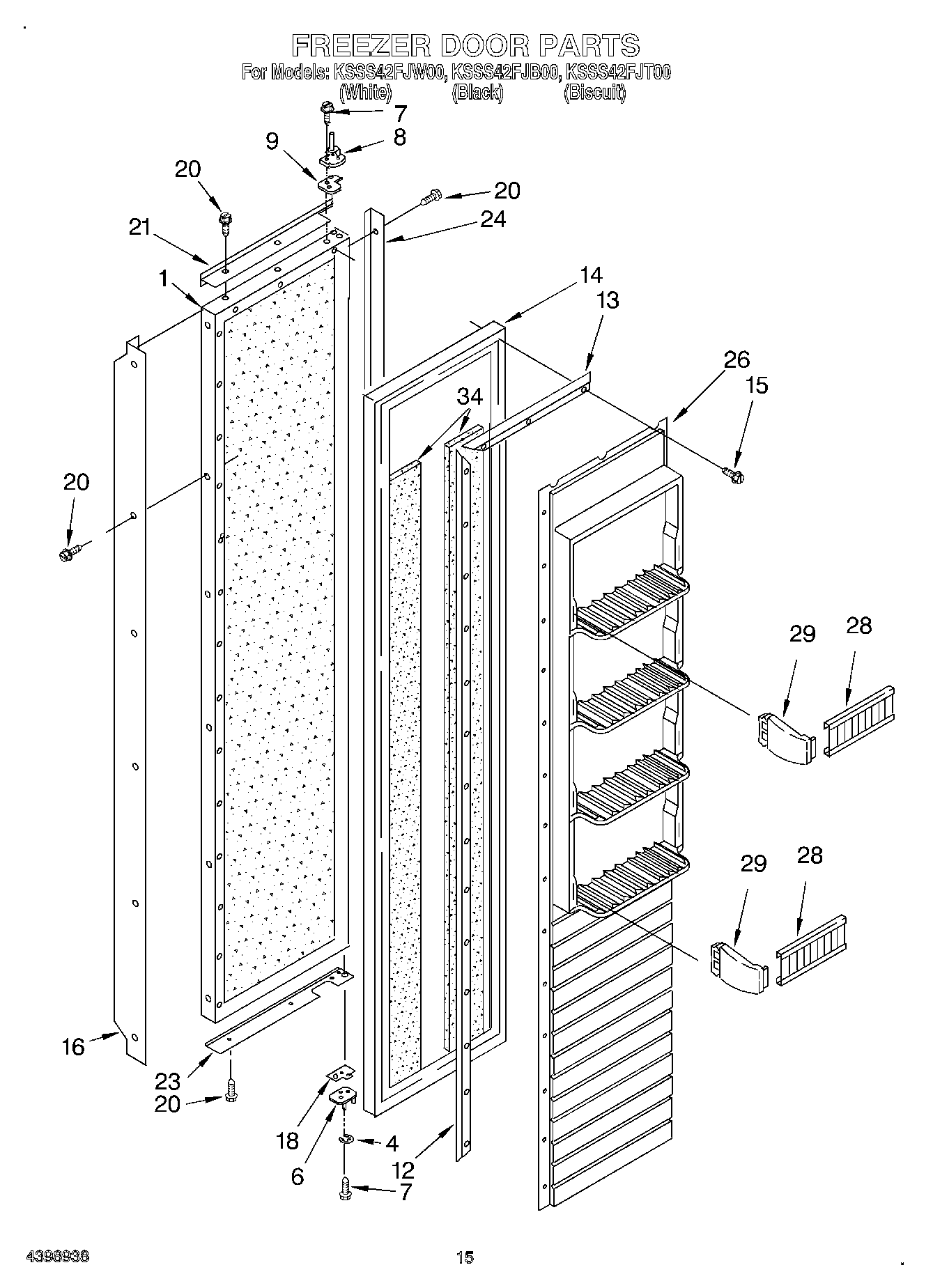

KSSS42FJT00 11 – FREEZER DOORadmin2025-04-26T12:12:06+00:00KSSS42FJT00 11 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) |
| 4 | Retaining Ring, Door-Closure |
| 6 | Hinge, Bottom |
| 7 | W11474472 Whirlpool Screw |
| 8 | Hinge, Top |
| 9 | Spacer-Hinge, Top |
| 12 | Gasket Retainer, Side (2) |
| 13 | Gasket Retainer, Top & Bottom |
| 14 | 2188318A Whirlpool Refrigerator Door Gasket |
| 15 | W11624204 Whirlpool Screw |
| 16 | Handle, Door (Black) |
| 16 | Handle, Door (Biscuit) |
| 16 | Handle, Door (White) |
| 18 | Door, Spacer |
| 20 | Screw (White) |
| 20 | Screw (Biscuit) |
| 20 | Screw |
| 21 | Trim (Top) (White) |
| 21 | Trim (Top) (Biscuit) |
| 21 | Trim (Top) (Black) |
| 23 | Trim (Bottom) (Black) |
| 23 | Trim (Bottom) (Biscuit) |
| 23 | Trim (Bottom) (White) |
| 24 | Trim (Side) (White) |
| 24 | Trim (Side) (Biscuit) |
| 24 | Trim (Side) (Black) |
| 26 | Panel, Interior Door |
| 28 | Shelf Bin |
| 29 | Trim, End Cap (Right Side) |
| 29 | Trim, Endcap (Left Side) |
| 34 | Seal |
