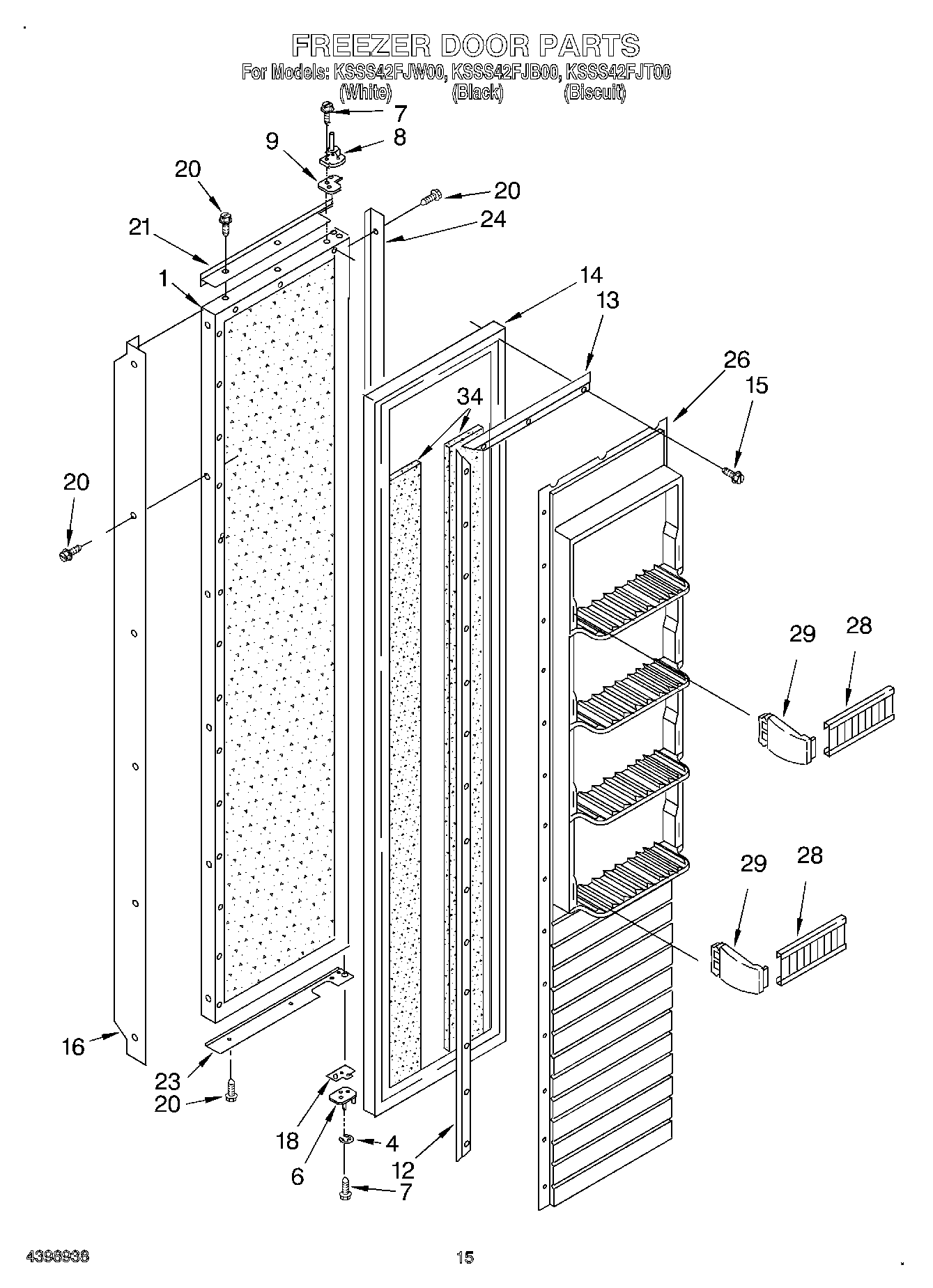

KSSS42FJW00 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188318A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (Black)
16	Handle, Door (Biscuit)
16	Handle, Door (White)
18	Door, Spacer
20	Screw (White)
20	Screw (Biscuit)
20	Screw
21	Trim (Top) (White)
21	Trim (Top) (Biscuit)
21	Trim (Top) (Black)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Biscuit)
23	Trim (Bottom) (White)
24	Trim (Side) (White)
24	Trim (Side) (Biscuit)
24	Trim (Side) (Black)
26	Panel, Interior Door
28	Shelf Bin
29	Trim, End Cap (Right Side)
29	Trim, Endcap (Left Side)
34	Seal
