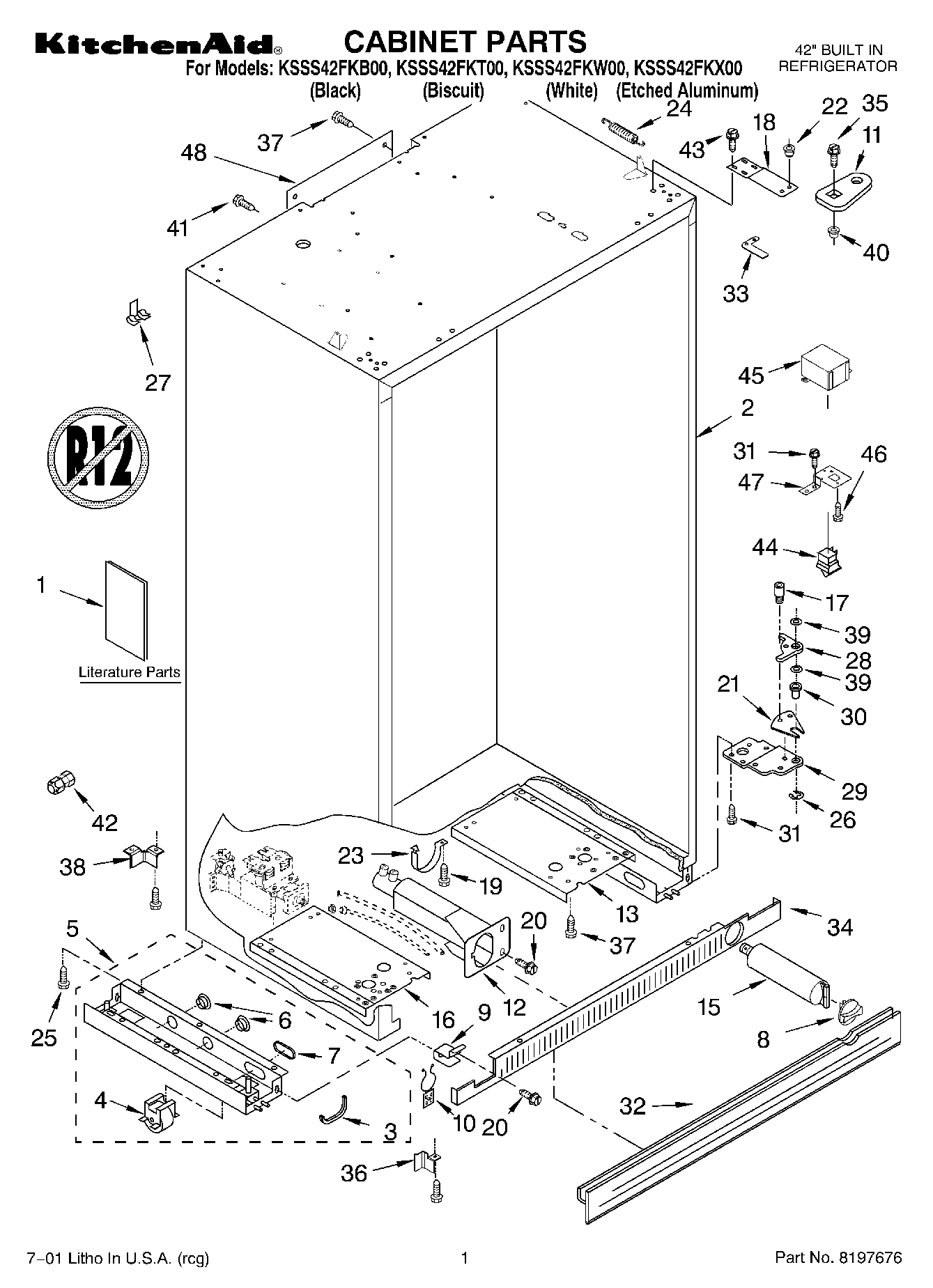

KSSS42FKB00 01 – CABINET, LITERATURE
Written by
in
KSSS42FKB00 01 – CABINET, LITERATURE
Products
Position
Product
1
Literature Parts (Energy Label)
1
Literature Parts (Service & Wiring Sheet)
1
Literature Parts (Use & Care Guide)
1
Modular Icemaker Service Sheet
1
Literature Parts (Installation Instructions)
2
Cabinet (Not A Serviceable Part)
3
Grommet, Crossover Tube
4
WPW10138054 Whirlpool Refrigerator Cabinet Roller
5
W10860229 Whirlpool Refrigerator Support
5
W10860448 Whirlpool Refrigerator Support
6
Grommet, Wiring
7
Grommet, Flexible
8
WP2186494W Whirlpool Water Filter Cap
8
WP2186494B Whirlpool Refrigerator Filter Cap
8
WP2186494T Whirlpool Water Filter Cap
9
Mounting Bracket, Grill
10
Clip, Wire
11
Cam-Closer, Door
12
WP2209022 Whirlpool Refrigerator Housing
13
Support, Bottom (Right Side)
15
EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
16
Support, Bottom (Left Side)
17
WP2005378 Whirlpool Refrigerator Screw
18
2257644 Whirlpool Refrigerator Door Hinge
19
WP489478 Whirlpool Refrigerator Screw
20
WP489464 Whirlpool Refrigerator Screw
21
WP2004994 Whirlpool Refrigerator Hinge Bushing
22
Bushing
23
Clamp, Filter Housing
24
WP2004517 Whirlpool Refrigerator Spring
25
W11624204 Whirlpool Screw
26
WP489236 Whirlpool Refrigerator Ring
27
Fastener (3)
28
Gap, Cover Assembly (Bottom)
29
WP2006780 Whirlpool Refrigerator Door Hinge
29
W10527053 Whirlpool Refrigerator Door Hinge
30
WP2302876 Whirlpool Refrigerator Hinge Bushing
32
Skirt-Grille, Bottom (Biscuit)
32
SKIRT, GRILLE (BOTTOM)
32
Skirt-Grille, Bottom (White)
33
Arm, Extensio
34
WPL 2209428W
34
WPL 2209428T
34
Grille, Bottom Front
35
Screw
36
2006616 Whirlpool Refrigerator Bracket
36
2006556 Whirlpool Refrigerator Bracket
37
WP489069 Whirlpool Compactor Screw
38
2006617 Whirlpool Refrigerator Bracket
39
WP2006346 Whirlpool Refrigerator Washer
40
WP2316859 Whirlpool Refrigerator Bushing
41
WP1163283 Whirlpool Air Conditioner Screw
42
WP4318044 Whirlpool Refrigerator Connector
43
WP8204624 Whirlpool Bolt
44
W11457217 Whirlpool Refrigerator Rocker Switch Combination
44
W11384469 Whirlpool Door Switch
45
2215938 Whirlpool Refrigerator Switch Cover
46
WP965173 Whirlpool Dishwasher Screw
47
Bracket, Switch
47
WPL 2215937
48
WPL 2209449
←
