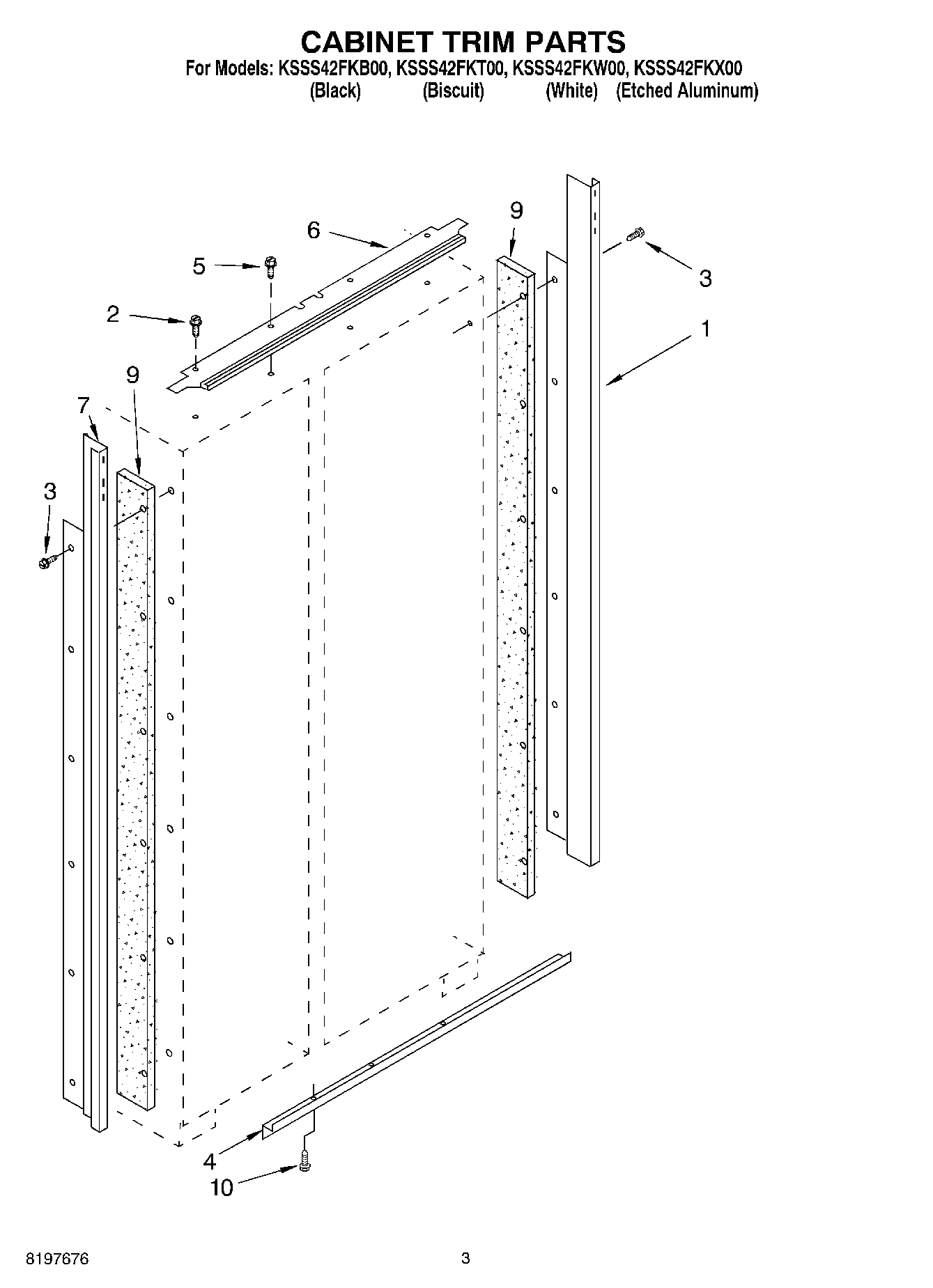

KSSS42FKT00 02 – CABINET TRIM

KSSS42FKT00 02 – CABINET TRIM

Written by

in

KSSS42FKT00 02 – CABINET TRIM

Products

PositionProduct
1Cabinet, Trim (Right Side) (Black)
1Cabinet, Trim Right Side (Etched Aluminum)
1Cabinet, Trim (Right Side) (White)
1Cabinet, Trim (Right Side) (Biscuit)
2Screw
3Screw 8-15 x 1/2 (Biscuit)
3Screw 8-15 x 1/2 (White)
3WP8281250 Whirlpool Refrigerator Screw
3W10851443 Whirlpool Refrigerator Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Cabinet Trim (Left Side) (Biscuit)
7Cabinet Trim (Left Side) (White)
7Cabinet Trim (Left Side) (Black)
7Cabinet Trim (Left Side) (Etched Aluminum)
9Seal, Side Trim
10WP489464 Whirlpool Refrigerator Screw
