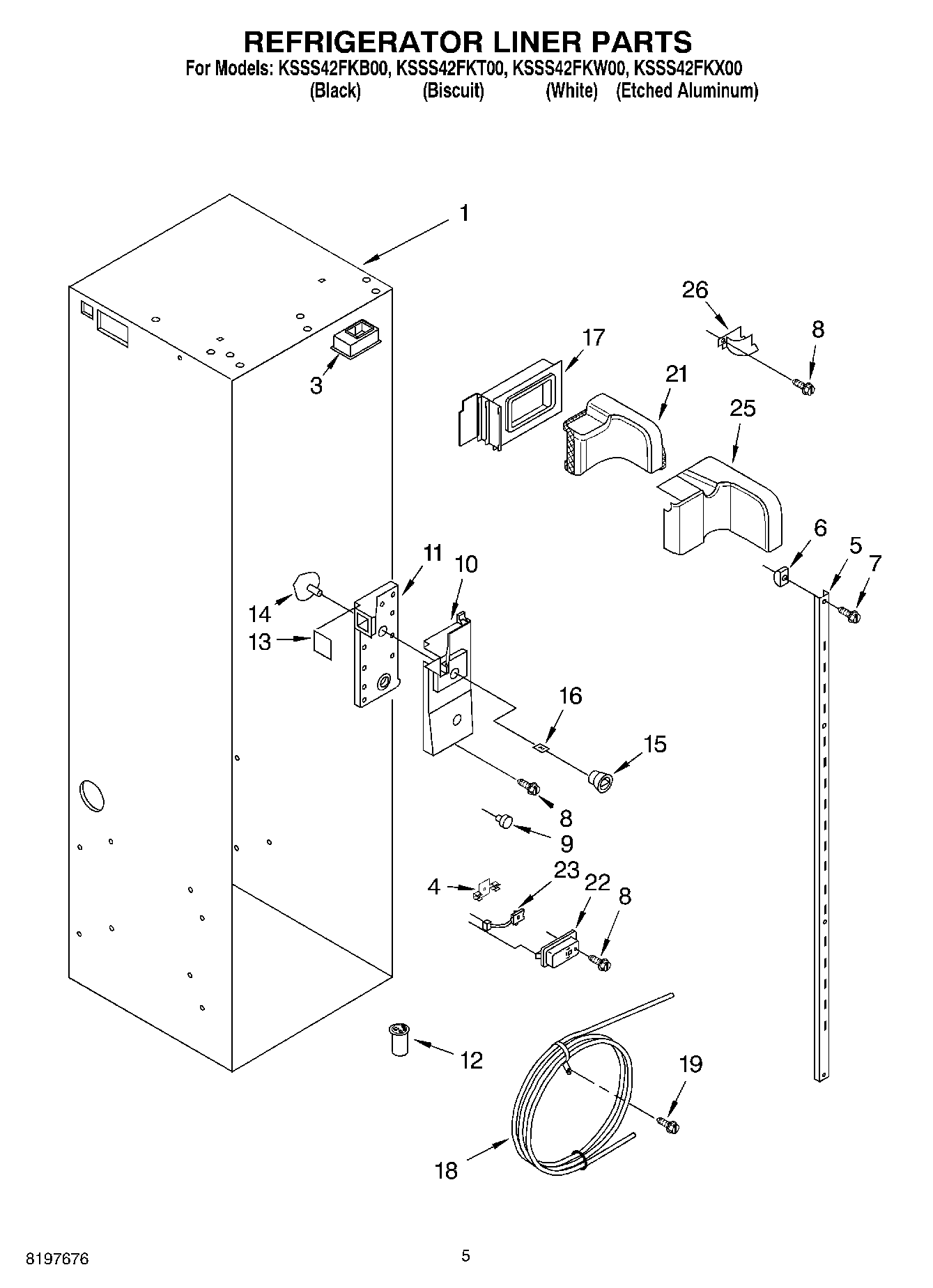

KSSS42FKT00 04 – REFRIGERATOR LINER

KSSS42FKT00 04 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
32208970 Whirlpool Refrigerator Air Duct
4Clip, Thermistor
5Ladder, Shelf (2)
6520965 Whirlpool Refrigerator Support
7Screw, 8 x 1-1/4 (3)
8W11624204 Whirlpool Screw
9Hole Plug
10Meat Pan, Air Duct Cover
11Meat Pan, Air Duct
12Release Valve
13Seal, Air Duct
14Damper Control, Meat Pan
15Control Knob, Meat Pan
16Retainer, Knob
17Air Baffle Assembly
18WP2256126 Whirlpool Refrigerator Reservoir
19Screw (2)
21Diffuser Assembly
221116793 Whirlpool Refrigerator Cover
23WP2188820 Whirlpool Refrigerator Thermistor
252309087 Whirlpool Refrigerator Cover
262003577 Whirlpool Refrigerator Guard
