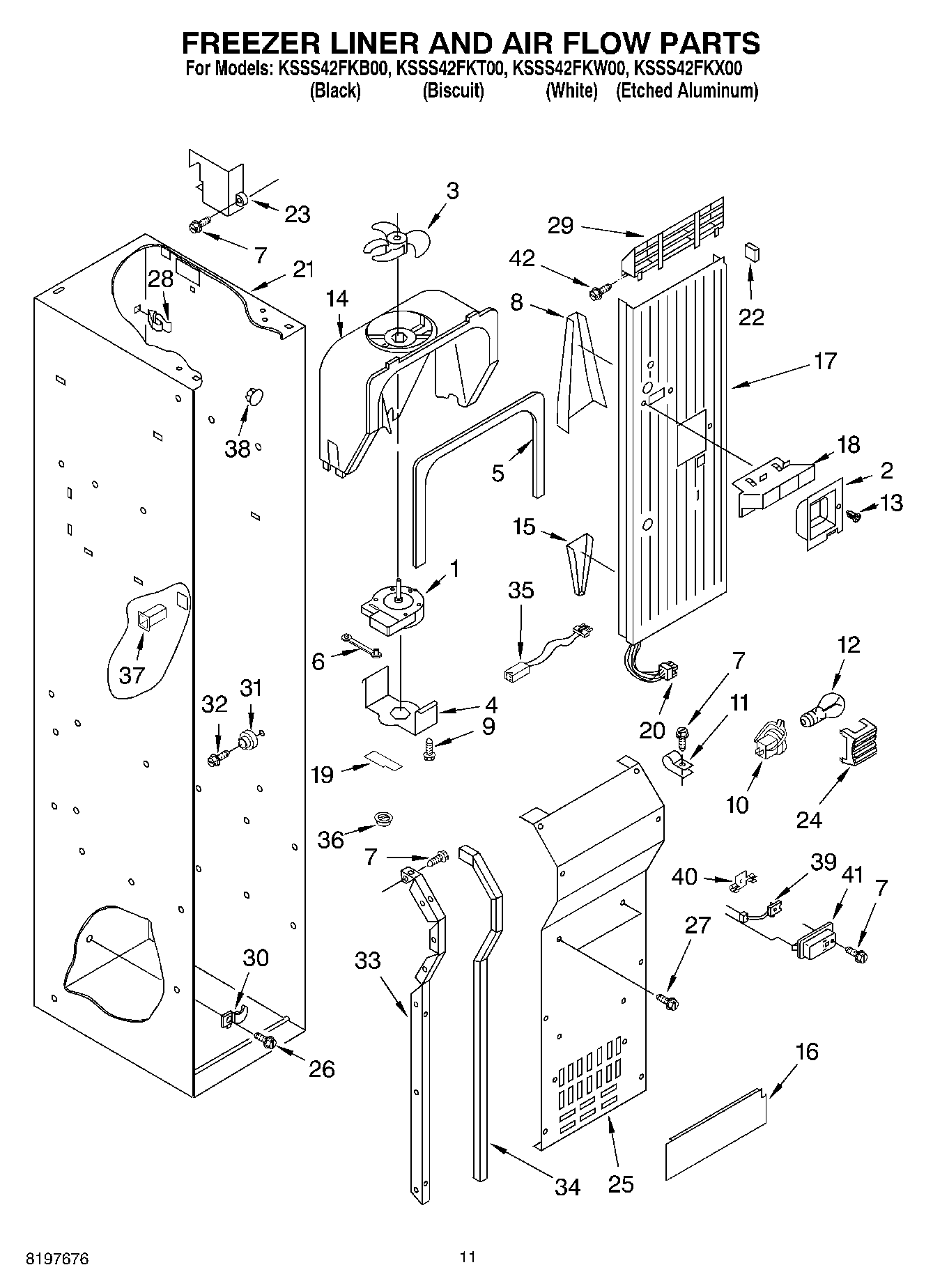

KSSS42FKT00 08 – FREEZER LINER AND AIR FLOW

KSSS42FKT00 08 – FREEZER LINER AND AIR FLOW

Written by

in

KSSS42FKT00 08 – FREEZER LINER AND AIR FLOW

Products

PositionProduct
18201589 Whirlpool Refrigerator Evaporator Motor
2Cup, Clearance
3WP2169142 Whirlpool Fan Blade
4WP2155590 Whirlpool Refrigerator Retainer
5WP2155789 Whirlpool Refrigerator Gasket
68201663 Whirlpool Refrigerator Primary Fan Blade
8Deflector, Air Duct
9WP489128 Whirlpool Refrigerator Screw
104387478 Whirlpool Refrigerator Light Socket
11Clamp, Tube
12W10887190 Whirlpool Refrigerator Light Bulb
13Fastener (3)
14WP2182120 Whirlpool Refrigerator Scroll Fan
15Deflector, Air Duct
162215612 Whirlpool Refrigerator Duct Cover
17Assembly, Air Duct
182182146 Whirlpool Refrigerator Duct
192209066 Whirlpool Refrigerator Fan Block
198201798 Whirlpool Refrigerator Fan Block
20Harness, Wire
21Liner (Not A Serviceable Part)
22Gasket, Air Baffle
23Cover, Air Outlet
24Light Shield
25Cover, Evaporator
26W11624204 Whirlpool Screw
27WP488729 Whirlpool Refrigerator Door Screw
282215823 Whirlpool Refrigerator Clip
29Diffuser, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WP3400806 Whirlpool Screw
33Evaporator, Cover Rail (Left Side)
33Evaporator, Cover Rail (Right Side)
342220904 Whirlpool Refrigerator Gasket
35Wire, Jumper
36WP2210509 Whirlpool Refrigerator Tub Valve
37Tube, Meat Pan
38WP941839 Whirlpool Refrigerator Button Plug
39WP2188820 Whirlpool Refrigerator Thermistor
40Clip, Thermistor
411116793 Whirlpool Refrigerator Cover
42WP488163 Whirlpool Refrigerator Screw
