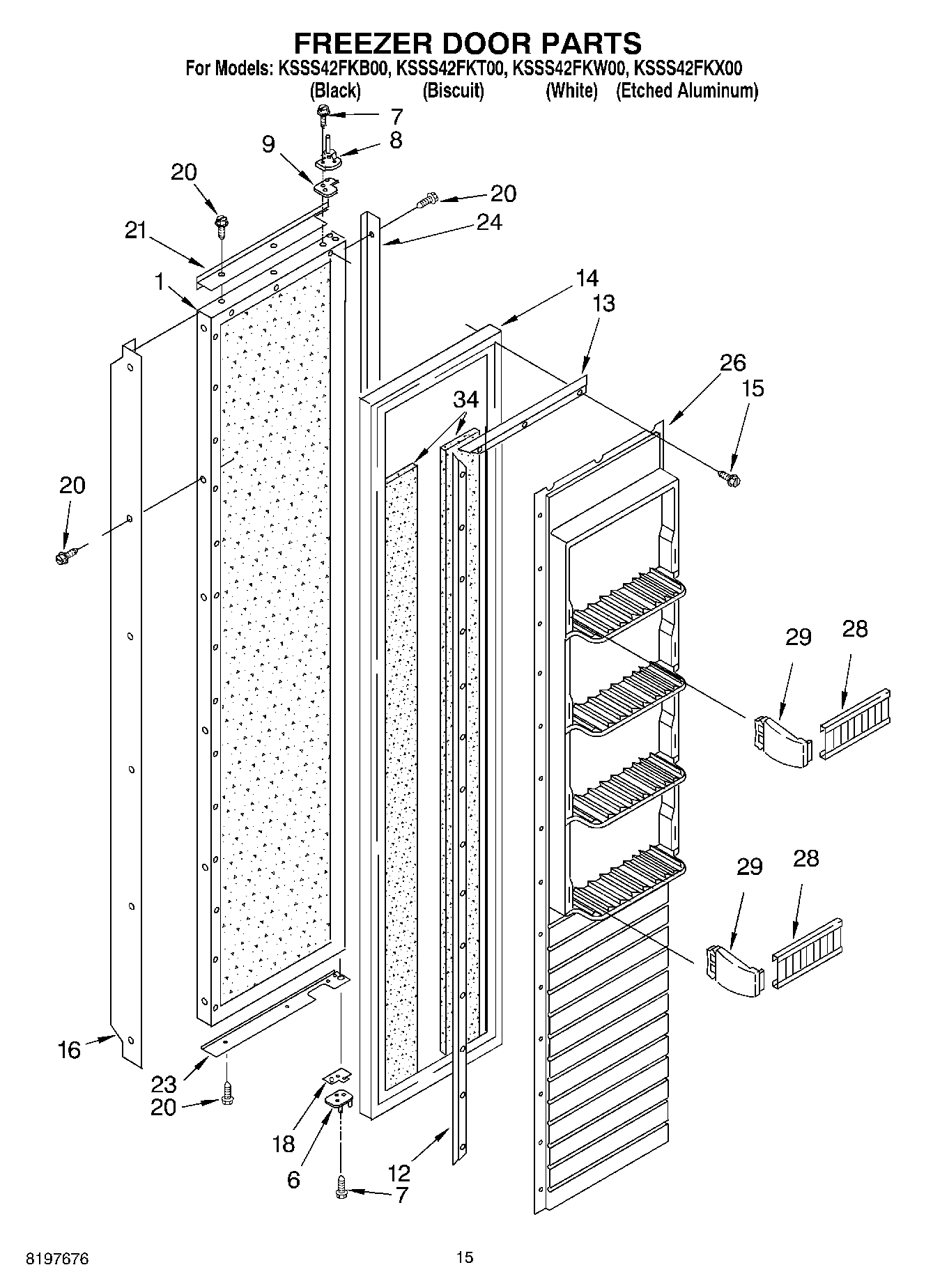

KSSS42FKT00 10 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188496A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (White)
16	Handle, Door (Biscuit)
16	Handle, Door (Black)
16	Handle, Door (Etched Aluminum)
18	Door, Spacer
20	W10851443 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (Biscuit)
20	Screw 8-15 x 1/2 (White)
20	WP8281250 Whirlpool Refrigerator Screw
21	Trim (Top) (Black)
21	Trim (Top) (White)
21	2005020 Whirlpool Refrigerator Door Trim
21	Trim (Top) (Biscuit)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Biscuit)
23	Trim (Bottom) (White)
24	Trim (Side) (White)
24	Trim (Side) (Biscuit)
24	Trim (Side) (Etched Aluminum)
24	Trim (Side) (Black)
26	Panel, Interior Door
28	Shelf Bin
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
34	Seal
