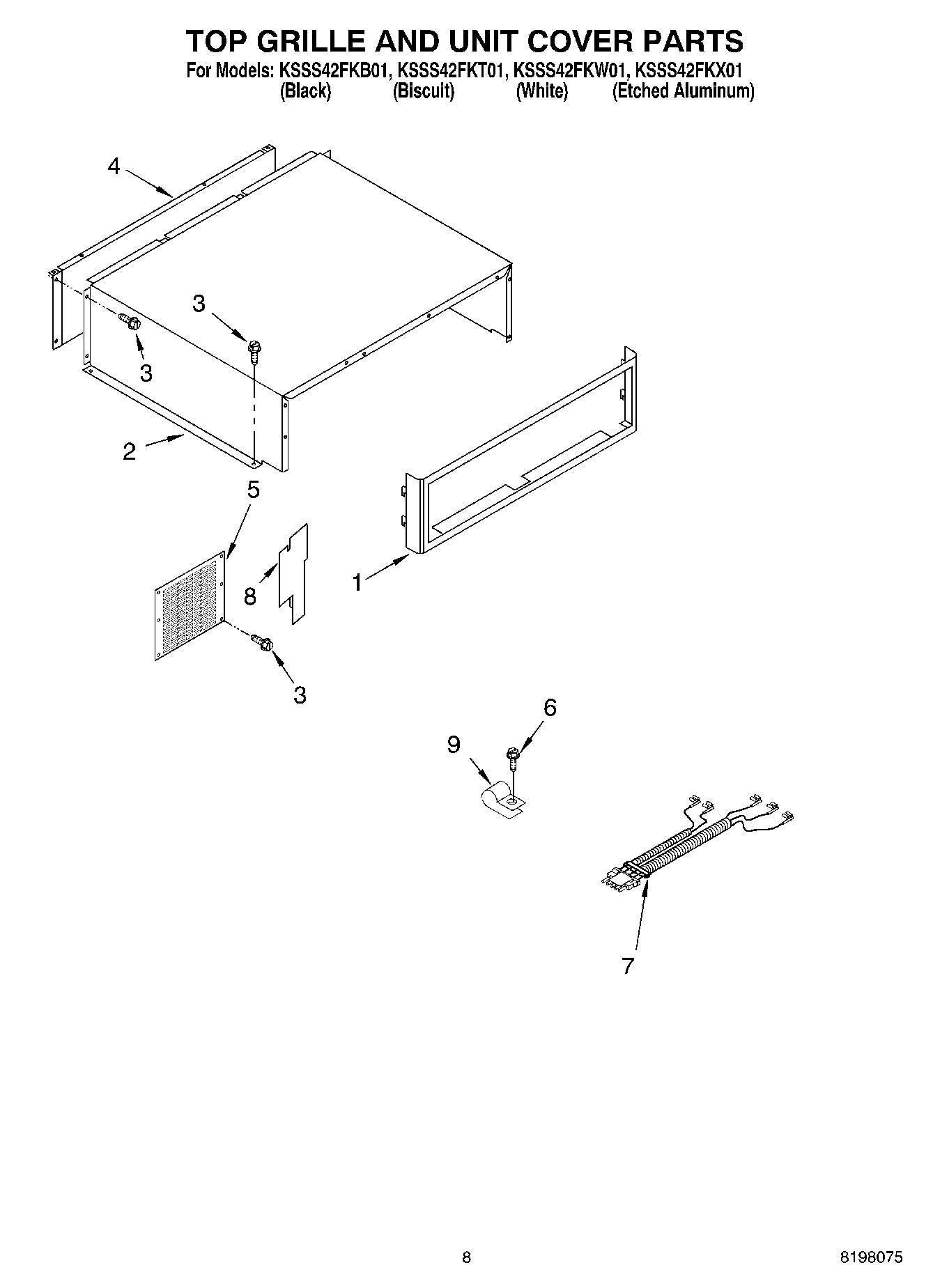

KSSS42FKT01 06 – TOP GRILLE AND UNIT COVER

KSSS42FKT01 06 – TOP GRILLE AND UNIT COVER

Written by

in

KSSS42FKT01 06 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Etched Aluminum)
1Top Grille Assembly (White)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (Black)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
8Baffle-Air, Condenser
9489348 Whirlpool Refrigerator Tube Clamp
