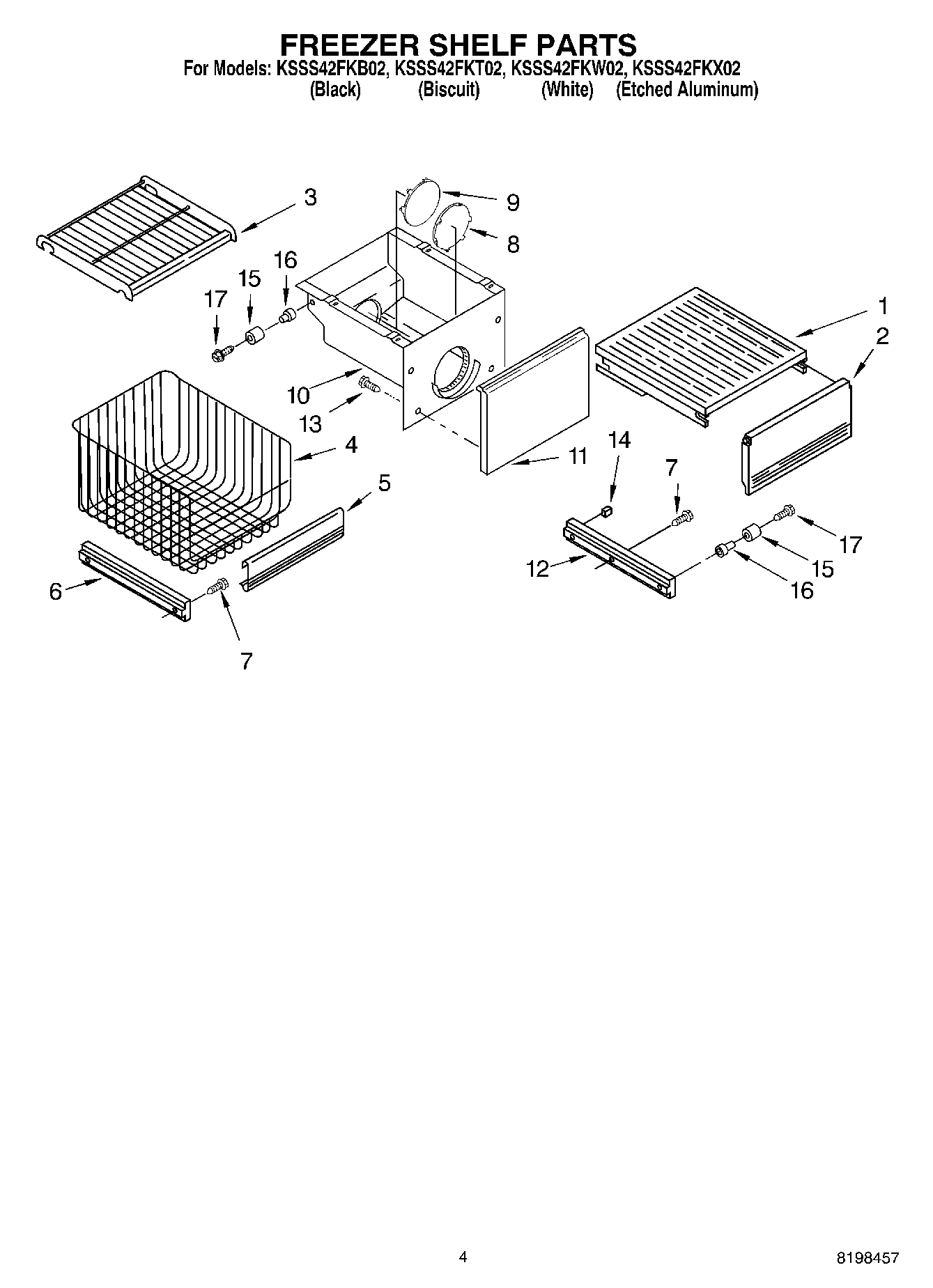

KSSS42FKT02 03 – FREEZER SHELF PARTS

Products

Position	Product
1	Solid Shelf
2	Front, Ice Compartment
3	Shelf, Fixed (2)
3	Shelf, Deep
4	Basket
5	Trim, Basket
6	Slide, Basket (Left Side (2))
6	Slide, Basket (Right Side (2))
7	W11624204 Whirlpool Screw
8	2003046 Whirlpool Refrigerator Plug
9	2003047 Whirlpool Refrigerator Plug
10	Ice Container
11	Front Cover
12	Slide, Container (Right Side)
12	2006518 Whirlpool Refrigerator Track
13	WP488787 Whirlpool Refrigerator Screw
14	Roller Stop
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
