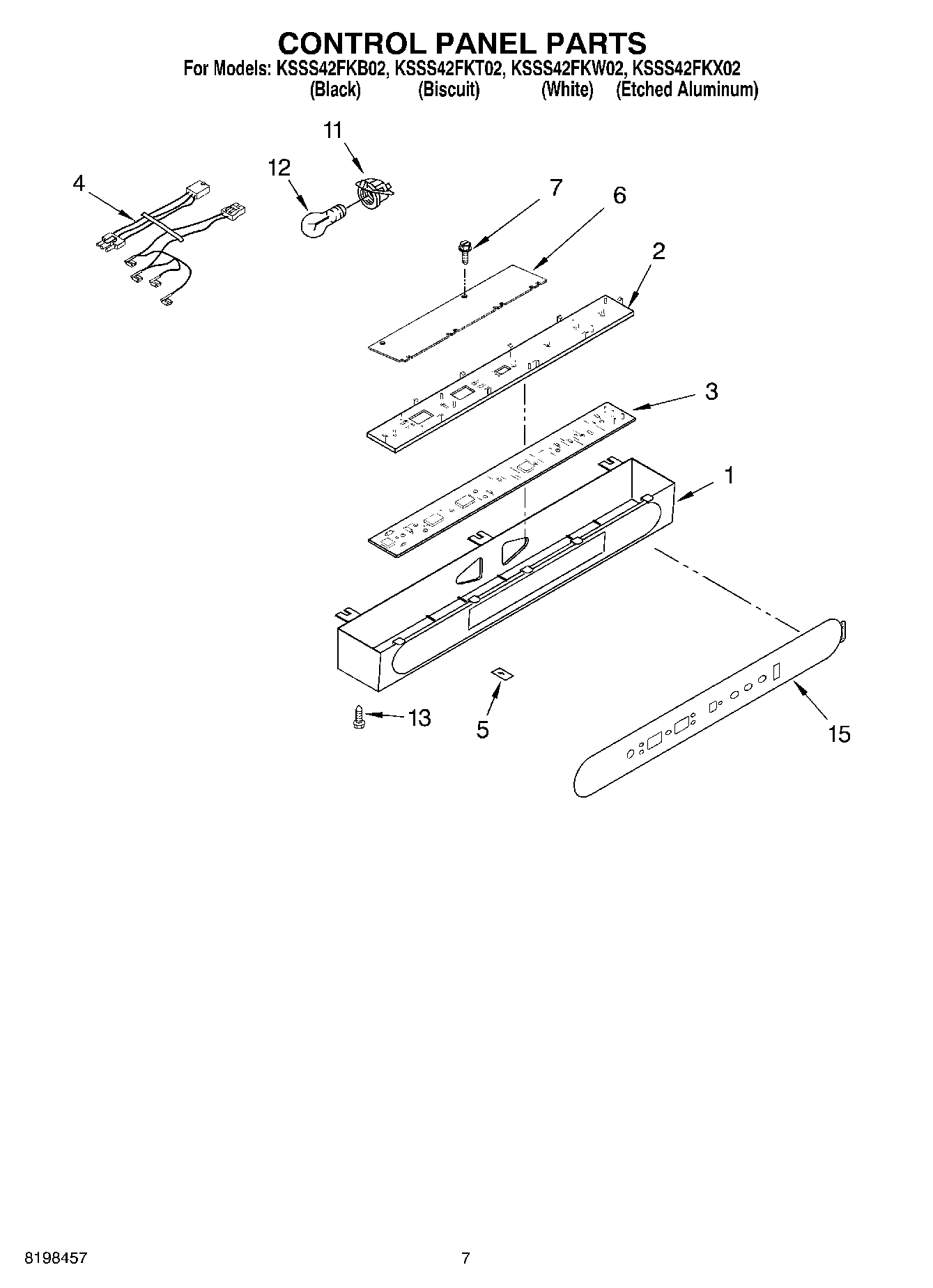

KSSS42FKW02 05 – CONTROL PANEL PARTS

KSSS42FKW02 05 – CONTROL PANEL PARTS

Written by

in

KSSS42FKW02 05 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Box
2Insert, Control Box
3Circuit Board (User Interface)
4Harness, Control Box
5Retainer, Knob
62221121 Whirlpool Refrigerator Support
7WP488920 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12W10887190 Whirlpool Refrigerator Light Bulb
13W11624204 Whirlpool Screw
15Overlay
