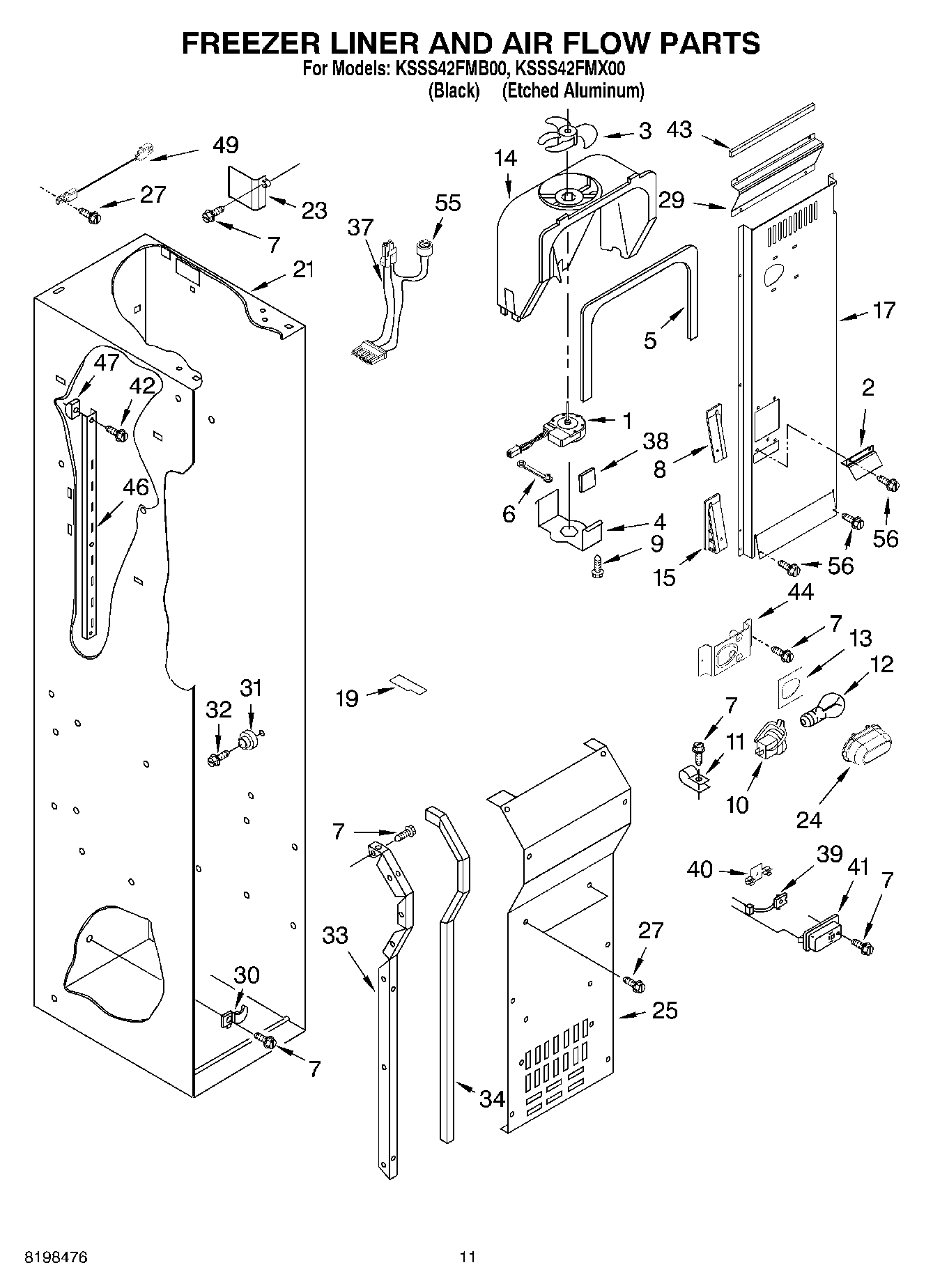

KSSS42FMB00 08 – FREEZER LINER AND AIR FLOW PARTS

KSSS42FMB00 08 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

KSSS42FMB00 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
22266801 Whirlpool Refrigerator Deflector
3WP2169142 Whirlpool Fan Blade
4WP2155590 Whirlpool Refrigerator Retainer
5WP2155789 Whirlpool Refrigerator Gasket
68201663 Whirlpool Refrigerator Primary Fan Blade
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
9WP489128 Whirlpool Refrigerator Screw
104387478 Whirlpool Refrigerator Light Socket
11Clamp, Tube
12RANGE ONLY 40W 120V APPL BULB
13Seal-Light, Socket
14WP2182120 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
17Assembly, Air Duct
198201798 Whirlpool Refrigerator Fan Block
192209066 Whirlpool Refrigerator Fan Block
21Liner (Not A Serviceable Part)
232259025 Whirlpool Refrigerator Air Cover
24Light Shield
25Cover, Evaporator
27WP488729 Whirlpool Refrigerator Door Screw
29Deflector, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WP3400806 Whirlpool Screw
33Evaporator, Cover Rail (Left Side)
332259355 Whirlpool Refrigerator Evaporator Rail
342220904 Whirlpool Refrigerator Gasket
37Harness, Evap Fan
38W11553819 Whirlpool Refrigerator Insulation
39WP2188820 Whirlpool Refrigerator Thermistor
40Clip, Thermistor
411116793 Whirlpool Refrigerator Cover
422006475 Whirlpool Refrigerator Screw
43Gasket, Air Duct
44Bracket, Light
46WP2259032 Whirlpool Ladder
472259445 Whirlpool Support Assembly
49THERMISTOR
55WPW10225581 Whirlpool Refrigerator Defrost Thermostat
56WPW10142283 Whirlpool Refrigerator Screw
