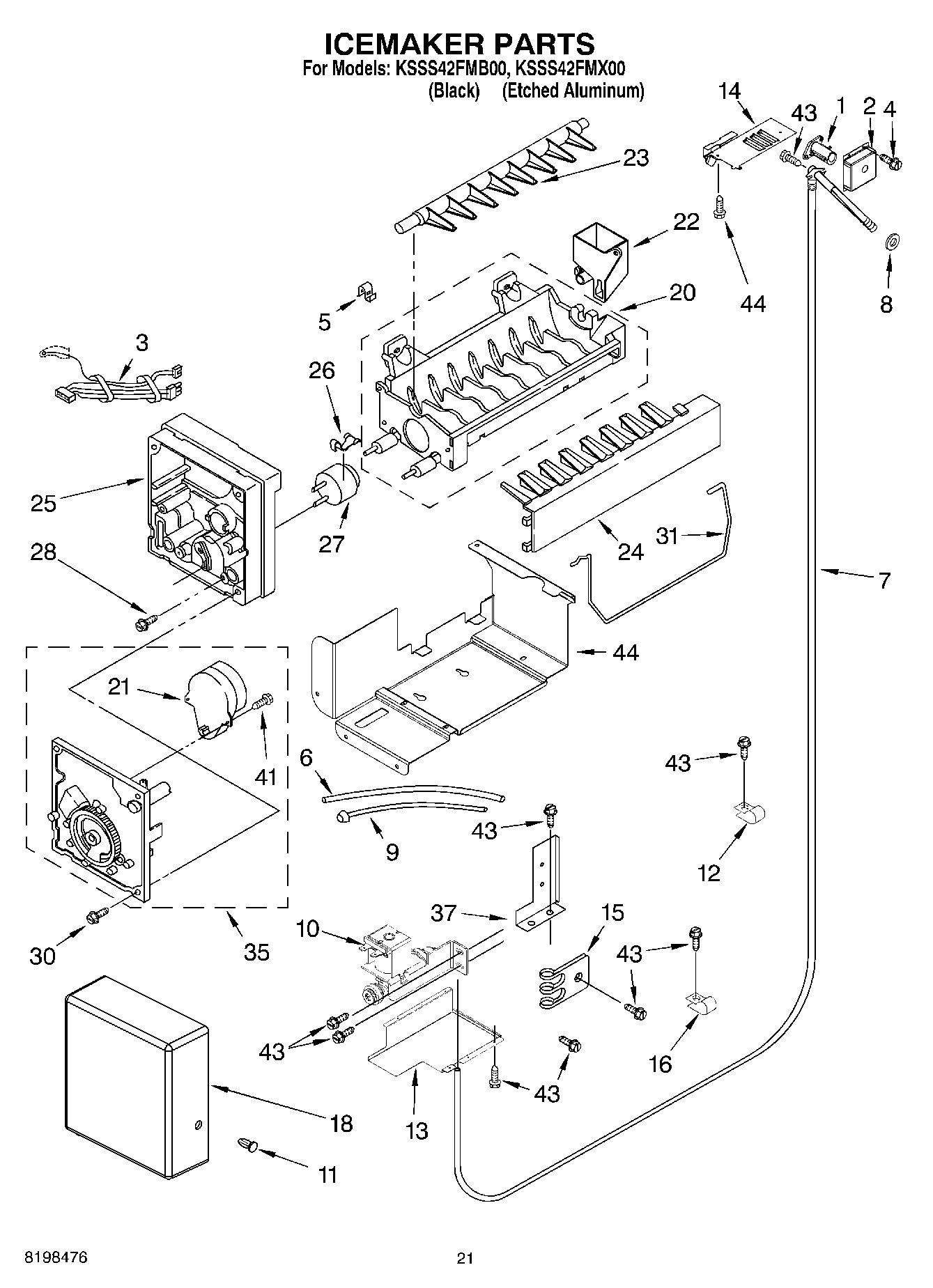

KSSS42FMB00 13 – ICEMAKER PARTS PARTS NOT ILLUSTRATED

Products

PositionProduct
1WP2221240 Whirlpool Refrigerator Heater
2Cover, Fill Tube Heater
3Wire Assembly, Icemaker
4WP488729 Whirlpool Refrigerator Door Screw
5WP628379 Whirlpool Refrigerator Clip
6Tube, Filter Inlet
7Water Inlet Tube Assembly
8WP1106508 Whirlpool Refrigerator Gasket
9Tube, Filter Outlet
10WP2313917 Whirlpool Refrigerator Inlet Valve
11WP489115 Whirlpool Refrigerator Rivet
12W10833902 Whirlpool Refrigerator Clamp
13Cover, Bottom
14WP2221231 Whirlpool Refrigerator Shield
15WP488366 Whirlpool Refrigerator Clamp
16Clamp, Tube
18Cover
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
37Water Valve Mounting Bracket
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
44WP489069 Whirlpool Compactor Screw
100FOLLOWING PARTS NOT ILLUSTRATED
100Front Panel Kit (Stainless Steel)
100Front Panel Kit (Black)
100Front Panel Kit (White)
1004317943 Whirlpool Refrigerator Ice Maker Assembly
100(Optional Parts Only)
