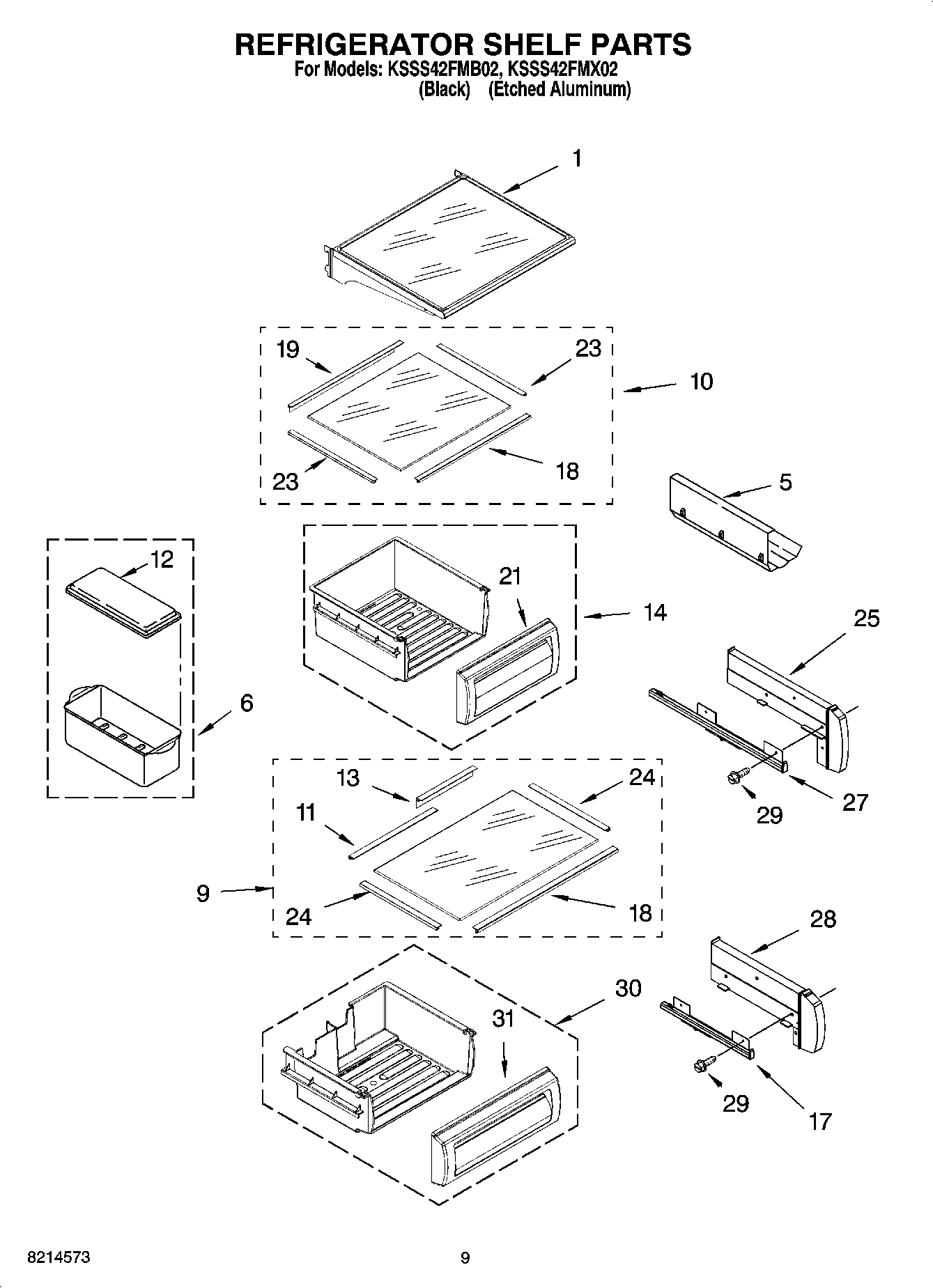

KSSS42FMB02 07 – REFRIGERATOR SHELF PARTS

KSSS42FMB02 07 – REFRIGERATOR SHELF PARTS

Written by

in

KSSS42FMB02 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assembly
5W10777924 Whirlpool Refrigerator Wine Rack
6Egg Bin Assembly
9Glass, Meat Pan Assembly
10W10849998 Whirlpool Glass Shelf
11Trim, Glass Rear Side
12Cover
13TRIM, GLASS REAR
14W10407624 Whirlpool Refrigerator Crisper Pan
172302954 Whirlpool Refrigerator Slide
172302955 Whirlpool Refrigerator Slide
18Trim, Glass Front (Not Serviceable)
19TRIM, GLASS REAR
21WP2256248 Whirlpool Refrigerator Front Pan
23Trim, Glass Side
242256250 Whirlpool Refrigerator Shelf Trim
252256222 Whirlpool Refrigerator Track
252256223 Whirlpool Refrigerator Track
272302956 Whirlpool Refrigerator Slide
272302957 Whirlpool Refrigerator Slide
282256244 Whirlpool Refrigerator Track
282256243 Whirlpool Refrigerator Track
29WP8533928 Whirlpool Refrigerator Screw
29WP3400886 Whirlpool Refrigerator Screw
30W10407627 Whirlpool Refrigerator Meat Pan
31WP2256366 Whirlpool Refrigerator Front Pan
