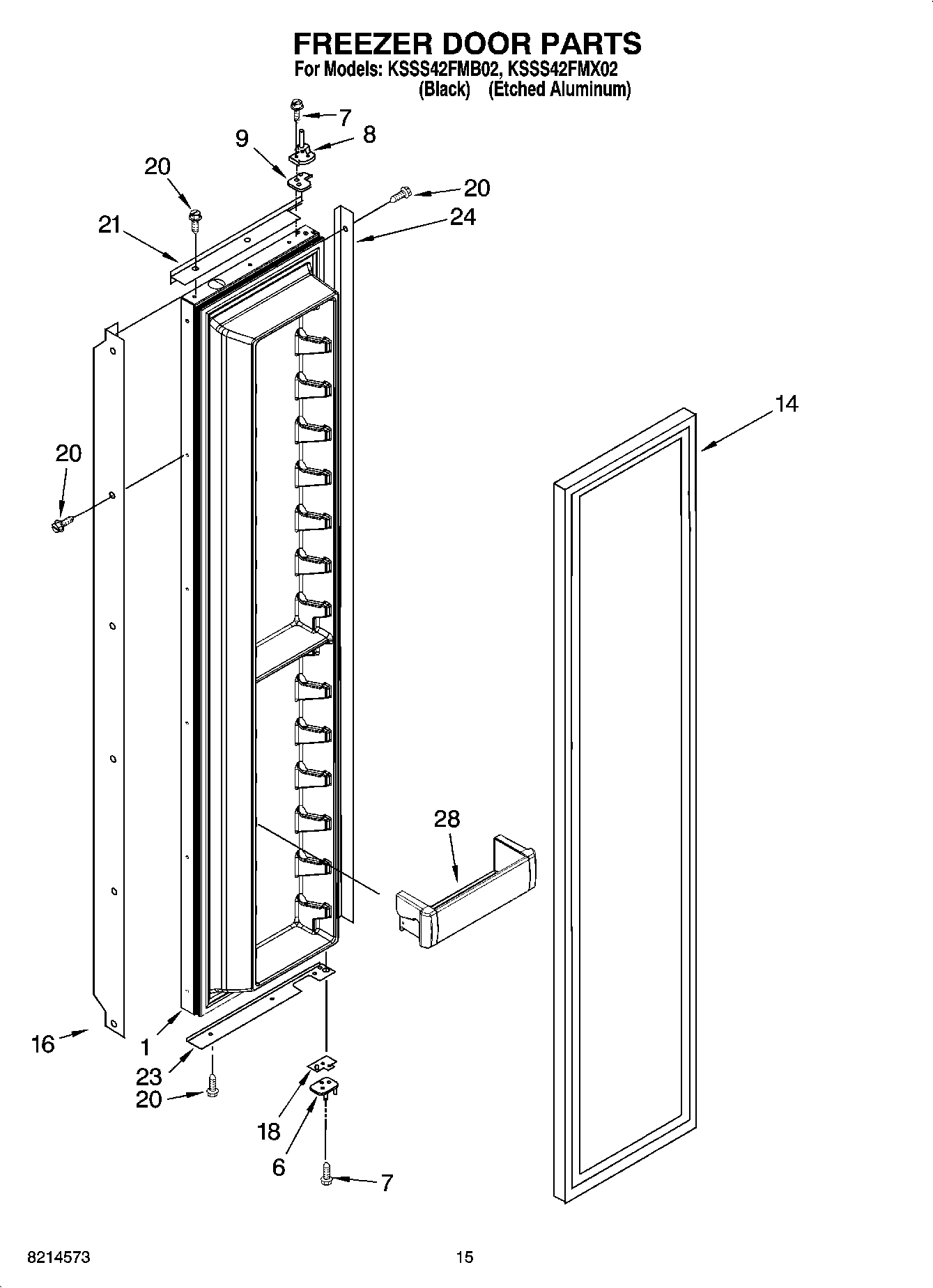

KSSS42FMB02 10 – FREEZER DOOR PARTS

Products

Position	Product
1	LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
14	WP2266905 Whirlpool Refrigerator Door Gasket
16	Handle, Door (Etched Aluminum)
16	Handle, Door (Black)
18	Door Spacer, Bottom
20	WP8281250 Whirlpool Refrigerator Screw
20	W10851443 Whirlpool Refrigerator Screw
21	2005020 Whirlpool Refrigerator Door Trim
21	Trim (Top) (Black)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (Black)
24	Trim (Side) (Black)
24	Trim (Side) (Etched Aluminum)
28	W10323602 Whirlpool Refrigerator Cantilever Bin
28	F.C. (6)
