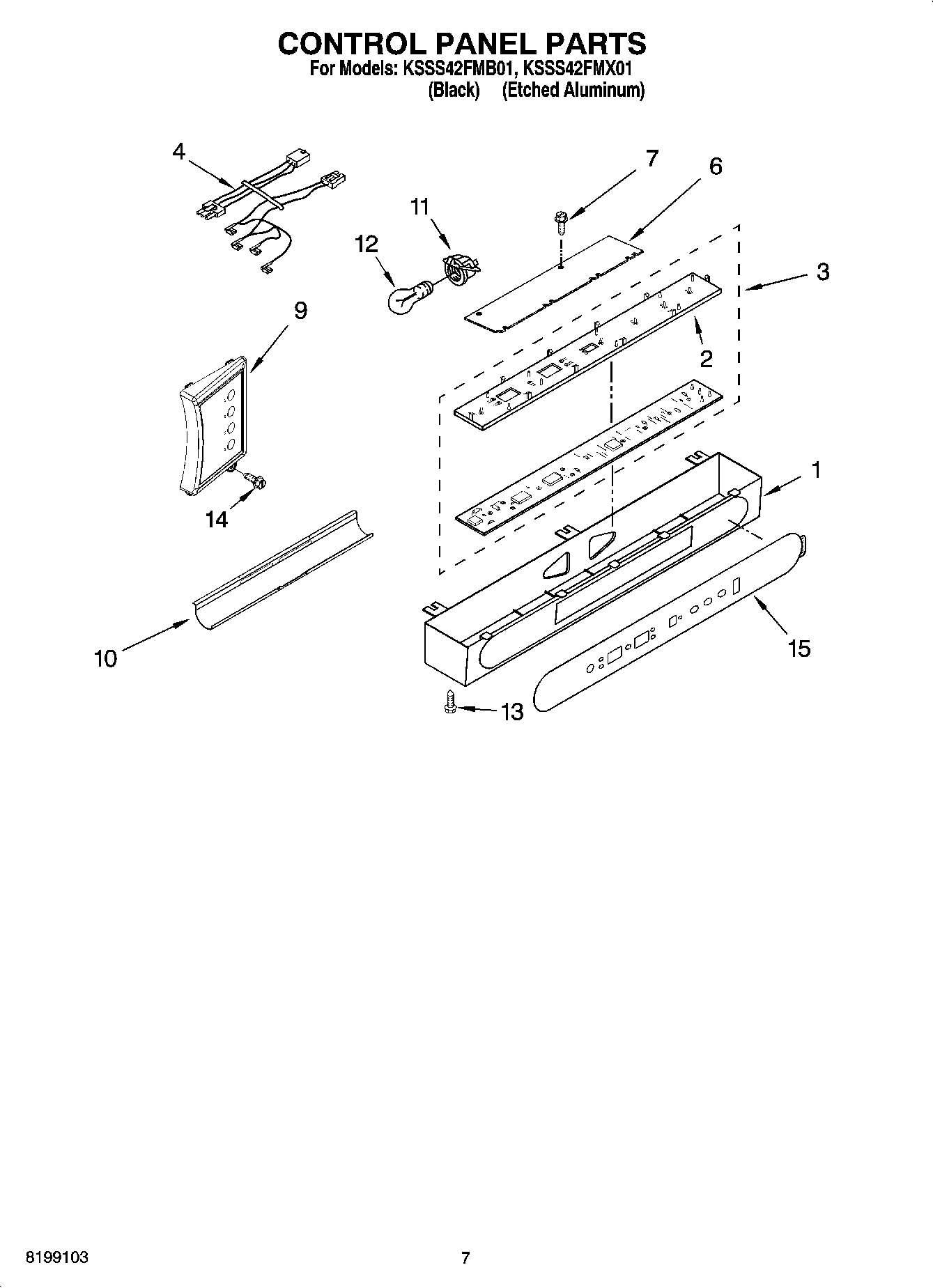

KSSS42FMX01 05 – CONTROL PANEL PARTS

KSSS42FMX01 05 – CONTROL PANEL PARTS

Written by

in

KSSS42FMX01 05 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Box
2Insert, Control Box
3Circuit Board (User Interface)
4Harness, Control Box
62221121 Whirlpool Refrigerator Support
7WP488920 Whirlpool Refrigerator Screw
9WP2306086 Whirlpool Refrigerator Electronic Control Board
10Shield, Light
114387478 Whirlpool Refrigerator Light Socket
12RANGE ONLY 40W 120V APPL BULB
13W11624204 Whirlpool Screw
14WPW10142283 Whirlpool Refrigerator Screw
15OVERLAY
