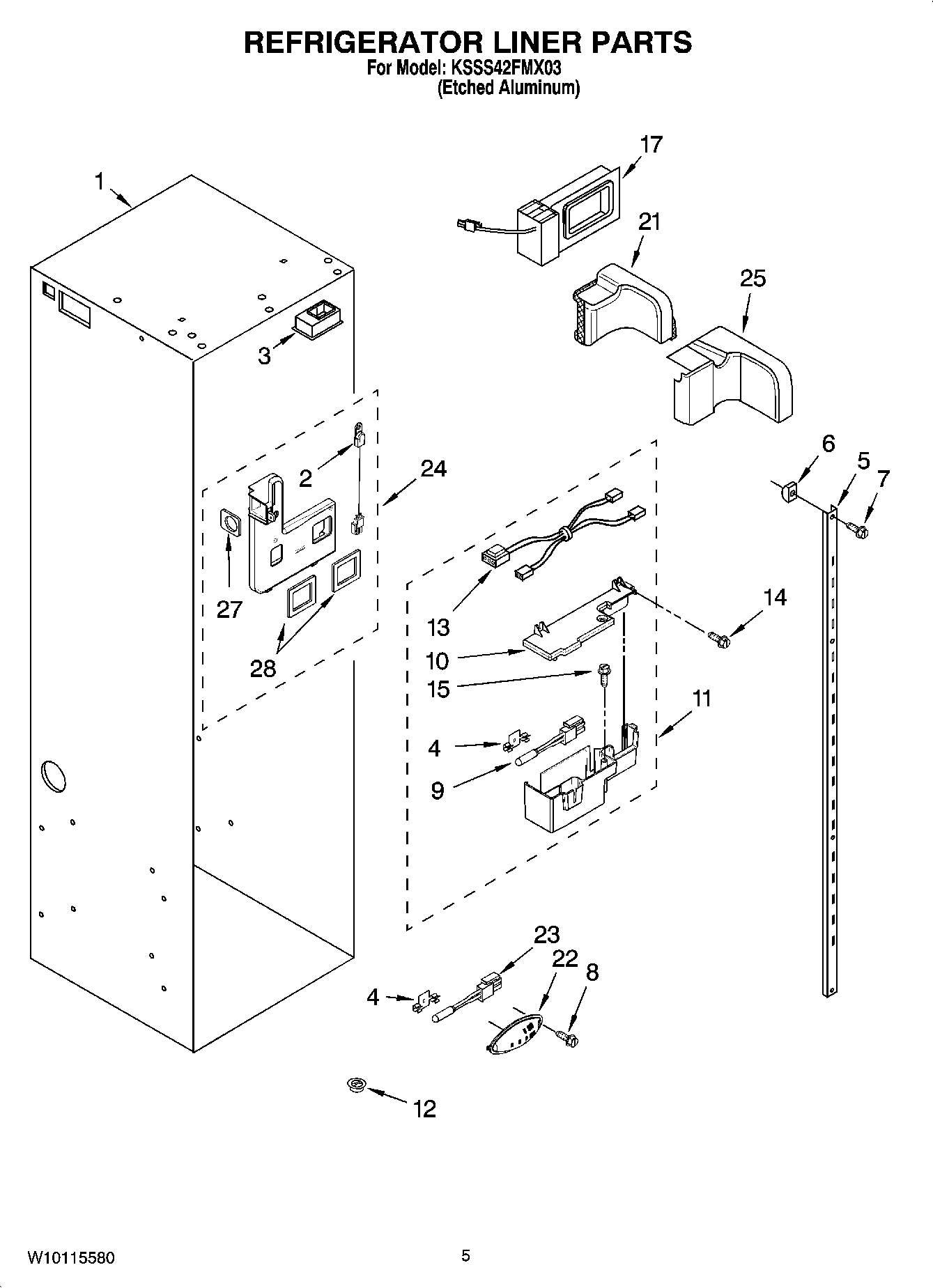

KSSS42FMX03 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2306010 Whirlpool Refrigerator Thermistor
3	2208970 Whirlpool Refrigerator Air Duct
4	Clip, Thermistor
5	WP2259077 Whirlpool Ladder Assembly
6	520965 Whirlpool Refrigerator Support
7	2006475 Whirlpool Refrigerator Screw
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP2302937 Whirlpool Refrigerator Thermistor
10	2302986 Whirlpool Refrigerator Cover
11	WPW10169528 Whirlpool Refrigerator Diffuser
12	2171846 Whirlpool Refrigerator Release Valve
13	2310205 Whirlpool Wire Jumper
14	Screw, 8 x 1-1/4 (3)
15	W11624204 Whirlpool Screw
17	WP2221296 Whirlpool Air Baffle
21	WP2309222 Whirlpool Refrigerator Diffuser
22	WP2317844 Whirlpool Refrigerator Cover
23	WP2188820 Whirlpool Refrigerator Thermistor
24	W10475010 Whirlpool Refrigerator Spacer
25	2309087 Whirlpool Refrigerator Cover
27	Seal, Air Duct (Round Hole)
28	2259398 Whirlpool Refrigerator Seal
