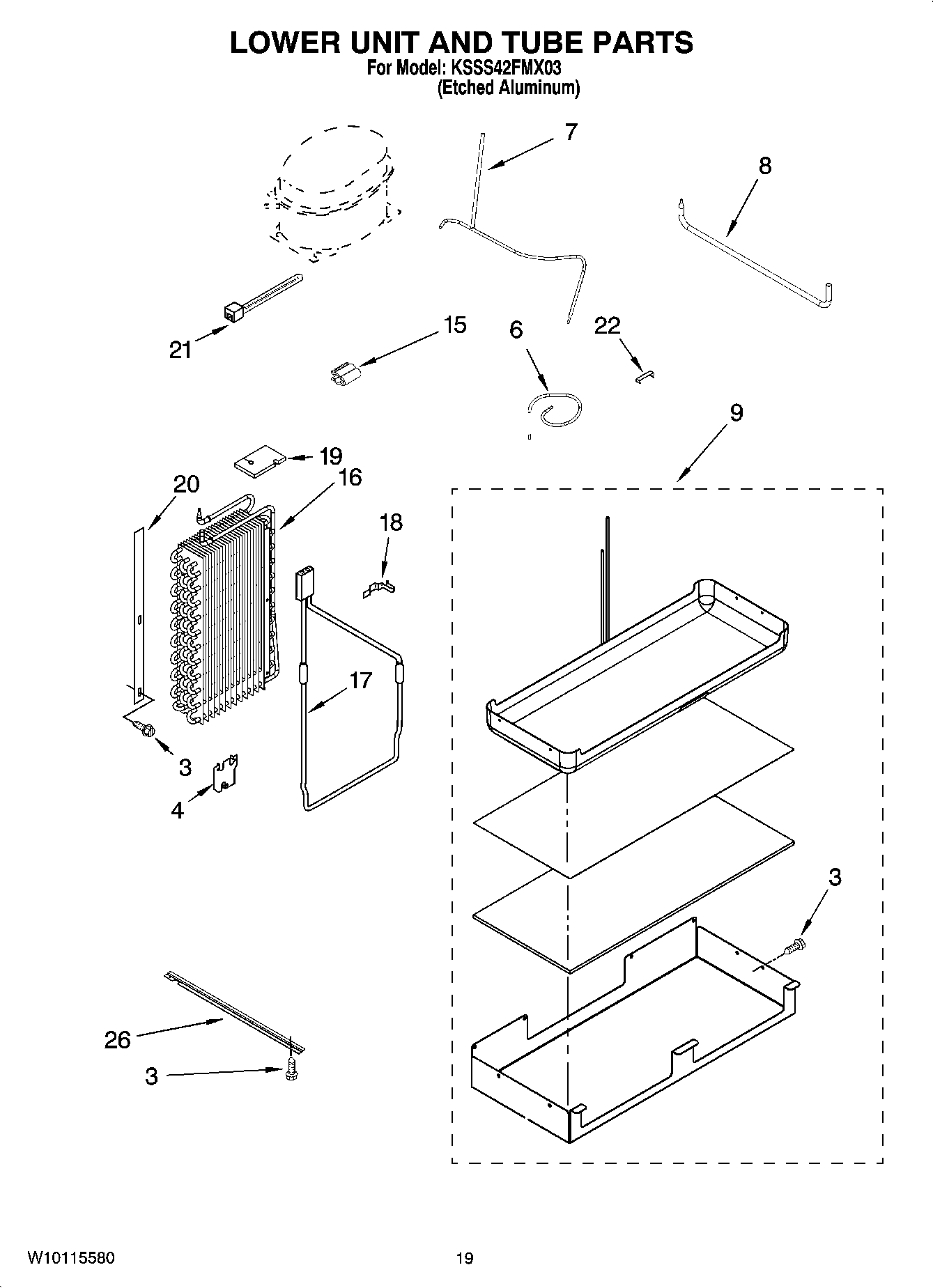

KSSS42FMX03 12 – LOWER UNIT AND TUBE PARTS

KSSS42FMX03 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSS42FMX03 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
3W11624204 Whirlpool Screw
4Bracket
6Suction Tube
7W10624429 Whirlpool Refrigerator Tube
8Tube, Transition (Drier/Restrictor)
9WPW10281063 Whirlpool Refrigerator Heater Pan
159791833 Whirlpool Refrigerator Clip
16WP2306093 Whirlpool Evaporator
17WP2306388 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
198201798 Whirlpool Refrigerator Fan Block
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
262320554 Whirlpool Bracket
