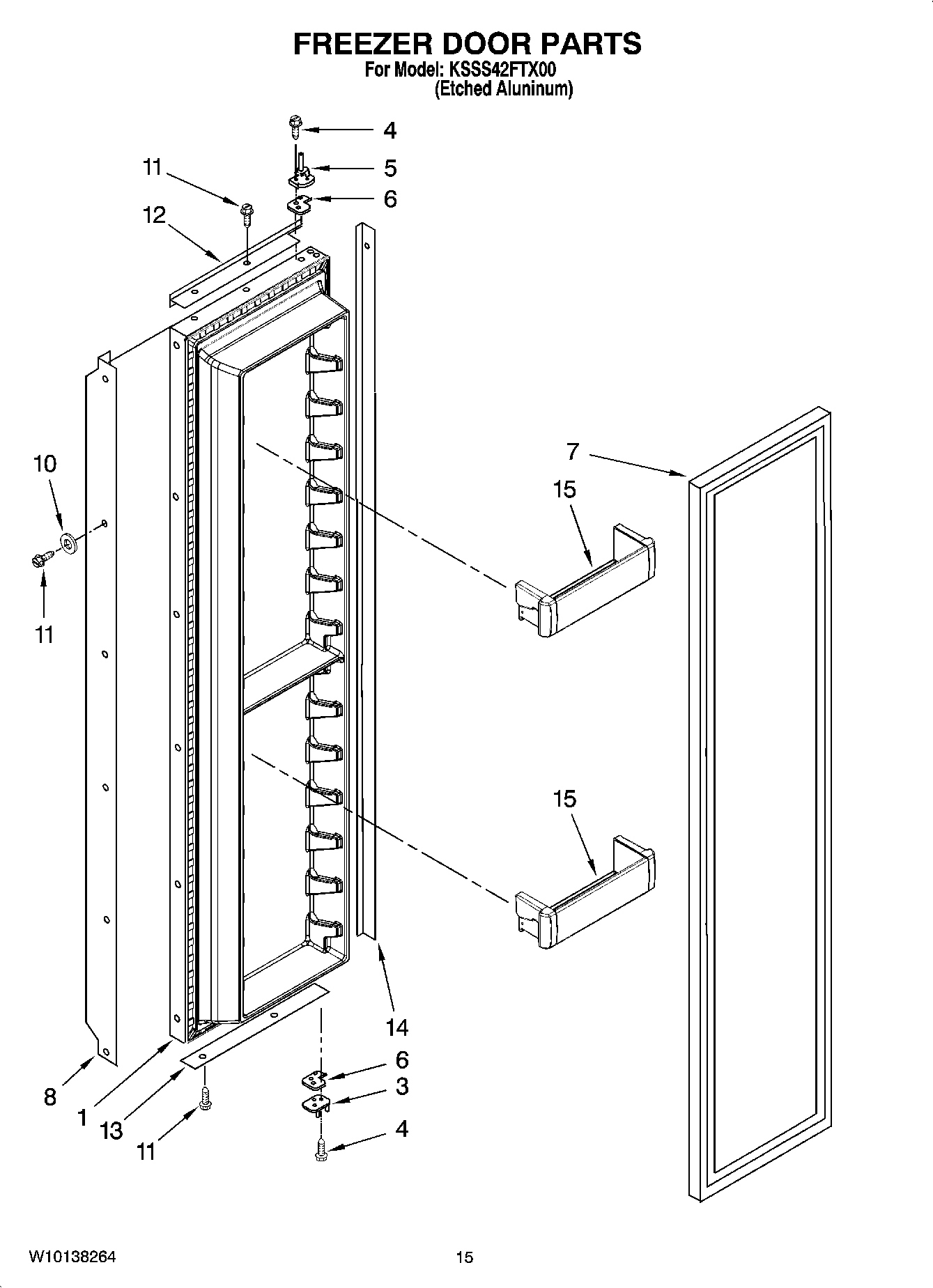

KSSS42FTX00 10 – FREEZER DOOR PARTS

KSSS42FTX00 10 – FREEZER DOOR PARTS

Written by

in

KSSS42FTX00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266905 Whirlpool Refrigerator Door Gasket
8Handle, Door
10Washer
11WP8281250 Whirlpool Refrigerator Screw
12Trim-Door, Top
13Trim-Door, Bottom
14Trim-Door, Side
15W10323602 Whirlpool Refrigerator Cantilever Bin
