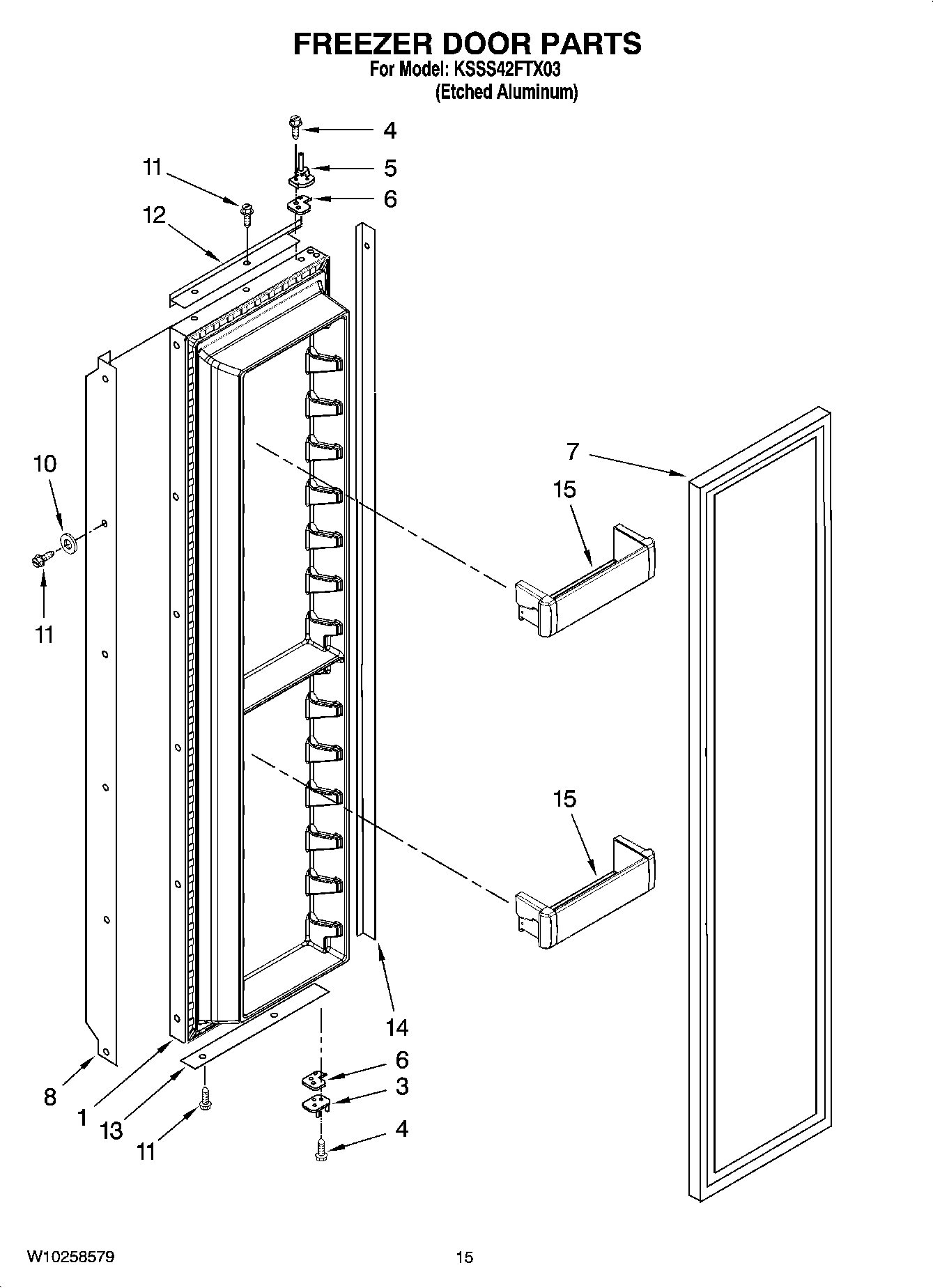

KSSS42FTX03 10 – FREEZER DOOR PARTS

Products

Position	Product
1	LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
5	W11724512 Whirlpool Door Hinge
6	W11673500 Whirlpool Door Hinge
7	WP2266905 Whirlpool Refrigerator Door Gasket
8	Handle, Door
10	Washer
11	WP8281250 Whirlpool Refrigerator Screw
12	Trim-Door, Top
13	Trim-Door, Bottom
14	Trim-Door, Side
15	W10323602 Whirlpool Refrigerator Cantilever Bin
