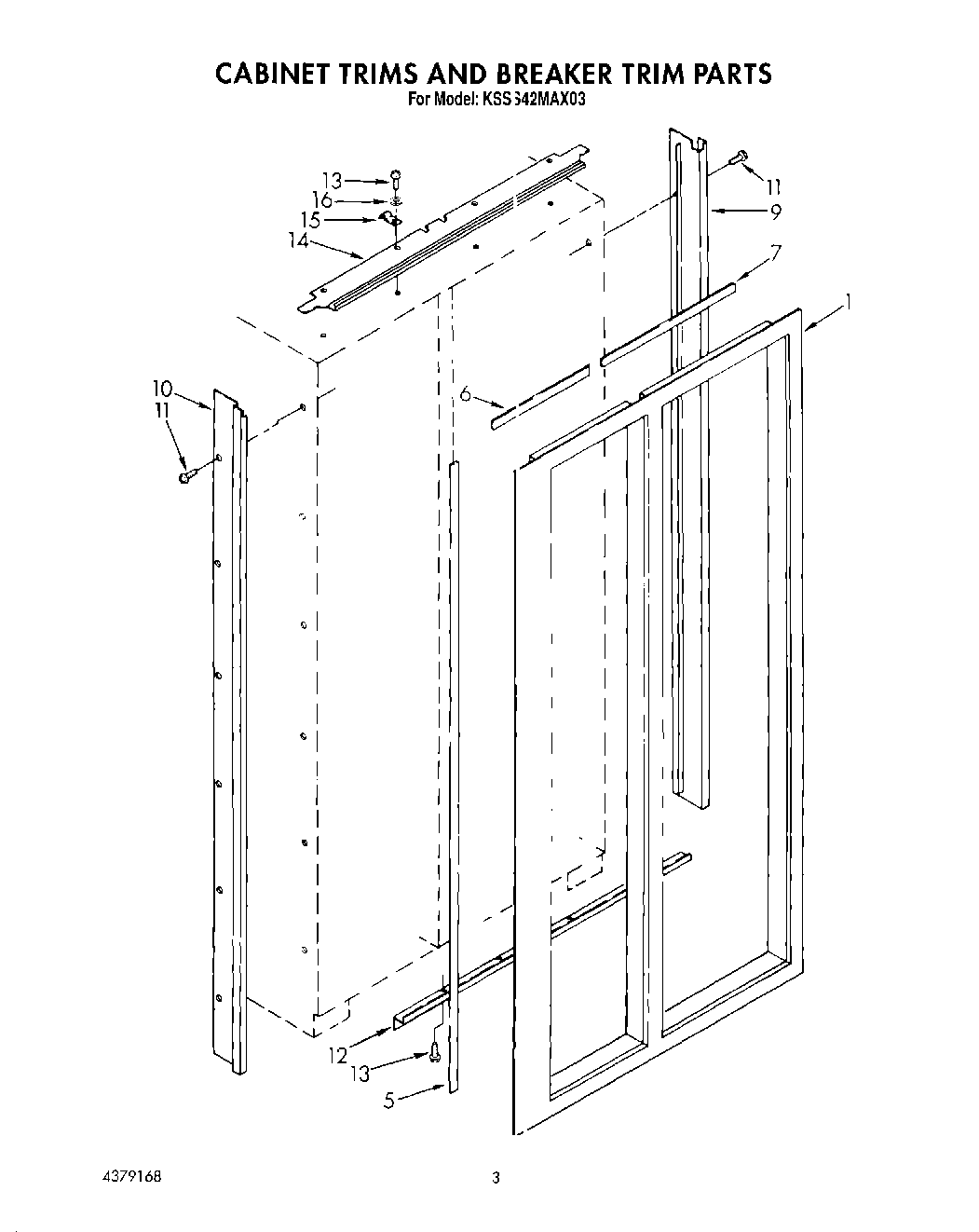

KSSS42MAX03 02 – CABINET TRIMS AND BREAKER TRIM

Products

PositionProduct
1Breaker Trim & Retainer Assembly
5Magnet, Side (4)
6Magnet, Freezer (2)
7Magnet, Refrigerator (2)
9Cabinet, Trim R.S
10Cabinet, Trim L.S
11Screw
12Trim (Bottom)
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Cabinet, Trim Top
15Retainer, Unit Base (2)
16W10903204 Whirlpool Refrigerator Washer
