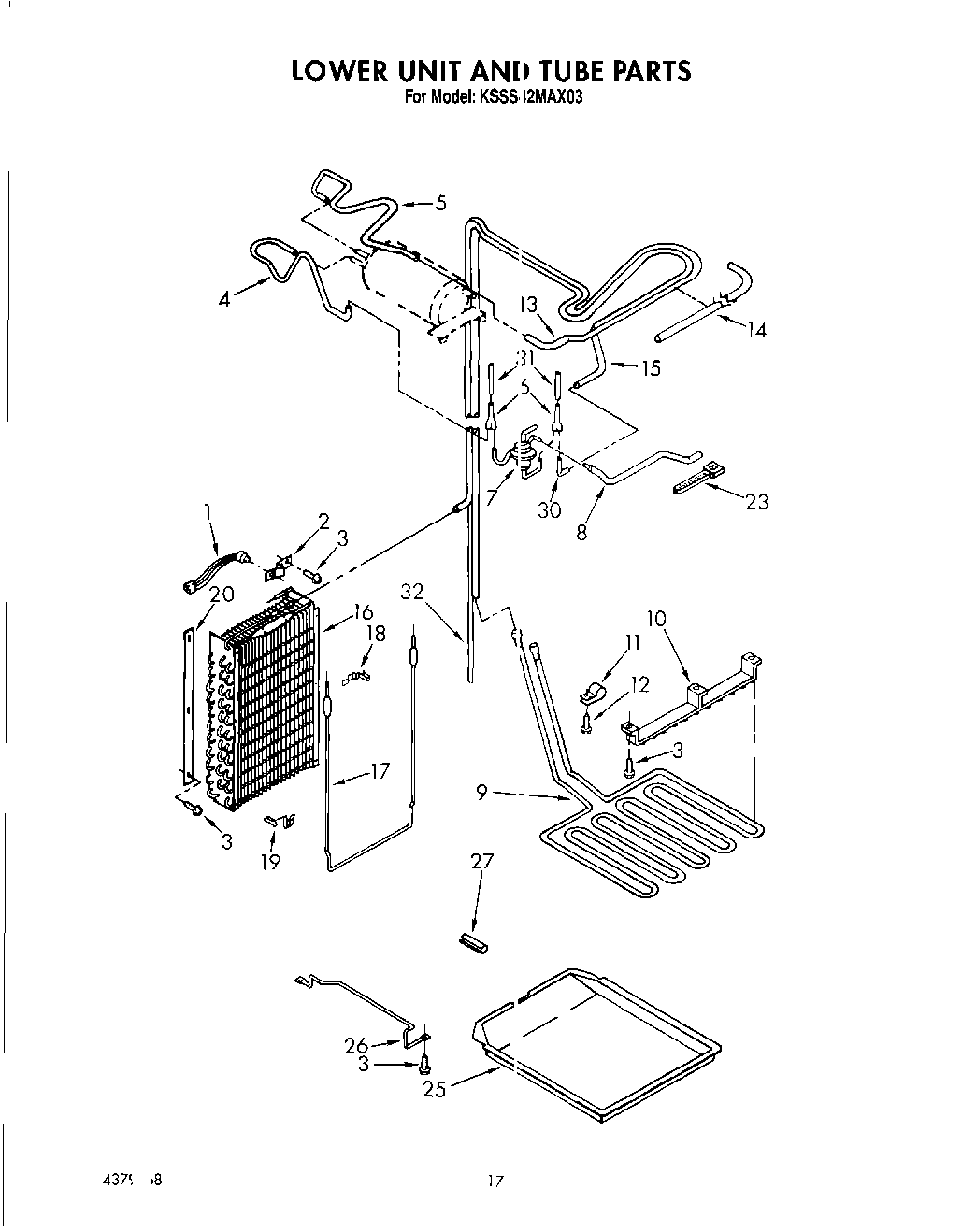

KSSS42MAX03 12 – LOWER UNIT AND TUBE

Products

Position	Product
1	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
2	Clamp, Bi-Metal
3	W11624204 Whirlpool Screw
4	Tube, Connect (Suction)
5	Tube, Connect (Discharge)
6	Tube, Flow Divider (2)
7	Valve, Fluid Control
8	Tube, Connect (Drier)
9	Heater, Drain Pan
10	Hanger, Heater
11	Bracket, Heater
12	WP488163 Whirlpool Refrigerator Screw
13	Tube, Discharge
14	WP2002171 Whirlpool Refrigerator Sleeve
15	Heat Exchanger
16	4388574 Whirlpool Refrigerator Evaporator
17	WP2000631 Whirlpool Refrigerator Heater
18	1113048 Whirlpool Refrigerator Clamp
19	Clamp (4)
20	Gasket, Evaporator
23	Strap
25	WP2001264 Whirlpool Refrigerator Drip Pan
26	Bracket, Drain Pan (Left)
26	Bracket, Drain Pan (Right)
27	WP2158826 Whirlpool Refrigerator Dampener
30	Tube, Connect (Suction)
31	Tube (2)
32	Tube, Condenser Inlet
