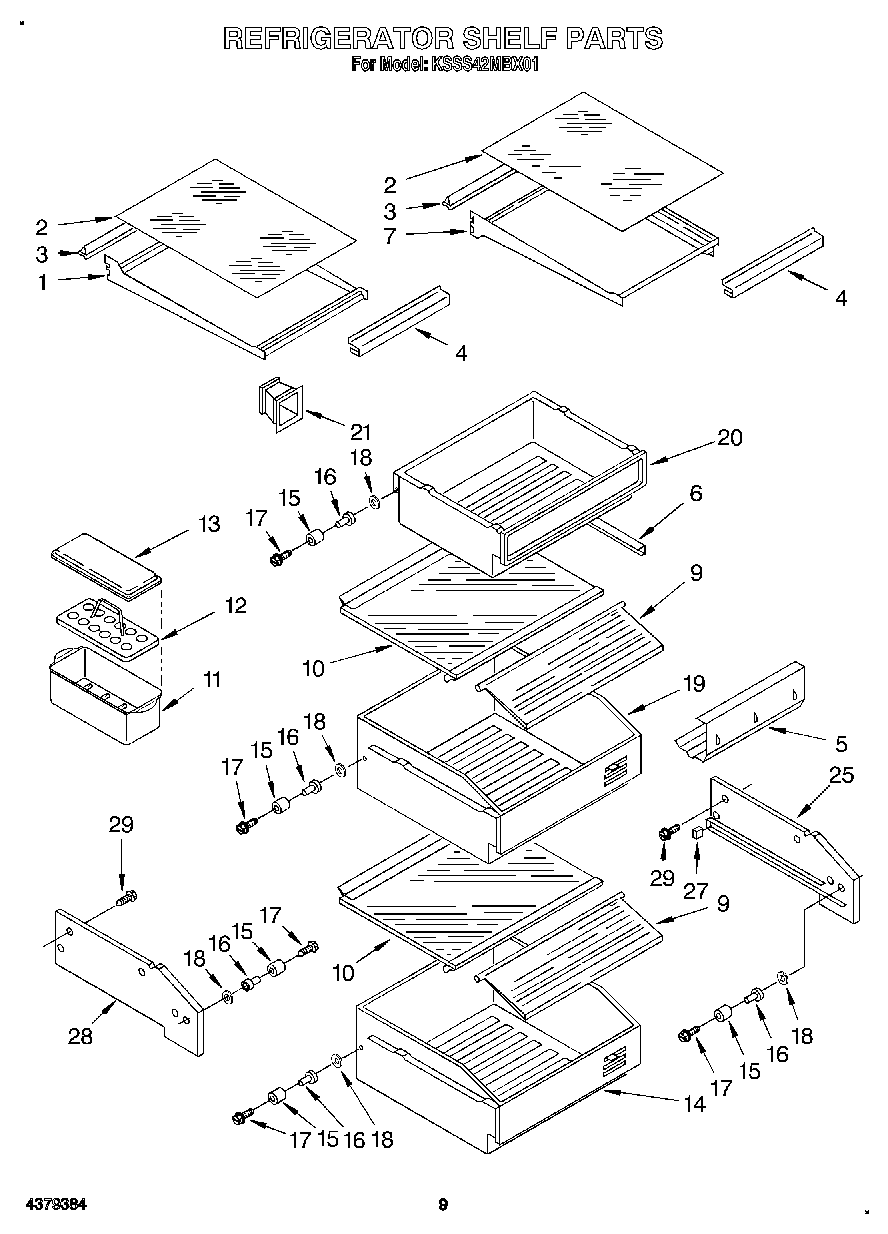

KSSS42MBX01 07 – REFRIGERATOR SHELF

Written by

Products

Position	Product
1	Frame, Shelf
2	Glass, Shelf
3	Reflector, Shelf
4	Gasket, Glass (2)
5	Wine & Egg Rack
6	Retainer, Glass
7	Frame Assembly
9	WP1113894 Whirlpool Refrigerator Cover
10	Glass, Crisper
11	W10136387A Whirlpool Refrigerator Egg Container
12	WP2177817 Whirlpool Refrigerator Egg Container
13	Cover
14	Pan, Crisper
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	Washer
19	Utility Pan
20	Meat Pan
21	Meat Pan, Connector
25	Crisper Spacer, Right Side (2)
27	Roller Stop
28	Crisper Spacer, Left Side (2)
29	W11624204 Whirlpool Screw
