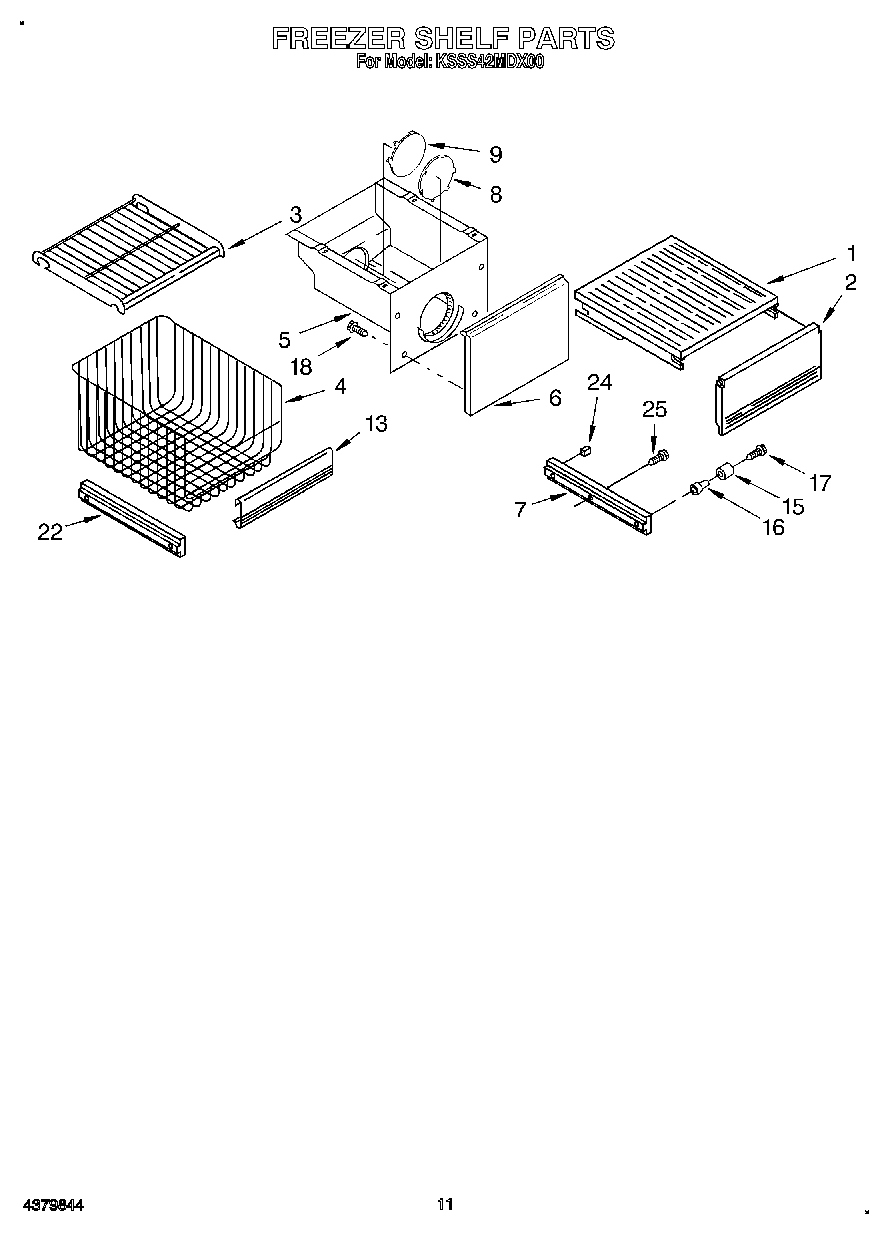

KSSS42MDX00 08 – FREEZER SHELF

Products

Position	Product
1	Solid Shelf
2	Front, Ice Compartment
3	Shelf, Deep
3	Shelf, Fixed (2)
4	Basket (2)
5	Ice Container
6	Front Cover
7	2006518 Whirlpool Refrigerator Track
7	Slide, Container (Right Side)
8	2003046 Whirlpool Refrigerator Plug
9	2003047 Whirlpool Refrigerator Plug
13	Trim, Basket
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	WP488787 Whirlpool Refrigerator Screw
22	Basket Slide (Left Side)
22	Basket Slide (Right Side)
24	Roller Stop
25	W11624204 Whirlpool Screw
