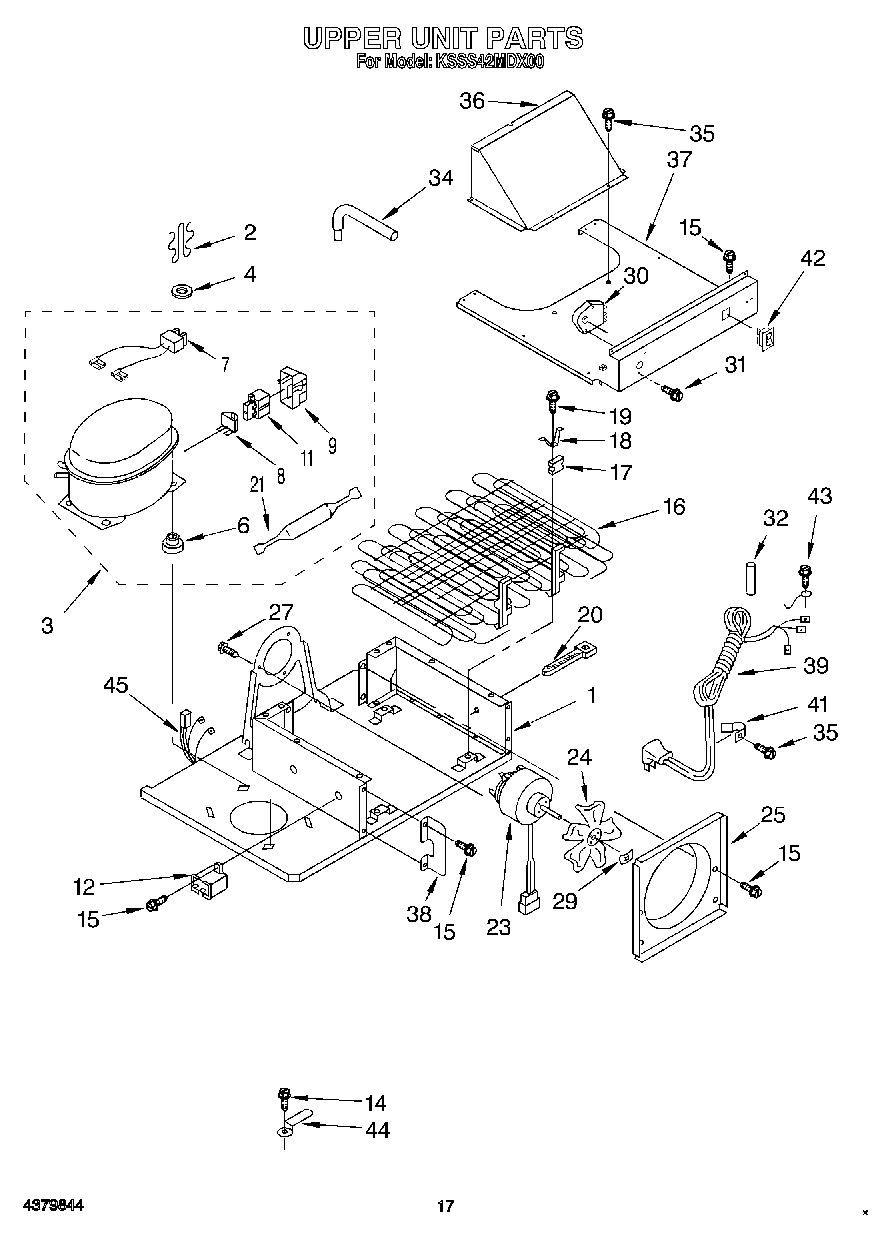

KSSS42MDX00 12 – UPPER UNIT

Products

Position	Product
NI	Bushing, Foam
1	Assembly, Unit Base
2	Clip, Compressor (4)
3	W10309994 Whirlpool Refrigerator Compressor
3	876765 Whirlpool Primary Mounting Kit Refrigerator
4	Washer
6	WP2163786 Whirlpool Refrigerator Grommet
7	WP2172890 Whirlpool Refrigerator Wire
8	WP2154697 Whirlpool Refrigerator Overload
9	WP2162358 Whirlpool Refrigerator Terminal Cover
11	Relay (See Overload)
12	Capacitor
14	Screw
15	WP965173 Whirlpool Dishwasher Screw
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Strap
21	WPW10143759 Whirlpool Dryer Filter
23	Motor, Fan
24	Fan, Blade
25	Orifice, Fan
27	681390 Whirlpool Refrigerator Screw
29	WP486692 Whirlpool Refrigerator Nut
30	WP2183400 Whirlpool Defrost Timer
31	WP3388228 Whirlpool Screw
32	Sleeve, Condenser
34	Process, Tube
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Air Vane
39	Service Cord
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	WP978025 Whirlpool Refrigerator Valve
45	Wiring Harness, Unit Compartment
45	978030 Whirlpool Refrigerator Valve
45	978026 Whirlpool Refrigerator Primary Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	VALVE, ACCESS (5/8``)
45	VALVE, ACCESS (1/2``)
