  • KSSS42MDX04 11 – FREEZER DOOR

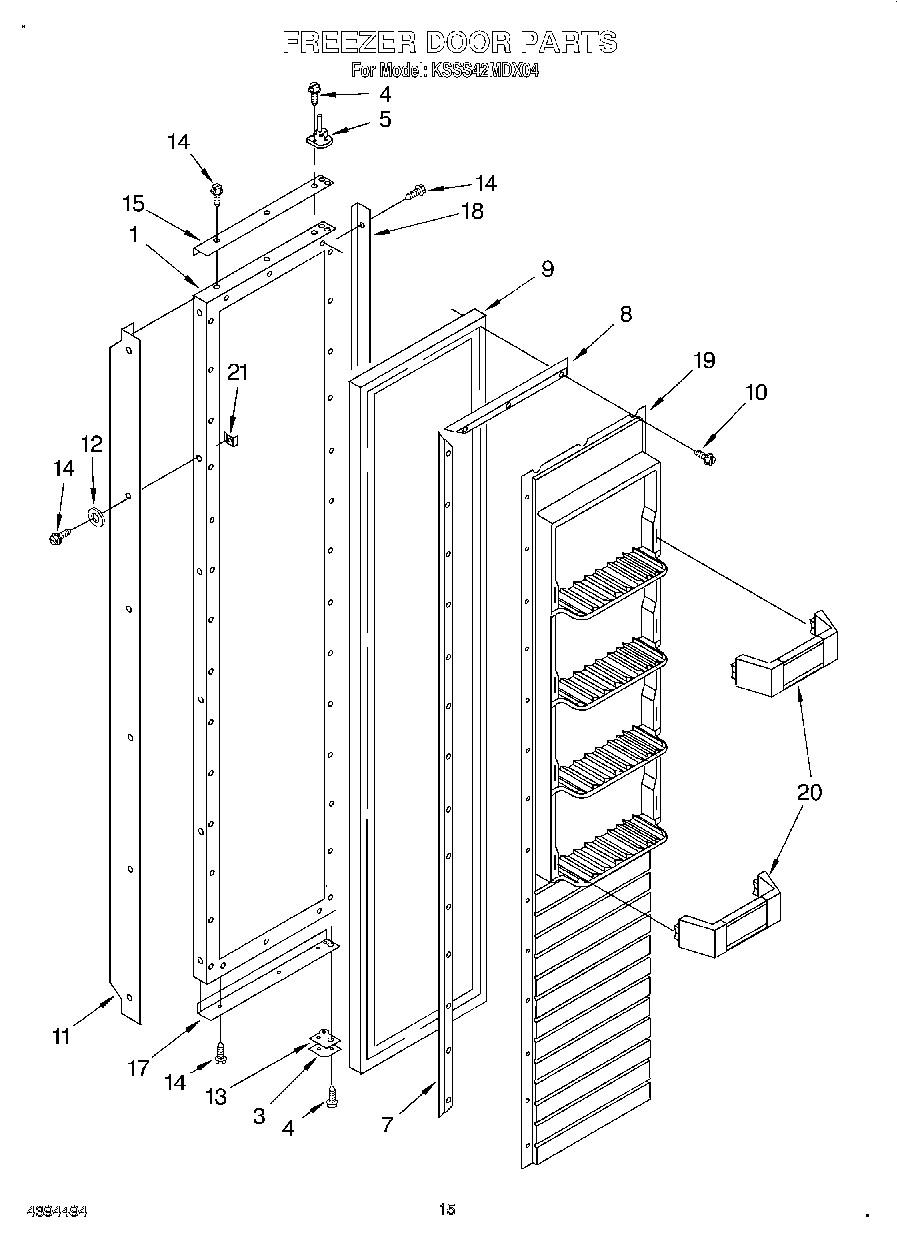

KSSS42MDX04 11 – FREEZER DOOR

KSSS42MDX04 11 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
3Hinge Assembly, Bottom
4W11474472 Whirlpool Screw
5Hinge, Top
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
92188318A Whirlpool Refrigerator Door Gasket
10W11624204 Whirlpool Screw
11Handle, Door
12Washer
13Spacer-Hinge, Bottom
14WP488729 Whirlpool Refrigerator Door Screw
152005020 Whirlpool Refrigerator Door Trim
17Trim (Bottom)
18Trim (Side)
19Panel, Interior Door
20WP2003128 Whirlpool Shelf Bin
21WP939101 Whirlpool Refrigerator Plate
