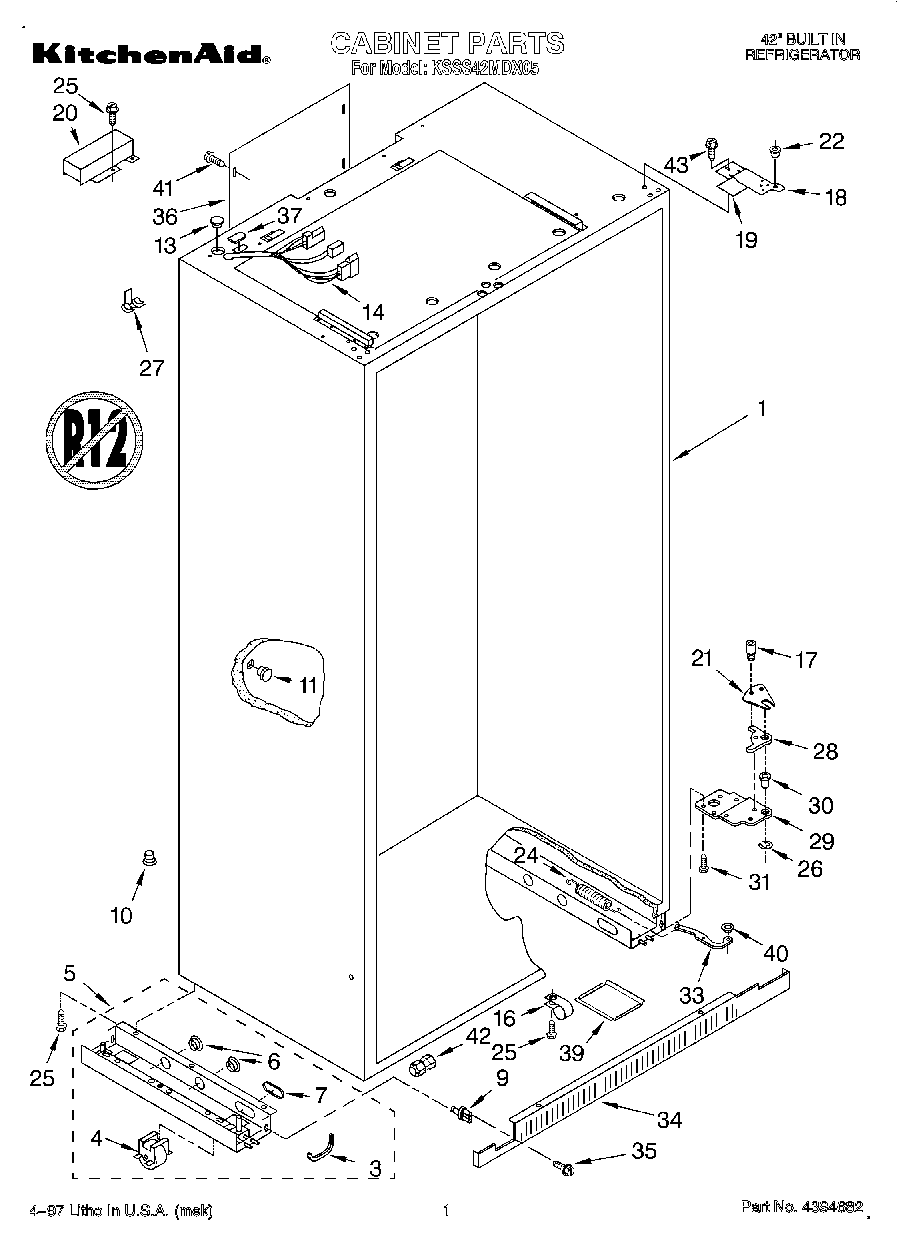

KSSS42MDX05 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	Grommet, Crossover Tube
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5	W10860448 Whirlpool Refrigerator Support
6	Grommet, Wiring
7	Grommet, Flexible
9	Mounting Stud, Grill
10	Hole Plug, Leveler
11	Cap, Grommet
13	Grommet, Wiring
14	Wiring Harness, Cabinet
16	488946 Whirlpool Air Conditioner Clamp
17	WP2005378 Whirlpool Refrigerator Screw
18	Hinge (Top) (Right Side)
18	Hinge (Top) (Left Side)
19	Shim, Hinge Top
20	Guard, Wiring
21	WP2004994 Whirlpool Refrigerator Hinge Bushing
22	Bushing
24	Spring, Door Closure (Refrigerator Side)
24	Spring, Door Closure
25	W11624204 Whirlpool Screw
26	WP489236 Whirlpool Refrigerator Ring
27	Fastener (3)
28	Gap, Cover Assembly (Bottom)
29	WP2006780 Whirlpool Refrigerator Door Hinge
29	W10527053 Whirlpool Refrigerator Door Hinge
30	WP2302876 Whirlpool Refrigerator Hinge Bushing
33	Linkage, Door Closure
34	Grille Base, Front (Black)
35	Screw
36	Cover, Rear
37	Grommet, Wiring
39	Cup, Wiring
40	WPL 2004565
41	Screw, 8-18 x 3/8
42	WP4211117 Whirlpool Refrigerator Connector
43	WP8204624 Whirlpool Bolt
