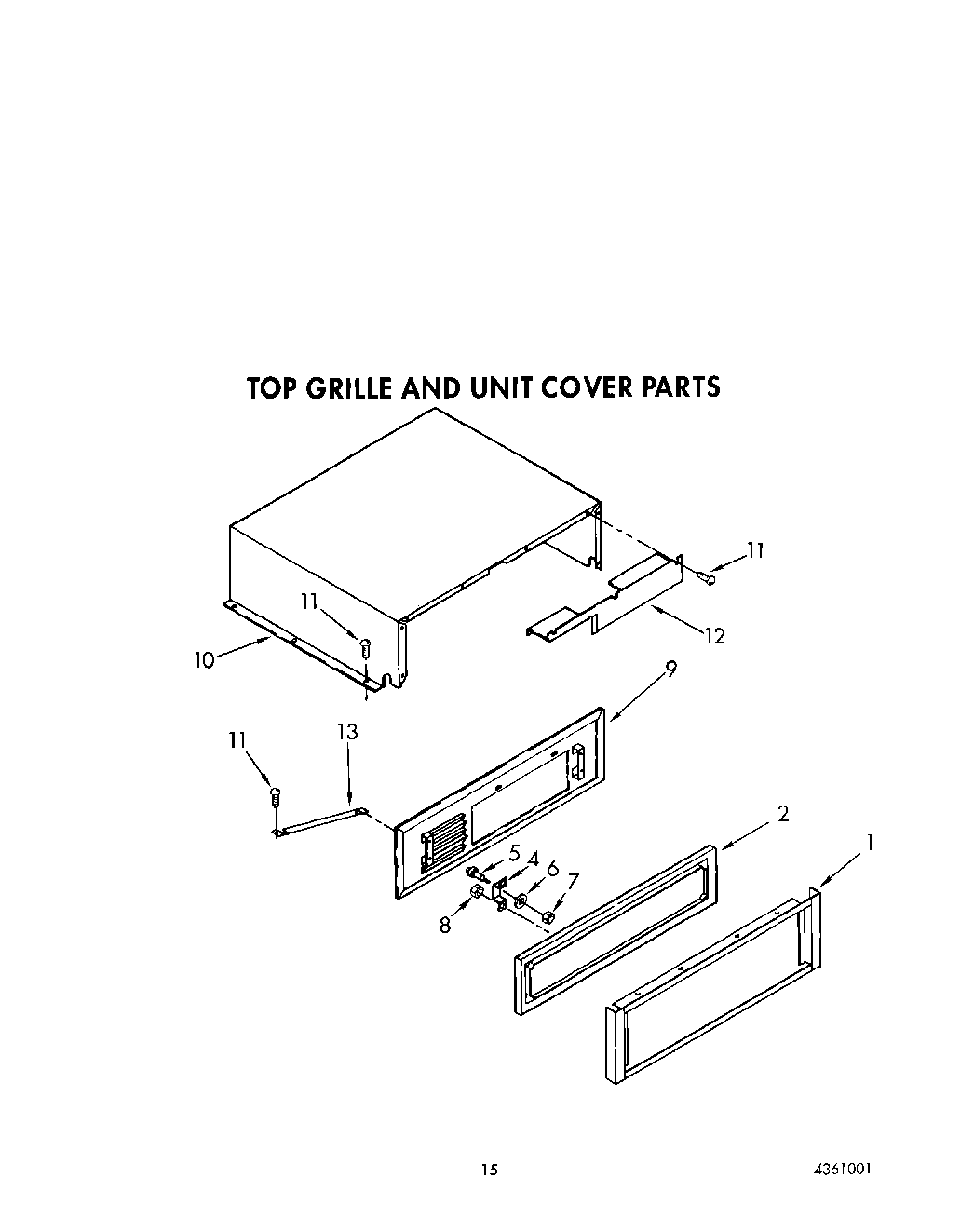

KSSS42MWX00 13 – TOP GRILLE AND UNIT COVER

Written by

Products

Position	Product
1	Grille, Frame Assembly
2	Decorative Panel Assembly
3	Back Up Panel
4	Bracket, Keyhole Mounting (2)
5	Shoulder Screw (4)
6	Spring Washer (4)
7	WP486255 Whirlpool Air Conditioner Nut
8	Nut (8)
9	Top Grille Assembly
10	Cover, Unit
11	W11624204 Whirlpool Screw
12	Cover, Component Assembly
