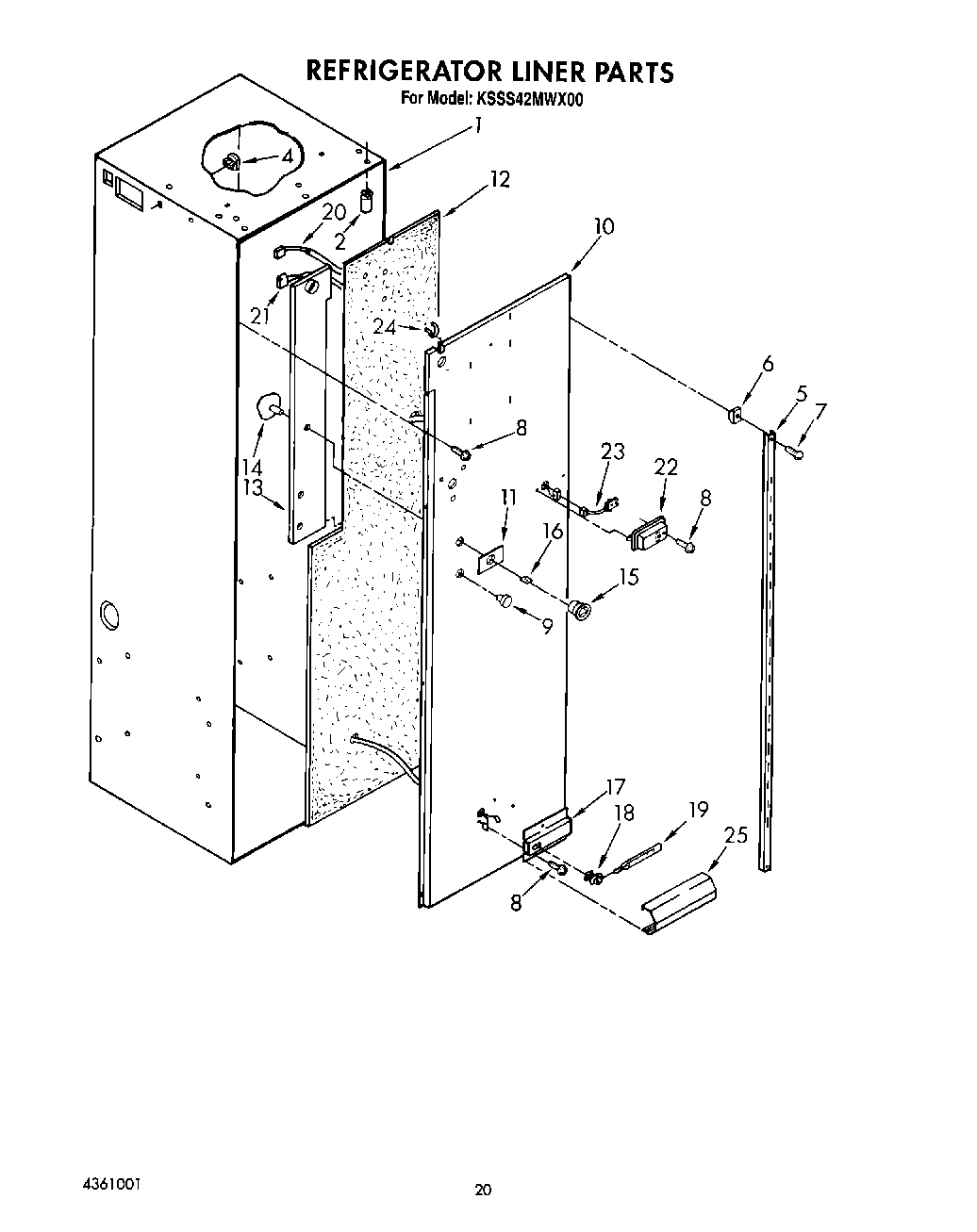

KSSS42MWX00 16 – REFRIGERATOR LINER

KSSS42MWX00 16 – REFRIGERATOR LINER

Written by

in

KSSS42MWX00 16 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Spacer, Control Panel (3)
4Grommet
5Ladder, Shelf (2)
6520965 Whirlpool Refrigerator Support
7Screw, 8 x 1-1/4 (3)
8W11624204 Whirlpool Screw
9Hole Plug
10Cover, Liner Back
11Control Panel Assembly (Meat)
12Insulation, Liner Back Cover
13Duct, Meat Pan
14Damper Control, Meat Pan
15Control Knob, Meat Pan
16Knob, Retainer
17Bracket, Light
18Socket, Light
19WP548049 Whirlpool Refrigerator Light Bulb
20Wiring Harness, Air Baffle
21Wiring Harness, Light Socket
221116793 Whirlpool Refrigerator Cover
23Thermistor
24Flexible Grommet
25Shield, Light
