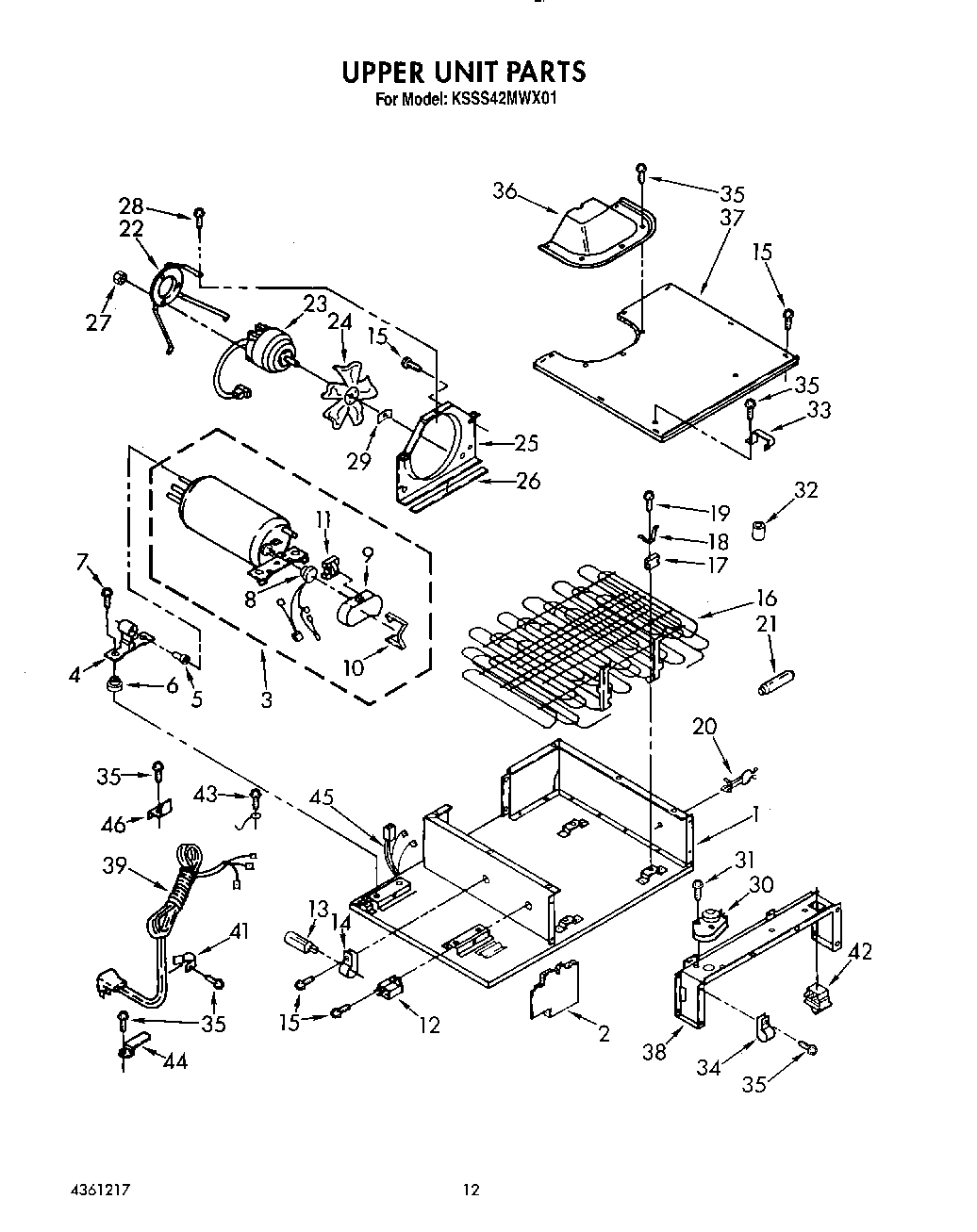

KSSS42MWX01 11 – UPPER UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2000495
	WPL LIT628107
	WPL LIT4361217
	WPL LIT2000936
	WPL LIT1113719
	WPL LIT2000145
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	Compressor (Includes Items 8, 9, 10 & 11) (Also Order 876765 Tube Kit)
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload
9	Terminal Cover
10	Strap, Cover
11	Relay, (For Service Compressor Only)
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Capacitor, Start
14	Tube Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
29	WP486692 Whirlpool Refrigerator Nut
30	Defrost Timer, (10 Hr.)
31	WP3388228 Whirlpool Screw
32	Sleeve, Condenser
33	Clamp, Tube (2)
34	489348 Whirlpool Refrigerator Tube Clamp
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
39	Cord, Service
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	Wiring Harness, Unit Compartment
46	VALVE, ACCESS (5/8“)
46	Black Acrylic Static Cleaner
46	Top Grille Trim Kit (8“)
46	VALVE, ACCESS (1/2“)
46	876764 Whirlpool Refrigerator Primary Valve
46	Stop
46	978026 Whirlpool Refrigerator Primary Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	978030 Whirlpool Refrigerator Valve
46	WP978025 Whirlpool Refrigerator Valve
46	Top Grille Trim Kit (7-1/2“)
