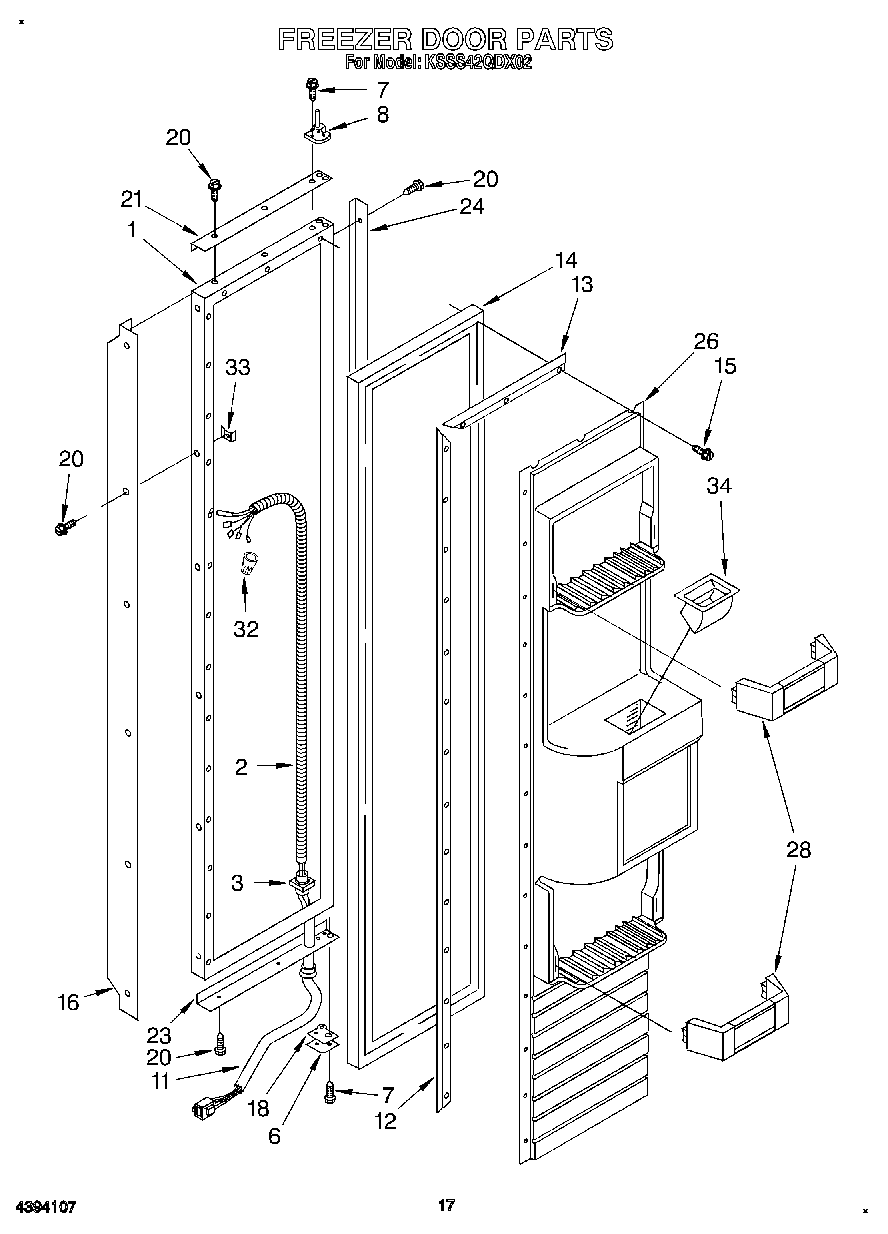

KSSS42QDX02 12 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
2Tube, Wiring
3Retainer, Tube
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188318A Whirlpool Refrigerator Door Gasket
15W11624204 Whirlpool Screw
16Handle, Door
18Door, Spacer Bottom
20WP488729 Whirlpool Refrigerator Door Screw
212005020 Whirlpool Refrigerator Door Trim
23Trim (Bottom)
24Trim (Side)
26Panel, Interior Door
28WP2003128 Whirlpool Shelf Bin
32Conector, Wire
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
