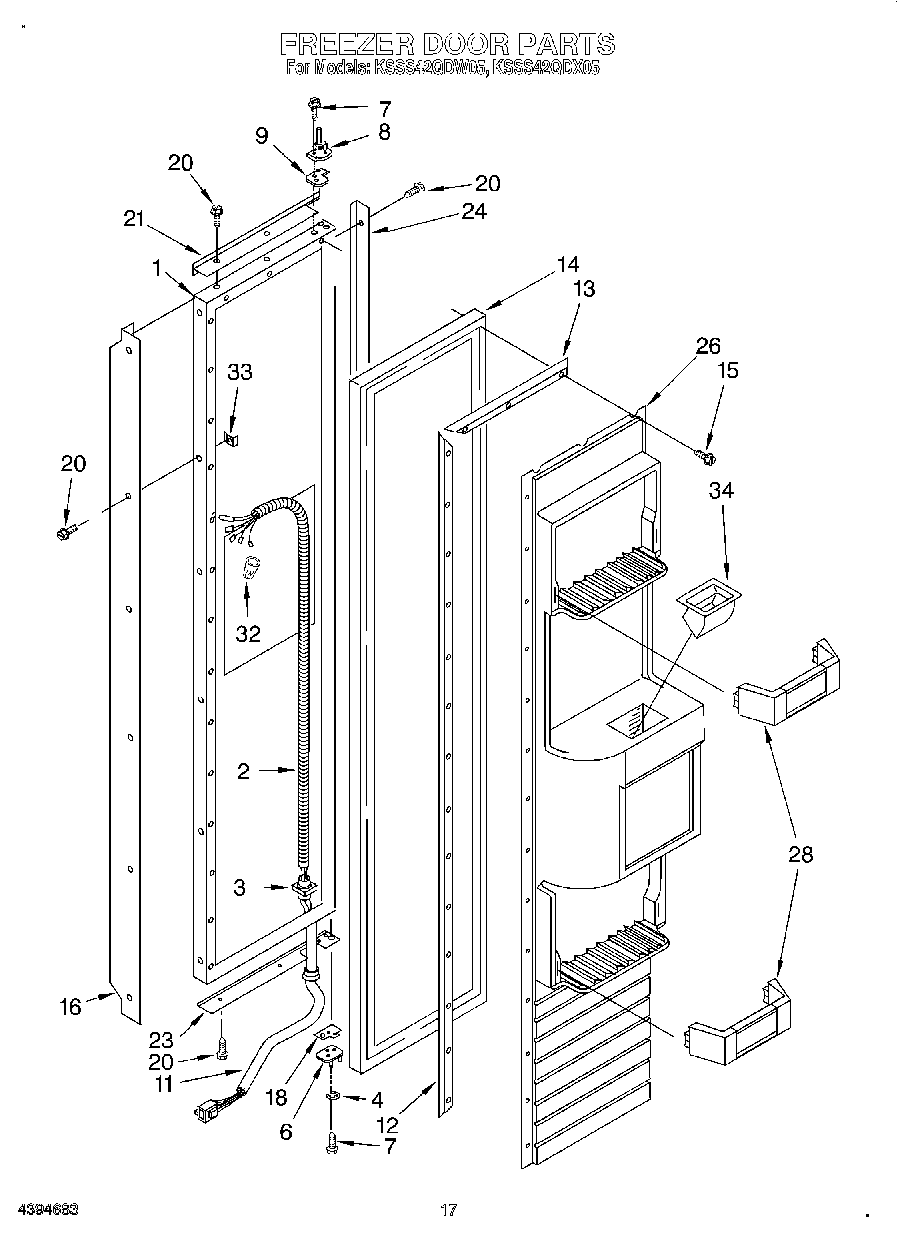

KSSS42QDX05 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Tube, Wiring
3	Retainer, Tube
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge Assembly, Top
9	Spacer-Hinge, Top
11	Wiring Harness, Freezer Door
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188318A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door
16	Handle, Door (White)
18	Door, Spacer
20	Screw (White)
20	WP488729 Whirlpool Refrigerator Door Screw
21	2005020 Whirlpool Refrigerator Door Trim
21	Trim (Top) (White)
23	Trim (Bottom)
23	Trim (Bottom) (White)
24	Trim (Side)
24	Trim (Side) (White)
26	Panel, Interior Door
28	WP2003128 Whirlpool Shelf Bin
32	Conector, Wire
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
