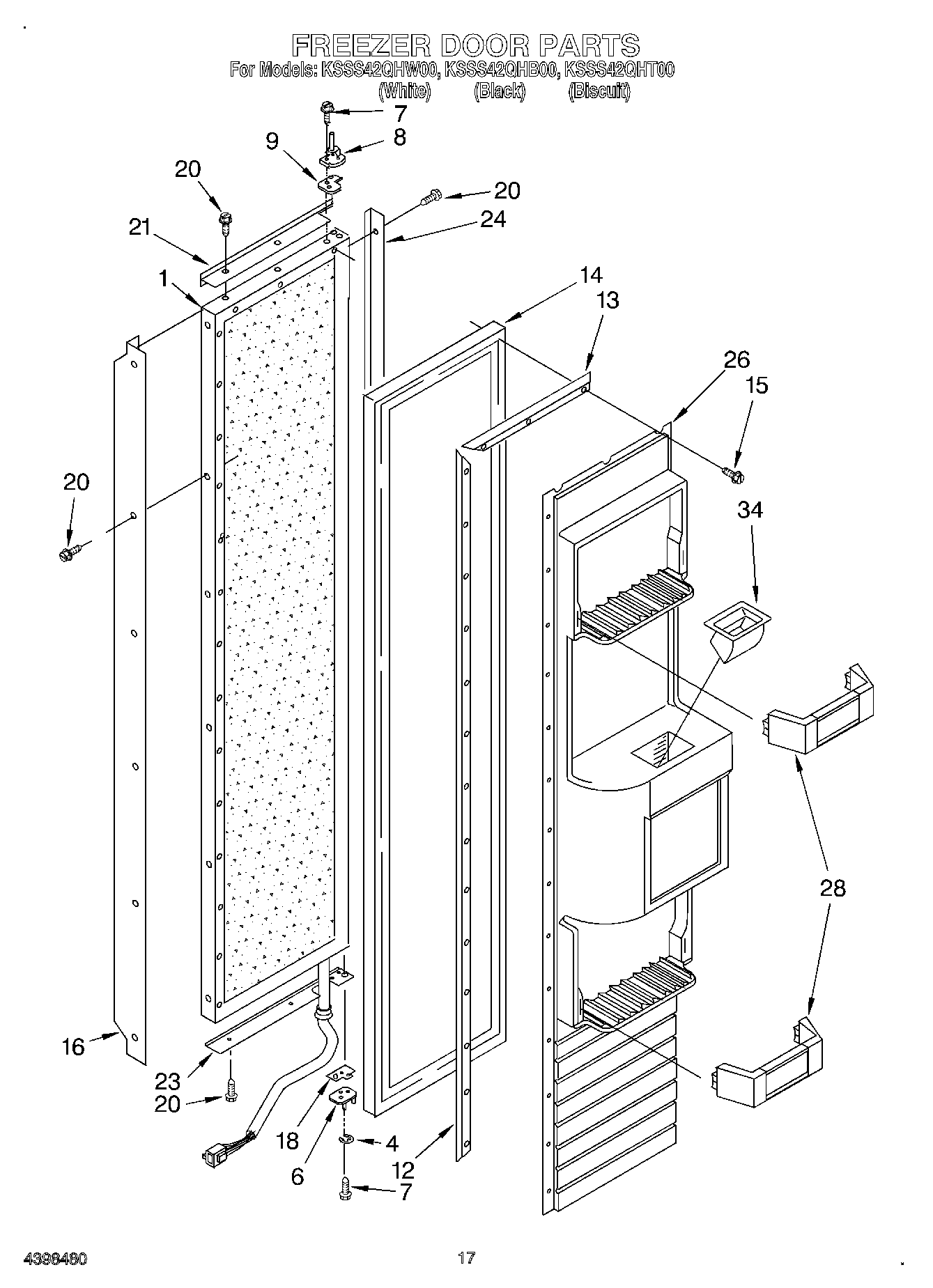

KSSS42QHB00 12 – FREEZER DOOR

KSSS42QHB00 12 – FREEZER DOOR

Written by

in

KSSS42QHB00 12 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (White)
1Freezer Door Panel (Includes Insulation) (Black)
1Freezer Door Panel (Includes Insulation) (Biscuit)
4Retaining Ring, Door-Closure
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer-Hinge, Top
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188318A Whirlpool Refrigerator Door Gasket
15W11624204 Whirlpool Screw
16Handle, Door (Biscuit)
16Handle, Door (White)
16Handle, Door (Black)
18Door, Spacer
20Screw (White)
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top) (Black)
21Trim (Top) (Biscuit)
21Trim (Top) (White)
23Trim (Bottom) (Biscuit)
23Trim (Bottom) (White)
23Trim (Bottom) (Black)
24Trim (Side) (Black)
24Trim (Side) (Biscuit)
24Trim (Side) (White)
26Panel, Interior Door
28WP2003128 Whirlpool Shelf Bin
34Ice Chute
