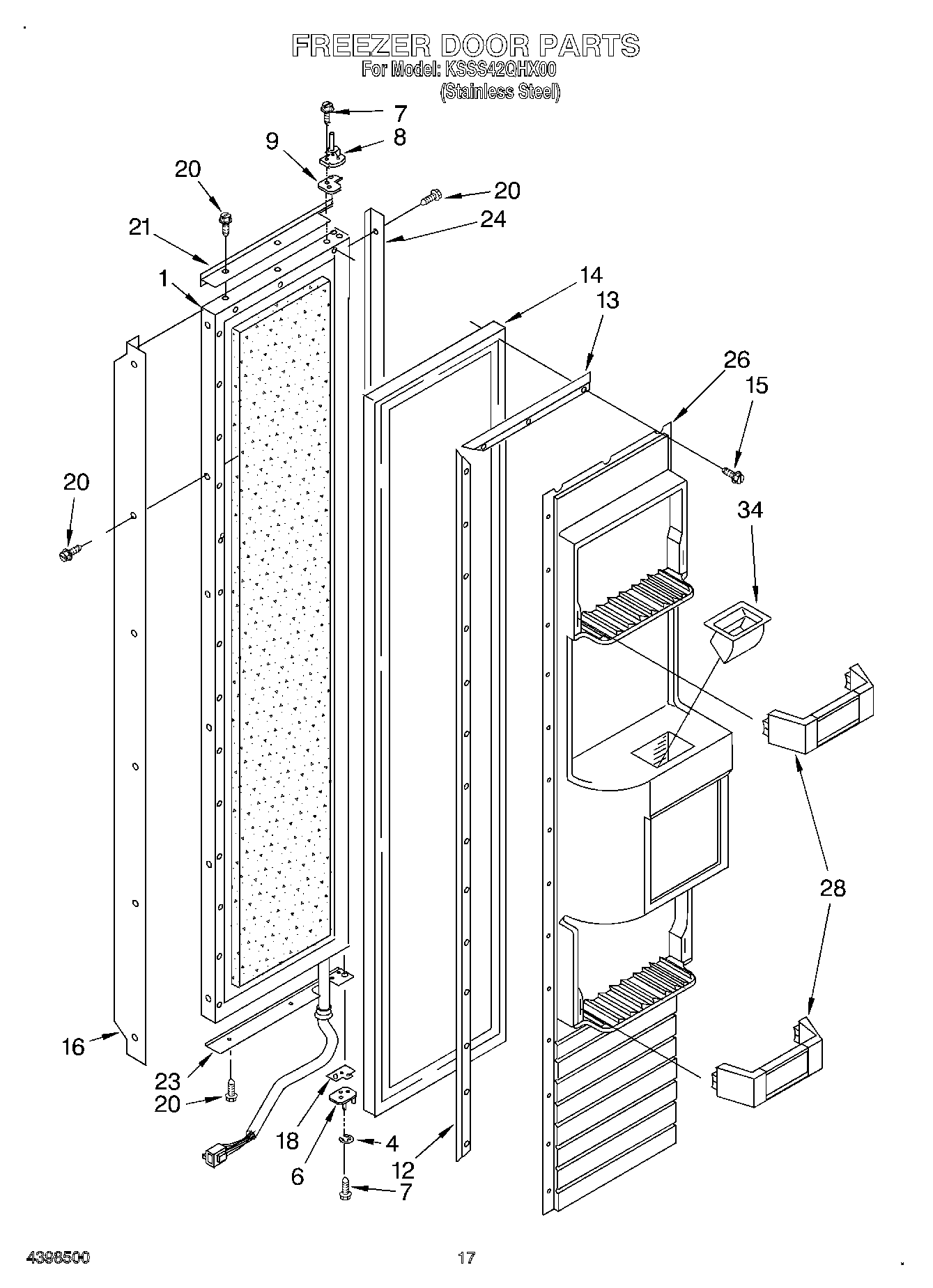

KSSS42QHX00 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (Black)
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188318A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (Etched Aluminum)
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
21	2005020 Whirlpool Refrigerator Door Trim
23	Trim (Bottom)
24	Trim (Side) (Etched Aluminum)
26	Panel, Interior Door
28	WP2003128 Whirlpool Shelf Bin
34	Ice Chute
