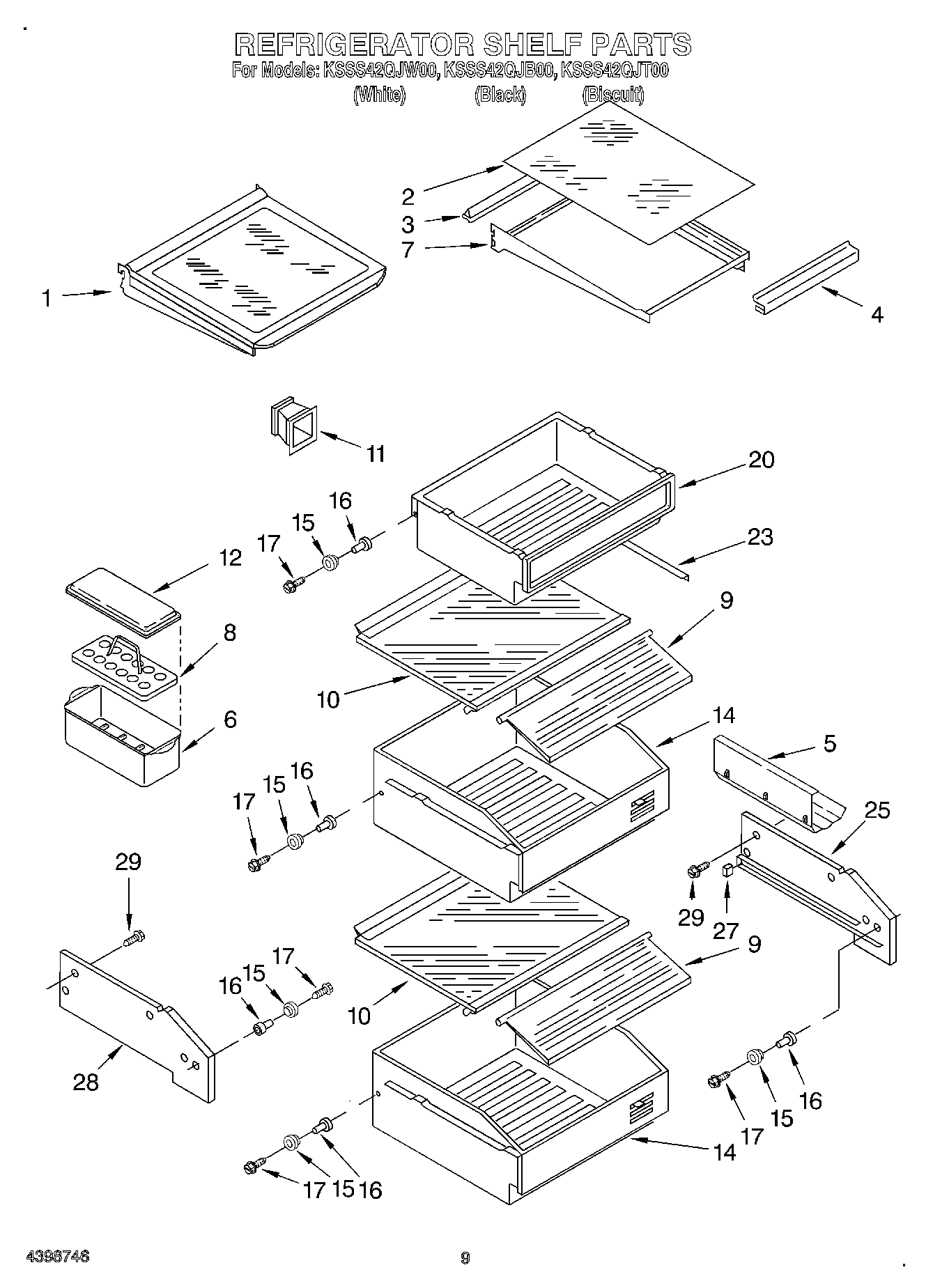

KSSS42QJW00 07 – REFRIGERATOR SHELF

Products

Position	Product
1	Frame, Shelf
2	Glass, Shelf
3	Reflector, Shelf
4	Gasket, Glass (2)
5	W10777924 Whirlpool Refrigerator Wine Rack
6	W10136387A Whirlpool Refrigerator Egg Container
7	Frame, Assembly Meat Pan
8	WP2177817 Whirlpool Refrigerator Egg Container
9	WP1113894 Whirlpool Refrigerator Cover
10	Glass, Crisper (Includes No.9)
11	Meat Pan, Connector
12	Cover
14	Crisper Pan (2)
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
20	Meat Pan
23	Retainer, Glass
25	Crisper Spacer, Right Side (2)
27	Roller Stop
28	Crisper Spacer, Left Side (2)
29	W11624204 Whirlpool Screw
