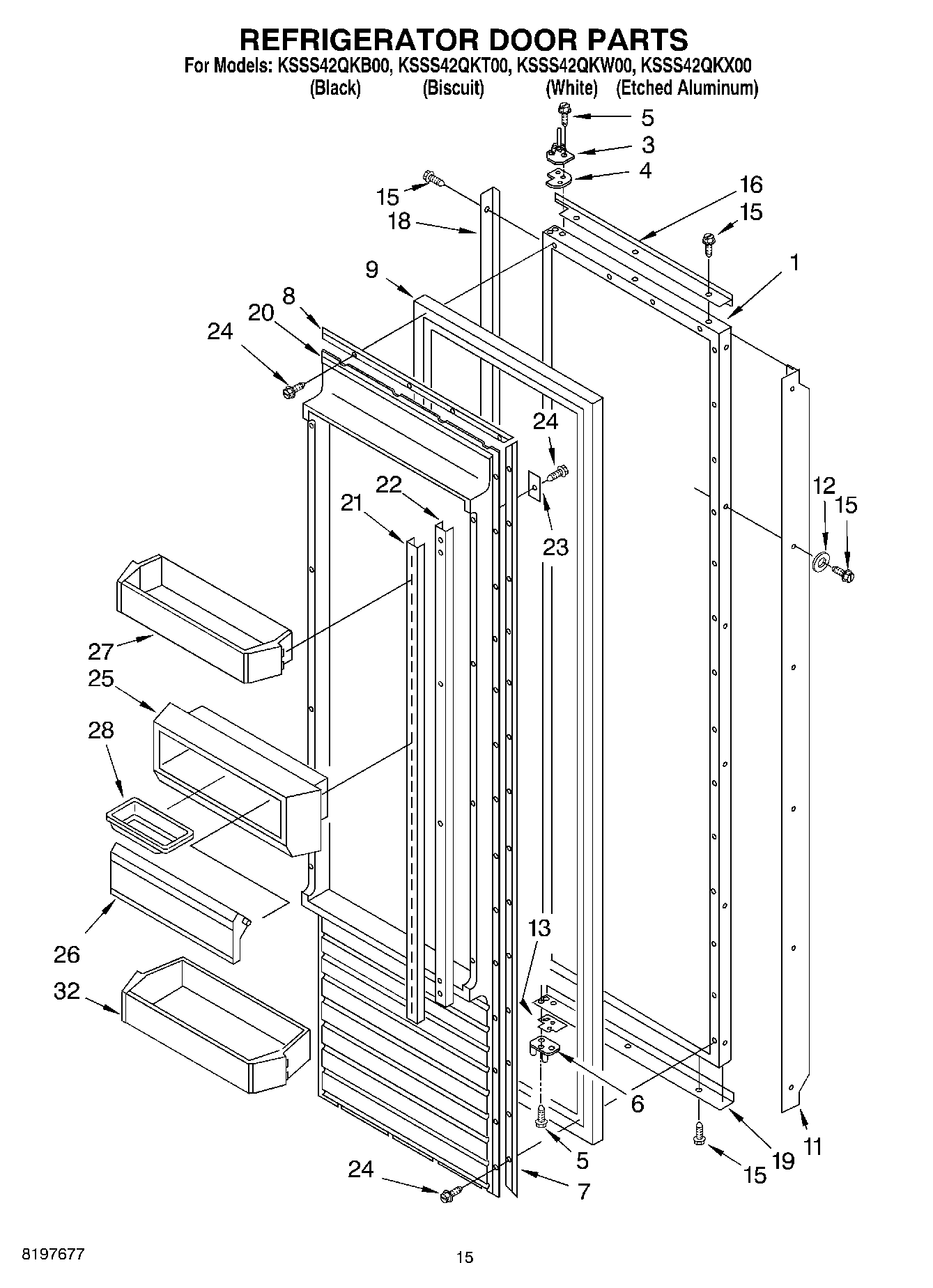

KSSS42QKT00 10 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation)
3	Hinge, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
11	Handle, Door (Biscuit)
11	Handle, Door (White)
11	Handle, Door (Black)
11	Handle, Door (Etched Aluminum)
12	Washer
13	Door, Spacer
15	Screw 8-15 x 1/2 (Biscuit)
15	Screw 8-15 x 1/2 (White)
15	WP8281250 Whirlpool Refrigerator Screw
15	W10851443 Whirlpool Refrigerator Screw
16	Trim (Top) (Etched Aluminum)
16	Trim (Top) (White)
16	Trim (Top) (Biscuit)
16	Trim (Top) (Black)
18	Trim, Side (Black)
18	Trim (Side) (Biscuit)
18	Trim, Side (Etched Aluminum)
18	Trim (Side) (White)
19	Trim (Bottom) (Etched Aluminum)
19	Trim (Bottom) (White)
19	Trim (Bottom) (Black)
19	Trim (Bottom) (Biscuit)
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Bin, Utility
26	Door, Utility Bin
27	Door Shelf (3)
28	Butter Tray
32	Shelf, Gallon Door
