KSSS42QKT01 02 – CABINET TRIM

KSSS42QKT01 02 – CABINET TRIM

Written by

in

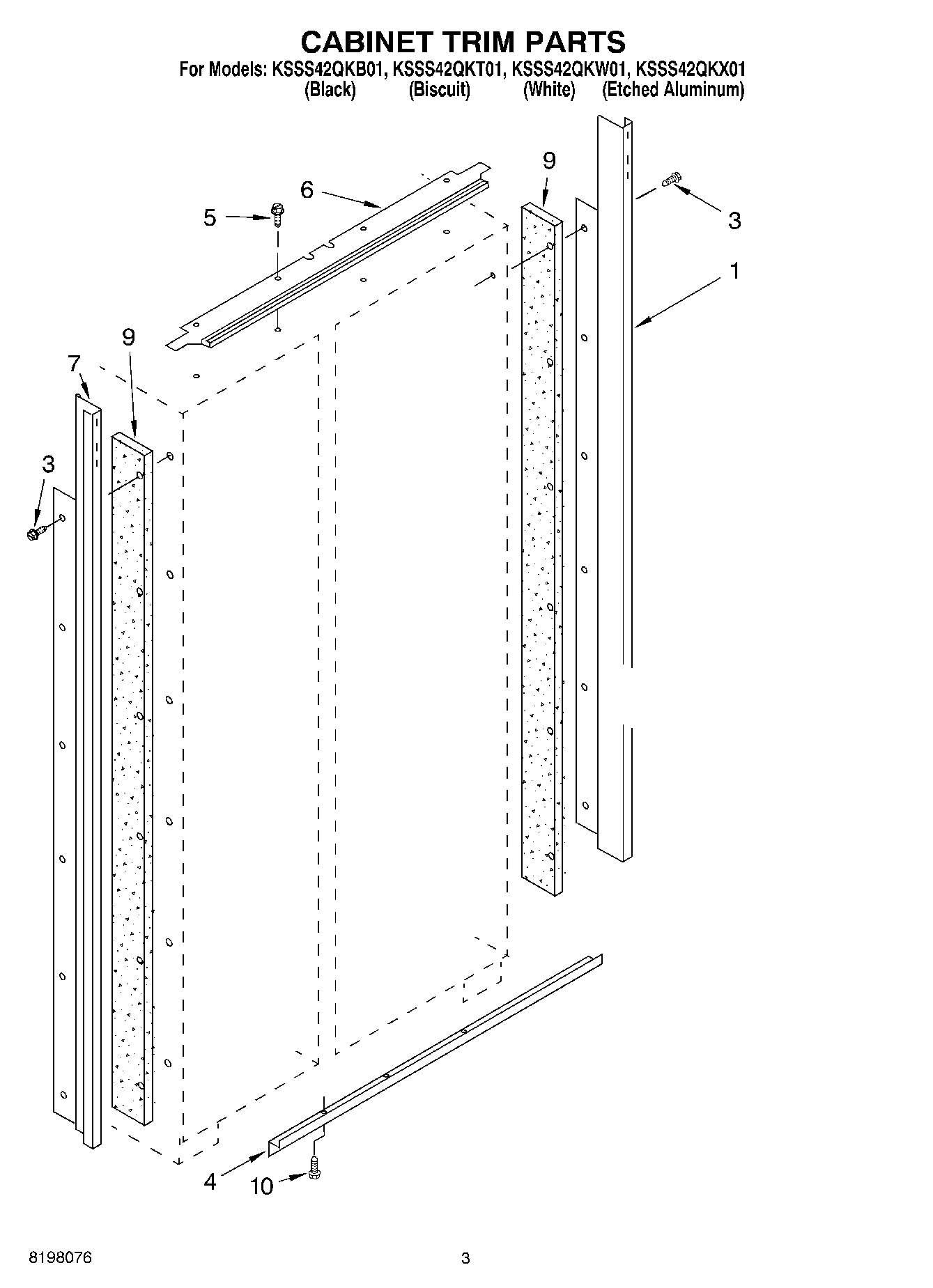

KSSS42QKT01 02 – CABINET TRIM

Products

PositionProduct
1Cabinet, Trim Right Side (Etched Aluminum)
1Cabinet, Trim (Right Side) (Black)
1Cabinet, Trim (Right Side) (Biscuit)
1Cabinet, Trim (Right Side) (White)
3W10851443 Whirlpool Refrigerator Screw
3WP8281250 Whirlpool Refrigerator Screw
3Screw 8-15 x 1/2 (Biscuit)
3Screw 8-15 x 1/2 (White)
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Cabinet Trim (Left Side) (Etched Aluminum)
7Cabinet Trim (Left Side) (Black)
7Cabinet Trim (Left Side) (Biscuit)
7Cabinet Trim (Left Side) (White)
9Seal, Side Trim
10WP489464 Whirlpool Refrigerator Screw
