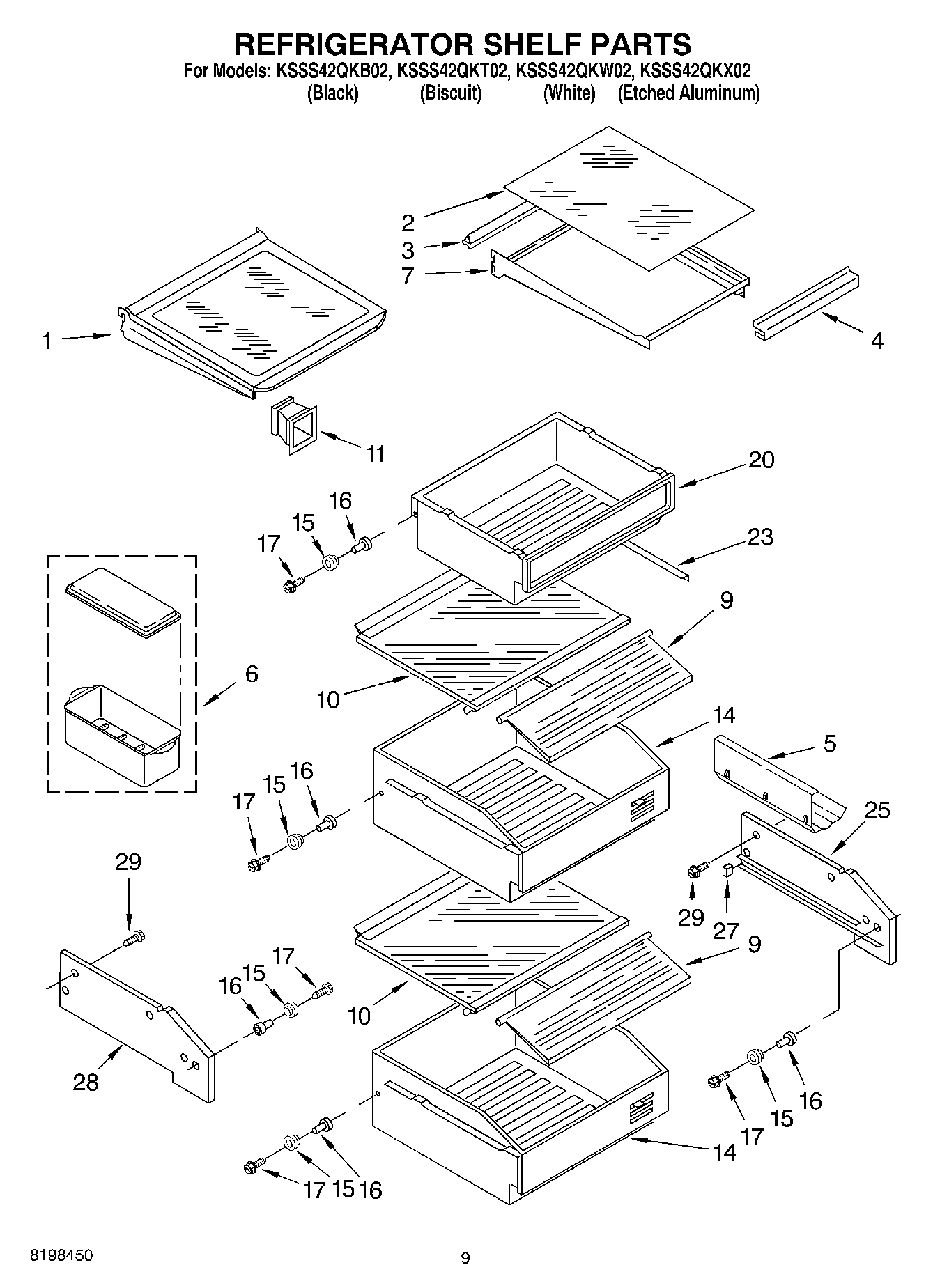

KSSS42QKT02 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame, Shelf
2Glass, Shelf
3Reflector, Shelf
4Gasket, Glass (2)
5W10777924 Whirlpool Refrigerator Wine Rack
6Egg Bin Assembly
7Frame, Assembly Meat Pan
9WP1113894 Whirlpool Refrigerator Cover
10Glass, Crisper (Includes No.9)
11Meat Pan, Connector
14Crisper Pan (2)
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
20Meat Pan
23Retainer, Glass
25Crisper Spacer, Right Side (2)
27Roller Stop
28Crisper Spacer, Left Side (2)
29W11624204 Whirlpool Screw
