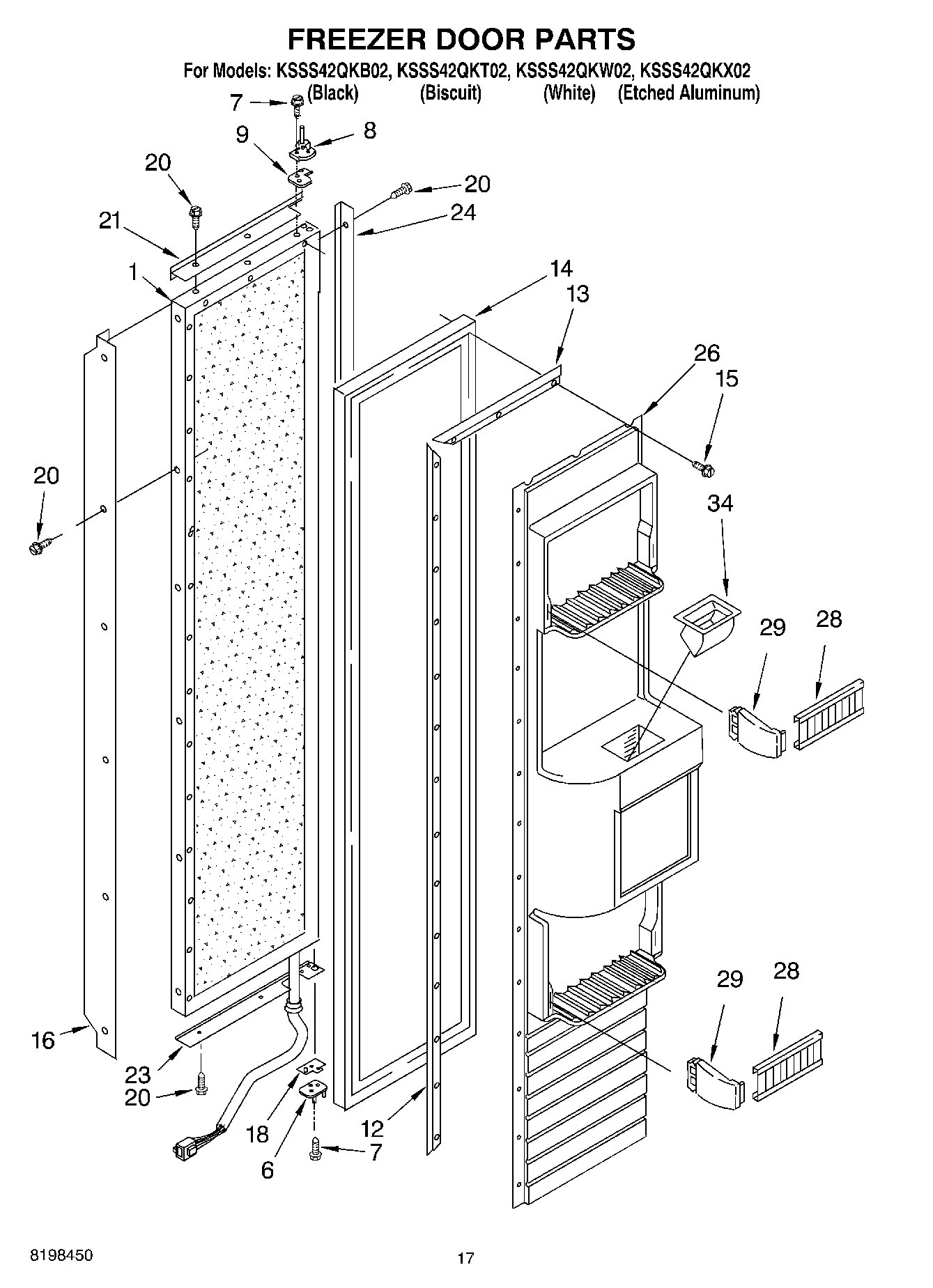

KSSS42QKT02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (White)
1	Freezer Door Panel (Includes Insulation) (Biscuit)
1	Freezer Door Panel (Includes Insulation)
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188496A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (Biscuit)
16	Handle, Door (Black)
16	Handle, Door (Etched Aluminum)
16	Handle, Door (White)
18	Door Spacer, Bottom
20	Screw 8-15 x 1/2 (White)
20	WP8281250 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (Biscuit)
20	W10851443 Whirlpool Refrigerator Screw
21	Trim (Top) (Biscuit)
21	Trim (Top) (Black)
21	Trim (Top) (White)
21	2005020 Whirlpool Refrigerator Door Trim
23	Trim (Bottom) (White)
23	Trim (Bottom) (Biscuit)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Etched Aluminum)
24	Trim (Side) (Black)
24	Trim (Side) (Biscuit)
24	Trim (Side) (White)
24	Trim (Side) (Etched Aluminum)
26	Panel, Interior Door
28	Shelf Bin
29	Trim, End Cap (Right Side)
29	Trim, Endcap (Left Side)
34	Ice Chute
