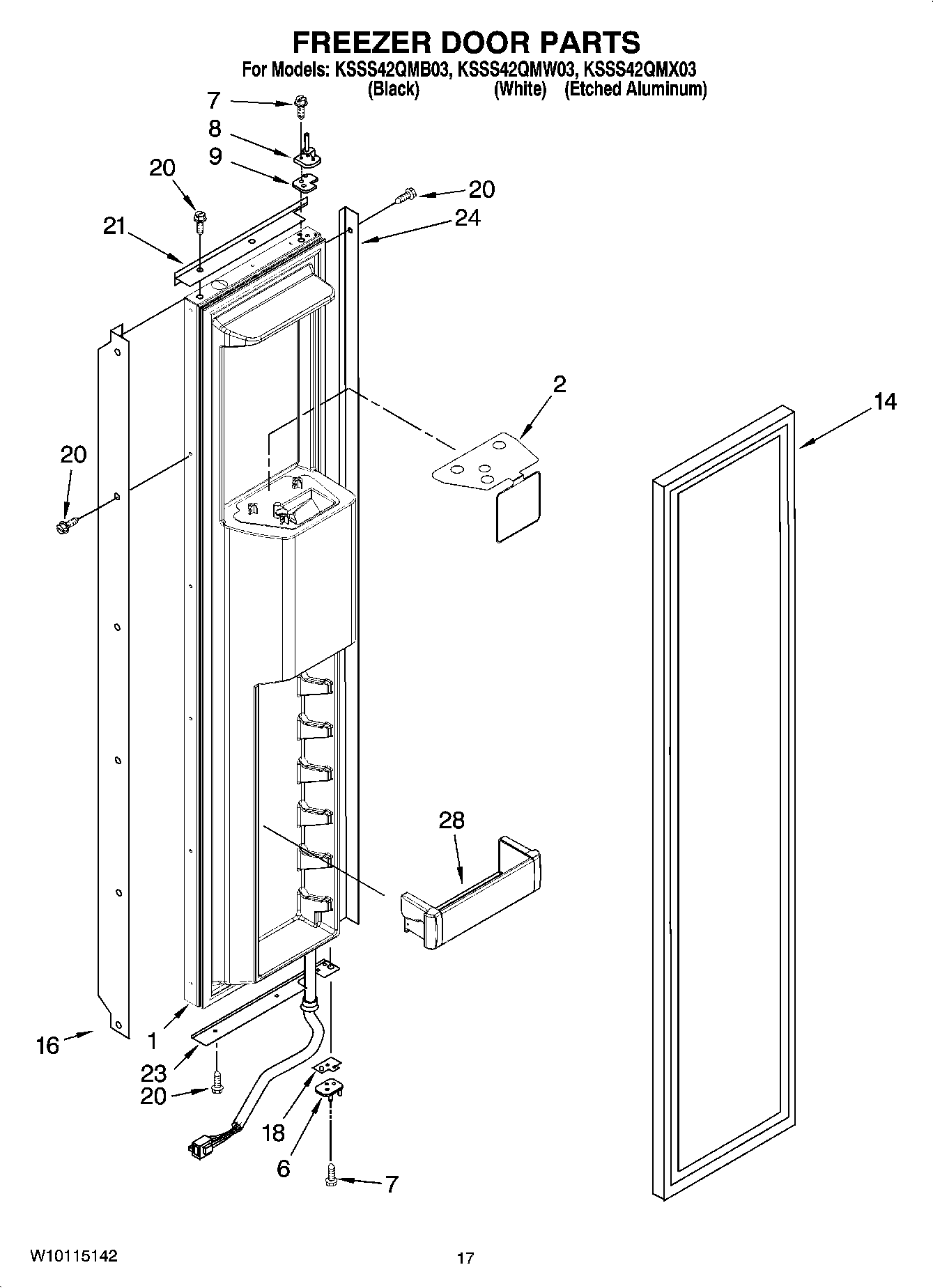

KSSS42QMB03 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (White)
1	Freezer Door Panel (Includes Insulation) (Black)
2	Safety Barrier
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
14	WP2266905 Whirlpool Refrigerator Door Gasket
16	Handle, Door (White)
16	Handle, Door (Black)
16	Handle, Door (Etched Aluminum)
18	Door Spacer, Bottom
20	W10851443 Whirlpool Refrigerator Screw
20	WP8281250 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (White)
21	2005020 Whirlpool Refrigerator Door Trim
21	Trim (Top) (White)
21	Trim (Top) (Black)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (White)
24	Trim (Side) (Etched Aluminum)
24	Trim (Side) (White)
24	Trim (Side) (Black)
28	W10323602 Whirlpool Refrigerator Cantilever Bin
