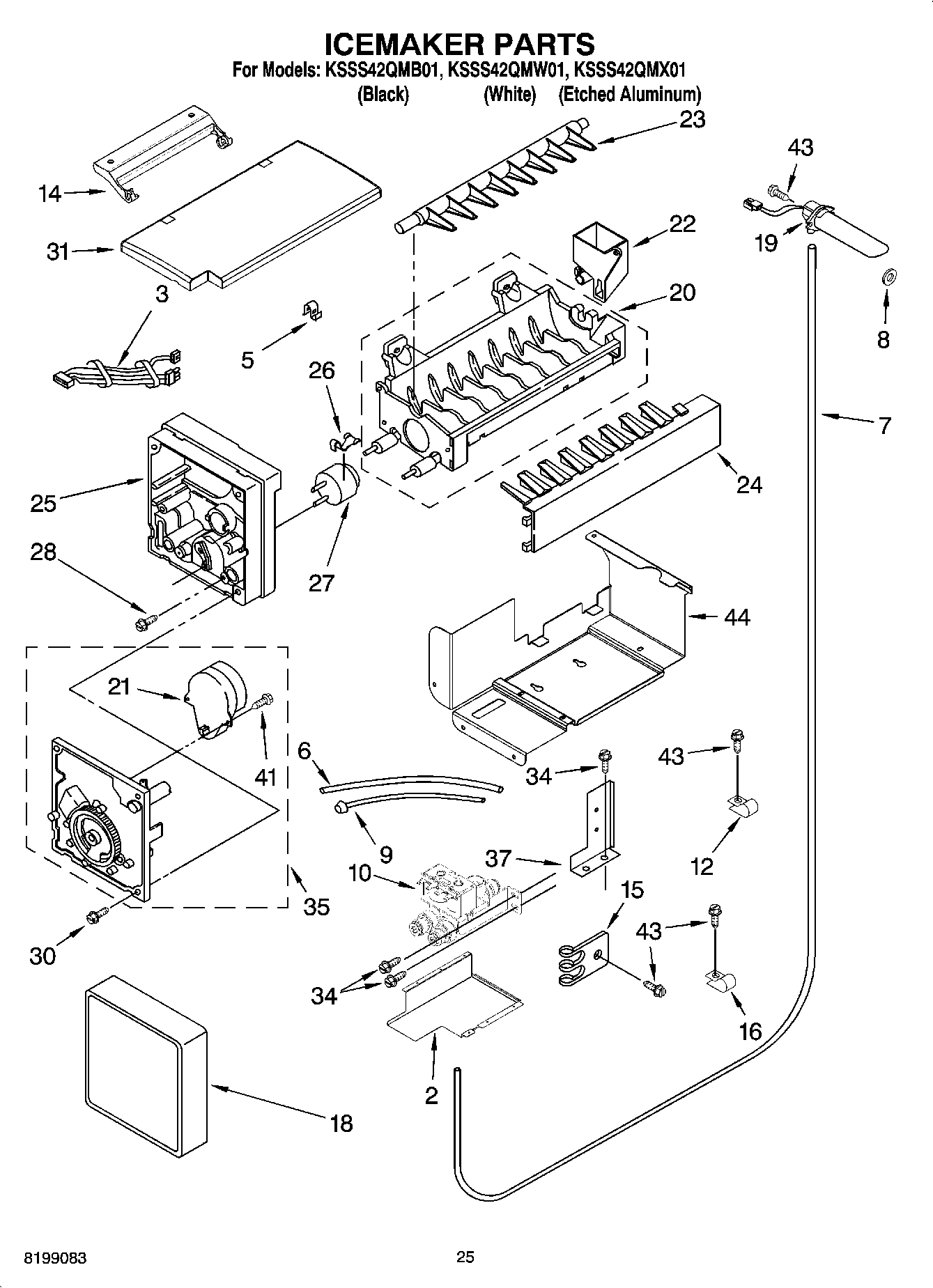

KSSS42QMW01 15 – ICEMAKER PARTS

Products

PositionProduct
2Cover, Bottom
3Wire Assembly, Icemaker
5WP628379 Whirlpool Refrigerator Clip
6Tube, Filter Inlet
7Water Inlet Tube Assembly
8Seal Gasket
9W11533506 Whirlpool Refrigerator Water Tube
10WP2188786 Whirlpool Refrigerator Inlet Valve
12W10833902 Whirlpool Refrigerator Clamp
14WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15WP488366 Whirlpool Refrigerator Clamp
16Clamp, Tube
18Cover
19W10460127 Whirlpool Refrigerator Inlet Tube
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24W10297244 Whirlpool Refrigerator Arm Strip
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31WPW10504753 Whirlpool Refrigerator Ice Door
34WP1163283 Whirlpool Air Conditioner Screw
37Water Valve Mounting Bracket
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
442252228 Whirlpool Refrigerator Bracket
100WPW10277448 Whirlpool Icemaker Assembly
100Front Panel Kit (White)
100Front Panel Kit (Black)
100Ice Container Assembly Black Acrylic Static Cleaner Part No. 978849
100Front Panel Kit (Stainless Steel)
100FOLLOWING PARTS NOT ILLUSTRATED
100(Optional Parts Only)
