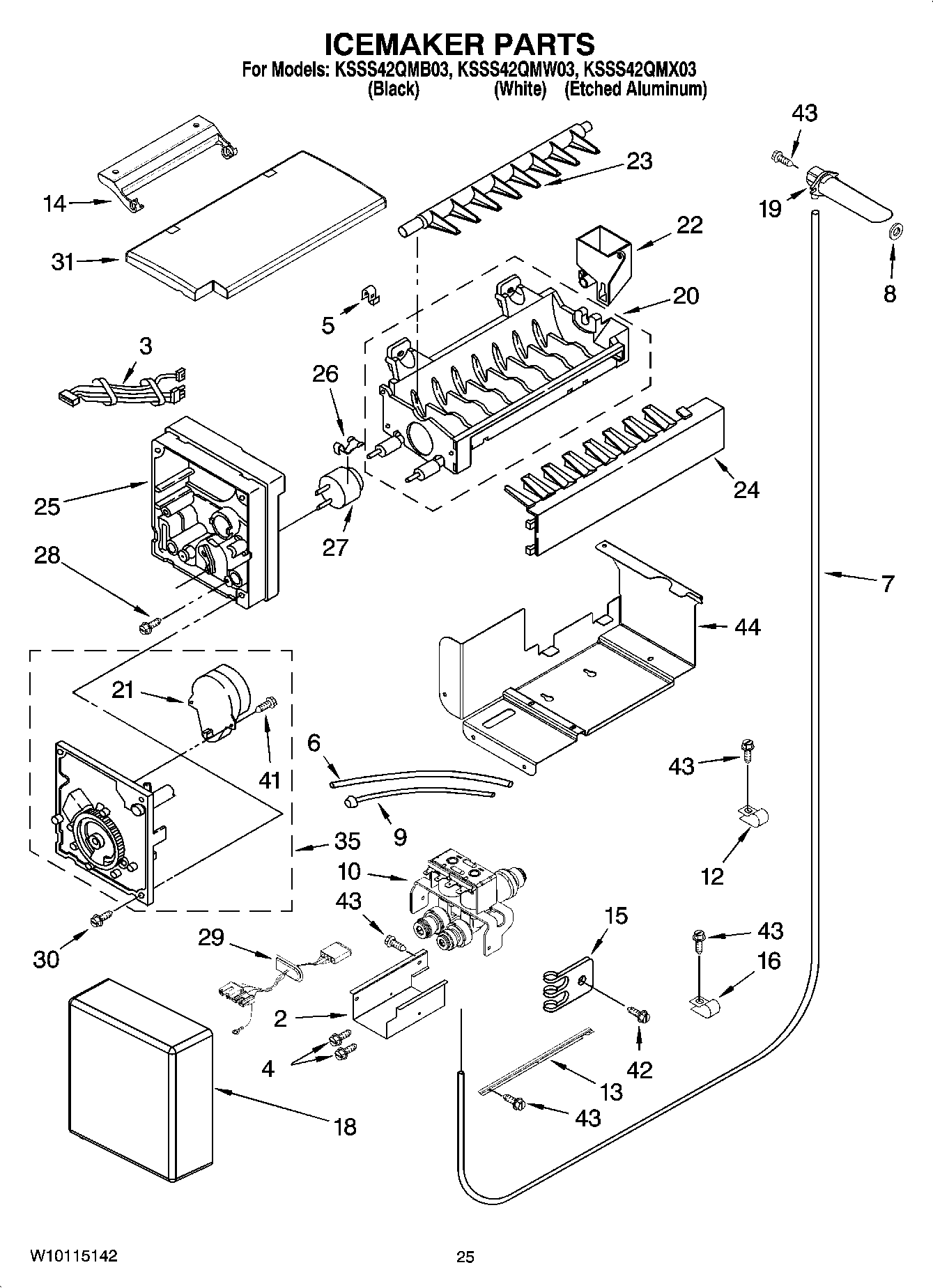

KSSS42QMX03 15 – ICEMAKER PARTS

Products

Position	Product
2	Shield, Valve
3	Wire Assembly, Icemaker
4	WP489128 Whirlpool Refrigerator Screw
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Water Tube
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WP2317883 Whirlpool Water Inlet Valve
12	W10833902 Whirlpool Refrigerator Clamp
13	Support, Valve
14	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15	WP488366 Whirlpool Refrigerator Clamp
16	488946 Whirlpool Air Conditioner Clamp
18	Cover
19	W10460127 Whirlpool Refrigerator Inlet Tube
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Motor (Not Serviceable)
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	Wire Assembly, (Water Valve)
30	WP681249 Whirlpool Screw Assembly
31	WPW10504753 Whirlpool Refrigerator Ice Door
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
41	489136 Whirlpool Refrigerator Screw
42	WP489464 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
44	2252228 Whirlpool Refrigerator Bracket
100	Ice Container Assembly
100	Black Acrylic Static Cleaner
100	Front Panel Kit (Stainless Steel)
100	Front Panel Kit (Black)
100	Front Panel Kit (White)
100	WPW10277448 Whirlpool Icemaker Assembly
100	Following Parts Not Illustrated (Optional Parts Only)
