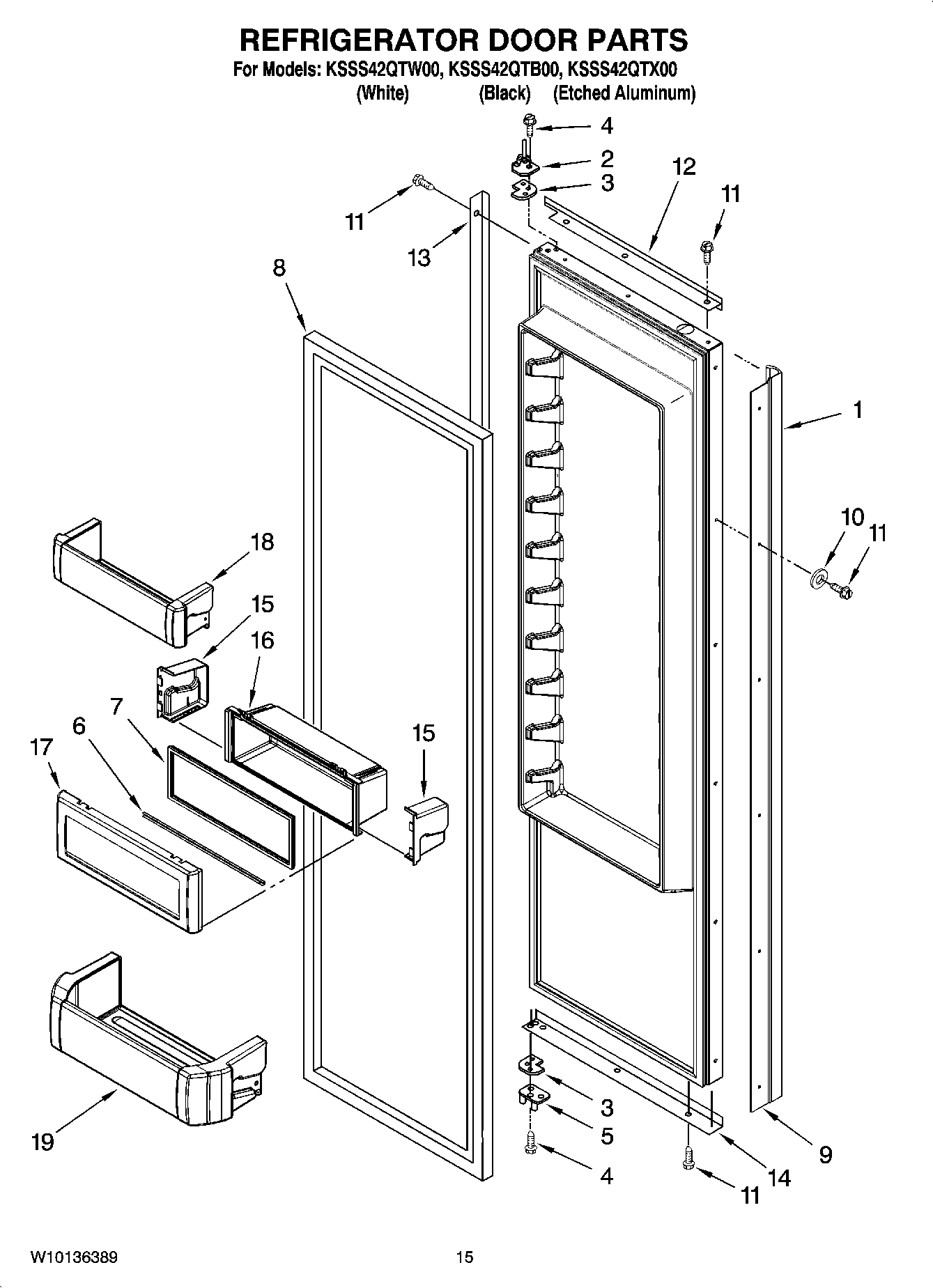

KSSS42QTB00 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	W11724512 Whirlpool Door Hinge
3	W11673500 Whirlpool Door Hinge
4	W11474472 Whirlpool Screw
5	2302878 Whirlpool Refrigerator Door Hinge
6	W11448696 Whirlpool Refrigerator Bin
7	Gasket, Utility Bin
8	WP2266902 Whirlpool Refrigerator Door Gasket
9	Handle, Door (White)
9	Handle, Door (Black)
9	Handle, Door
10	Washer
11	Screw 8-15 x 1/2 (White)
12	Trim (Top) (Black)
12	Trim (Top) (White)
12	Trim-Door, Top
13	Trim (Side) (White)
13	Trim-Door, Side
13	Trim, Side (Black)
14	Trim (Bottom) (White)
14	Trim-Door, Bottom
14	Trim (Bottom) (Black)
15	WPW10323173 Whirlpool Refrigerator Retainer End Cap
15	WPW10323172 Whirlpool Refrigerator Retainer End Cap
16	W10323042 Whirlpool Cantilever Bin
17	W11553221 Whirlpool Refrigerator Door Compressor
18	W10323599 Whirlpool Refrigerator Cantilever Bin
19	W10323747 Whirlpool Refrigerator Cantilever Bin
