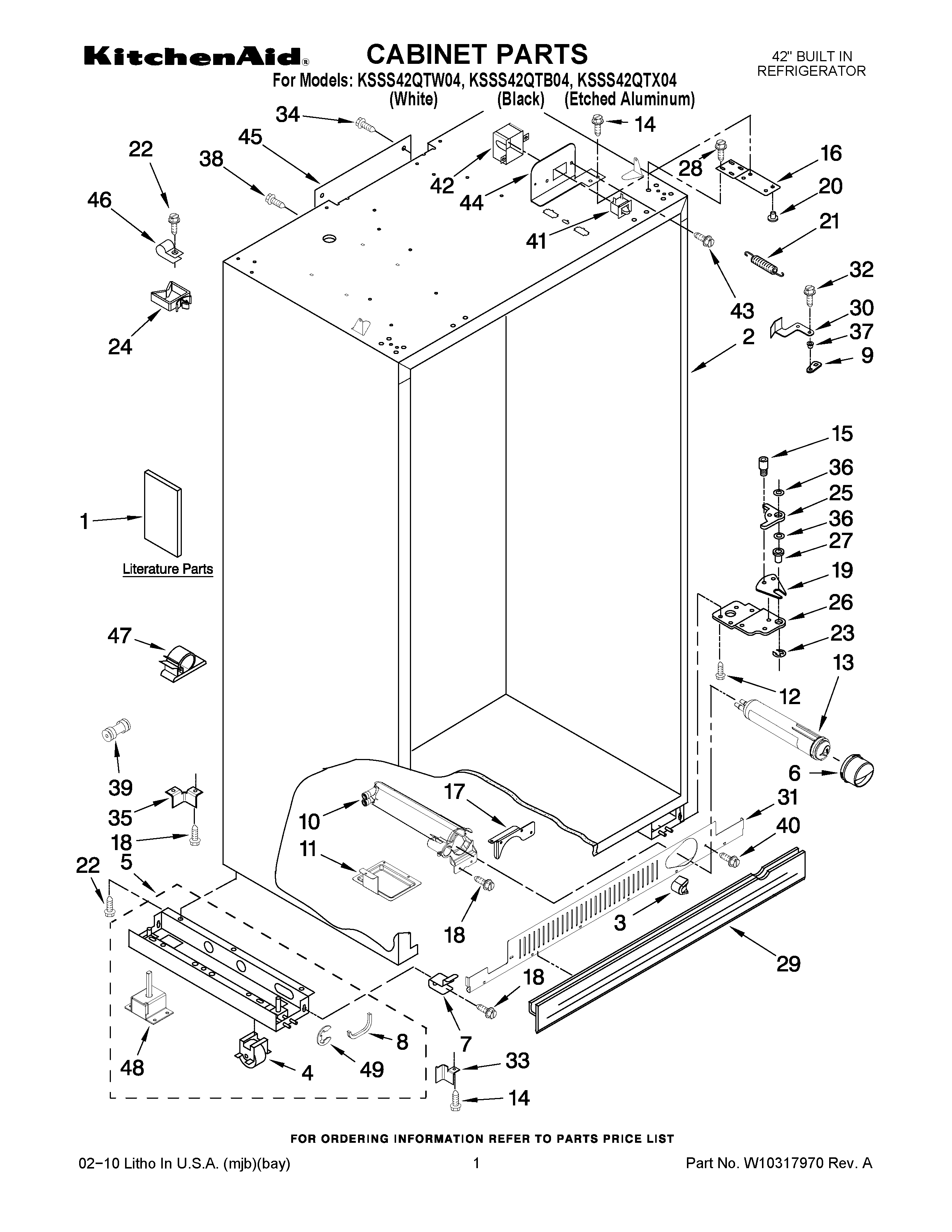

KSSS42QTB04 01 – CABINET PARTS

KSSS42QTB04 01 – CABINET PARTS

Written by

in

KSSS42QTB04 01 – CABINET PARTS

Products

Position	Product
1	MAIN CONTROL SERVICE SHEET
1	INSTALLATION INSTRUCTIONS
1	Service & Wiring Sheet
1	Use & Care Guide
1	ENERGY GUIDE
1	Icemaker and Ingredient Care Center Service Sheet
2	CABINET (NOT A SERVICEABLE PART)
3	WP2260503B Whirlpool Refrigerator Button
4	4388239 Whirlpool Refrigerator Primary Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	WP2260518B Whirlpool Water Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	2307584 Whirlpool Refrigerator Grommet
9	Cam-Closer, Door
10	WPW10121140 Whirlpool Refrigerator Housing
11	2318189 Whirlpool Refrigerator Drip Pan
12	Screw
13	FILTER 3-SINGLE TEAL
14	WP489399 Whirlpool Refrigerator Screw
15	SCREW
16	2257644 Whirlpool Refrigerator Door Hinge
17	W10674648 Whirlpool Refrigerator Bracket
18	WP489464 Whirlpool Refrigerator Screw
19	WP2004994 Whirlpool Refrigerator Hinge Bushing
20	Bushing
21	WP2004517 Whirlpool Refrigerator Spring
22	W11624204 Whirlpool Screw
23	WP489236 Whirlpool Refrigerator Ring
24	CLIP, TUBE
25	Gap, Cover Assembly (Bottom)
26	W10527053 Whirlpool Refrigerator Door Hinge
26	WP2006780 Whirlpool Refrigerator Door Hinge
27	WP2302876 Whirlpool Refrigerator Hinge Bushing
28	W11189635 Whirlpool Refrigerator Screw
29	Skirt-Grille, Bottom (White)
29	SKIRT, GRILLE (BOTTOM)
30	W10847927 Whirlpool Refrigerator Extension
30	W11298172 Whirlpool Refrigerator Extension
31	Grille Bottom, Front (White)
31	Grille Bottom, Front (Black)
32	Screw
33	2006556 Whirlpool Refrigerator Bracket
33	2006616 Whirlpool Refrigerator Bracket
34	WP489069 Whirlpool Compactor Screw
35	2006617 Whirlpool Refrigerator Bracket
36	WP2006346 Whirlpool Refrigerator Washer
37	WP2316859 Whirlpool Refrigerator Bushing
38	WP1163283 Whirlpool Air Conditioner Screw
39	WP2300868 Whirlpool Refrigerator Fitting
39	WP4373559 Whirlpool Fitting
40	WP8281163 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
41	W11457217 Whirlpool Refrigerator Rocker Switch Combination
42	2215938 Whirlpool Refrigerator Switch Cover
43	WP965173 Whirlpool Dishwasher Screw
44	2221097 Whirlpool Refrigerator Bracket
44	2221096 Whirlpool Refrigerator Bracket
45	2215612 Whirlpool Refrigerator Duct Cover
46	W10833902 Whirlpool Refrigerator Clamp
47	Clamp
48	2005032 Whirlpool Refrigerator Leveler
49	2006841 Whirlpool Ring
